Hanna Instruments HI 983302 Instruction Manual

Instruction Manual
&
(HI 983302) (HI 983301)
On-line, Waterproof
EC-TDS meter with Alarm
These Instruments are in
http://www.hannainst.com Compliance with the CE Directives
W A R R A N T Y W A R R A N T Y W A R R A N T Y
W A R R A N T Y W A R R A N T Y
EC and TDS are warranted for two years against
defects in workmanship and materials when used for their intended
purpose and maintained according to instructions. The probes are
warranted for a period of one year. This warranty is limited to
repair or replacement free of charge.
Damages due to accident, misuse, tampering or lack of prescribed
maintenance are not covered.
If service is required, contact the dealer from whom you purchased the
instrument. If under warranty, report the model number, date of pur-
chase, serial number and the nature of the failure. If the repair is not
covered by the warranty, you will be notified of the charges incurred. If
the instrument is to be returned to Hanna Instruments, first obtain a
Returned Goods Authorization Number from the Customer Service de-
partment and then send it with shipment costs prepaid. When shipping
any instrument, make sure it is properly packaged for complete protec-
tion.
To validate your warranty, fill out and return the enclosed warranty card
within 14 days from the date of purchase.
All rights are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner, Hanna Instru-
ments Inc., Woonsocket, Rhode Island, 02895 , USA.
Hanna Instruments reserves the right to modify the design, construction
and appearance of its products without advance notice.
Dear Customer,
Thank you for choosing a Hanna product. This manual will
provide you with the necessary information for a correct
operation. Please read it carefully before using the meter. If
you need additional technical information, do not hesitate
to e-mail us at tech@hannainst.com.
These instruments are in compliance with the directives
EN 50081-1 and EN 50082-1.

PRELIMINARY EXAMINATION

PRELIMINARY EXAMINATION PRELIMINARY EXAMINATION PRELIMINARY EXAMINATION PRELIMINARY EXAMINATION
Remove the instrument from the packing material and
examine it carefully. If any damage has occurred during
shipment, immediately notify your Dealer or the nearest
Hanna Customer Service Center.
The meters are supplied with:
• HI 7632 EC probe (for HI 983302);
• HI 7634 TDS probe (for HI 983301);
• Calibration screwdriver;
• 12 VDC power adapter.
Note: Conserve all packing material until the instrument
has been observed to function correctly. Any defective
item must be returned in its original packing.

GENERAL DESCRIPTION

GENERAL DESCRIPTION GENERAL DESCRIPTION GENERAL DESCRIPTION GENERAL DESCRIPTION
EC and TDS are instruments specially de-
signed to meet the needs of growers in greenhouses and
hydroponic applications.
The housing has been completely sealed against vapors and
humidity with IP54 rating.
You can simply hang the meter right above the sample to be
tested for continuous measurement.
Both meters come with a probe that compensates for the
temperature variation automatically. The probe is easy to
clean and requires little maintenance.
You can even select your own setpoint and be alerted of an
abnormal situation with a flashing LED alarm.
Measurements are highly accurate and the meters can be
calibrated at one point. In addition, the TDS
uses a specially devised formula which perfectly reflects the
needs of growers. In fact, the common method of measuring
Total Dissolved Solids by multiplying the conductivity by 0.5
is far off the mark in horticulture with high concentrations of
phosphate, nitrogen, etc.
You no longer need to worry about battery changes either:
the unit runs without interruption on 12 VDC power supply.
F U N C T I O N A L D E S C R I P T I O N F U N C T I O N A L D E S C R I P T I O N
F U N C T I O N A L D E S C R I P T I O N F U N C T I O N A L D E S C R I P T I O N F U N C T I O N A L D E S C R I P T I O N

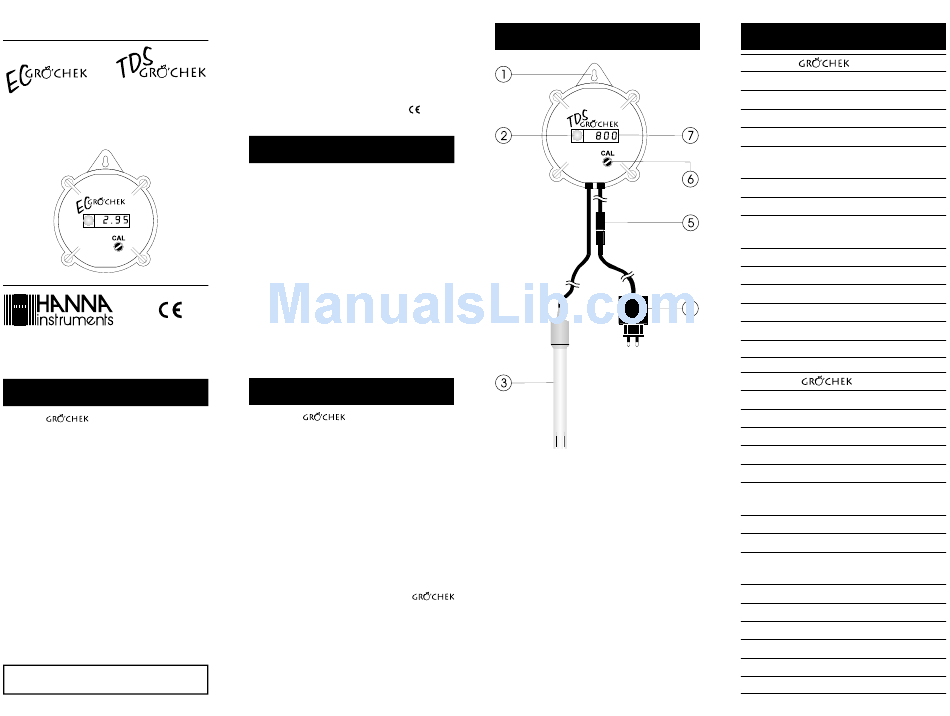

1. Molded eye
2. Alarm LED
3. EC or TDS probe
4. 12 VDC power adapter
5. Power supply connector
6. Calibration trimmer
7. Liquid Crystal Display

SPECIFICATIONS

SPECIFICATIONS
SPECIFICATIONS SPECIFICATIONS SPECIFICATIONS
EC – HI 983302
Range 0.00 to 9.99 mS/cm (EC)
Resolution 0.01 mS/cm (EC)
Accuracy (@ 25°C/77°F) ±2% f.s.
Typical EMC Deviation ±2% f.s.
Temperature Compensation Automatic
5 to 50°C (41 to 122°F)
Setpoint 0.70 to 3.50 mS/cm (EC)
Hysteresis ±0.20 mS/cm (EC) around setpoint
Alarm LED blinks when EC value is outside
hysteresis range
Calibration Manual with one trimmer
Probe HI 7632 EC probe (included)
Casing IP54
Power supply External 12 VDC (included)
Dimensions 86 x 94 x 33 mm (3.4 x 3.7 x 1.3")
Weight 150 g (5.3 oz.)
TDS – HI 983301
Range 0 to 1990 mg/L (ppm)
Resolution 10 mg/L (ppm)
Accuracy (@ 25°C/77°F) ±2% f.s.
Typical EMC Deviation ±2% f.s.
TDS Factor 0.7
Temperature Compensation Automatic
5 to 50°C (41 to 122°F)
Setpoint 500 to 1600 mg/L (ppm)
Hysteresis ±100 ppm around setpoint
Alarm LED blinks when TDS value is outside
hysteresis range
Calibration Manual with one trimmer
Probe HI 7634 TDS probe (included)
Casing IP54
Power supply External 12 VDC (included)
Dimensions 86 x 94 x 33 mm (3.4 x 3.7 x 1.3")
Weight 150 g (5.3 oz.)
