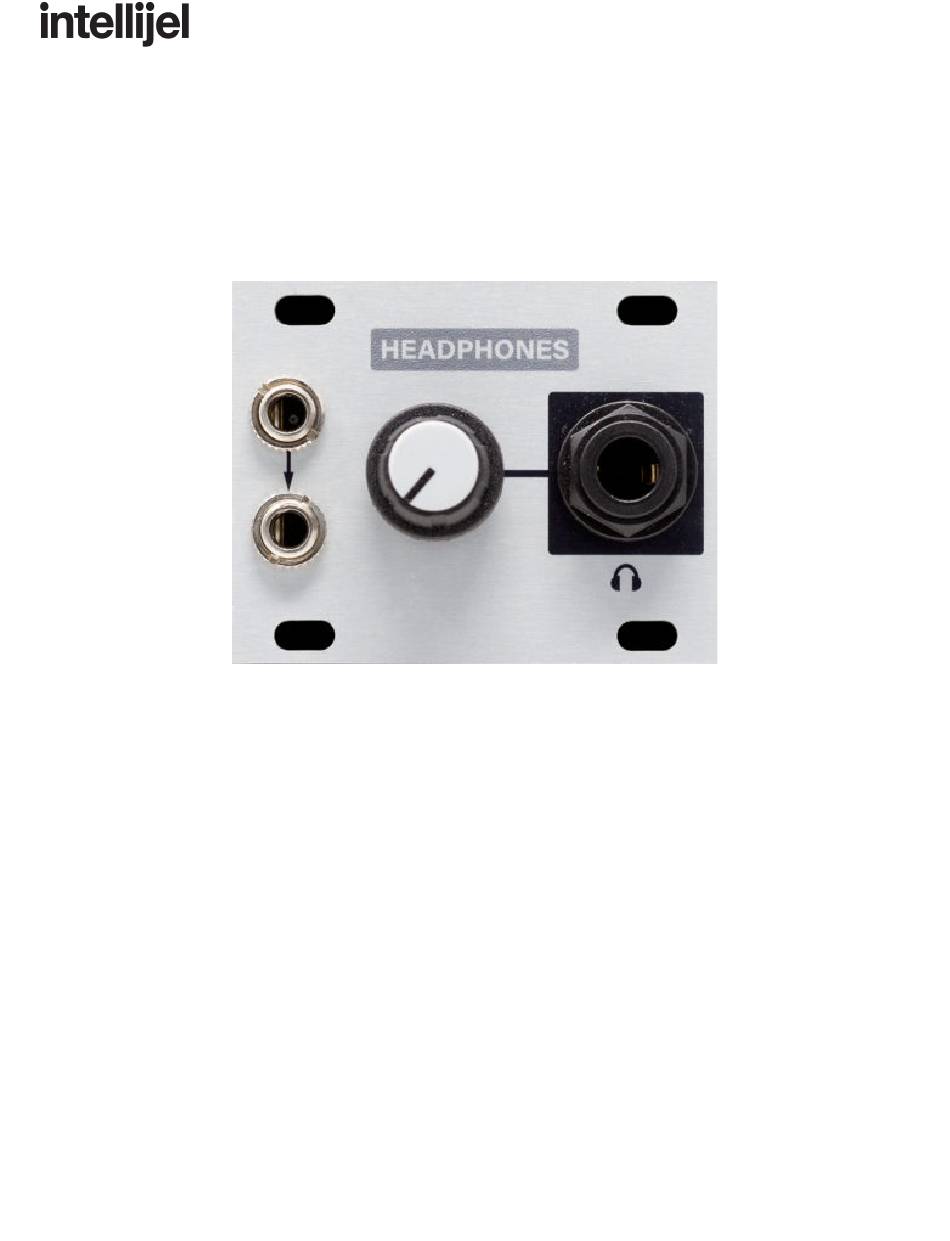

- Page 1 Headphones 1U Manual Headphones 1U Stereo Headphone Amplifier Manual Revision: 2019.08.07 ...
-
Page 2: Table Of Contents
Headphones 1U Manual Table of Contents Compliance Installation Before Your Start Installing Your Module Front Panel Version 1 vs Version 2 Using The 3-Pin Link Connector (version 2 only) Technical Specifications Version 2 ... -
Page 3: Compliance
(2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Intellijel Designs, Inc. could void the user’s authority to operate the equipment. Any digital equipment has been tested and found to comply with the limits for a ... -
Page 4: Installation
Before Your Start Intellijel Eurorack modules are designed to be used with a Eurorack-compatible case and power supply. We recommend you use Intellijel cases and power supplies. Before installing a new module in your case, you must ensure your power supply has a free ... -
Page 5: Installing Your Module
Eurorack case. Ensure the red stripe on the cable lines up with the -12V pins on the bus board. On Intellijel power supplies the pins are labelled with the label “-12V” and a thick white stripe: ... - Page 6 Headphones 1U Manual Once connected, the cabling between the module and power supply should resemble the picture below: Before reconnecting power and turning on your modular system, double check that the ribbon cable is fully seated on ...
-
Page 7: Front Panel
Headphones 1U Manual Front Panel 1. L Input Eurorack-level audio sent into this jack is scaled by the HEADPHONE Level Knob and sent to the stereo HEADPHONE Out jack . 2. R Input ... -
Page 8: Version 1 Vs Version 2
3-pin Link connections require removal of this jumper to achieve expected operation and optimum sonic fidelity. If you’re using the 3-pin Link cable to feed the Headphones 1U module and the JP1 jumper is removed, it’s front panel input jacks are still active, however they are independently ... - Page 9 Headphones 1U Manual The following diagrams show how to connect a v2 Headphones 1U module to either a Stereo Line Out 1U module or a Mixup module’s CHAIN OUT connector using the included 3-pin Link cable: ...
-
Page 10: Technical Specifications
Headphones 1U Manual Technical Specifications Version 2 Width 10 hp Maximum Depth 37 mm (43 mm with 3pin cable inserted) Current Draw 36 mA @ +12V 36 mA @ -12V Version 1 ...
