User Manual: Electronic switch Main Switch
3. Installation
The Main Switch can be installed in models by taking advantage of mounting holes with rubber grommets
that prevent vibration transfer. The input and output wire connections must be adequately dimensioned for the
size of the transmitted current.
The connectors and the connecting wires used must be sufficiently large to transfer the required current. The
G5,5 connectors are recommended for the current of up to 100A, for the current of up to 200A use the G8
connectors.

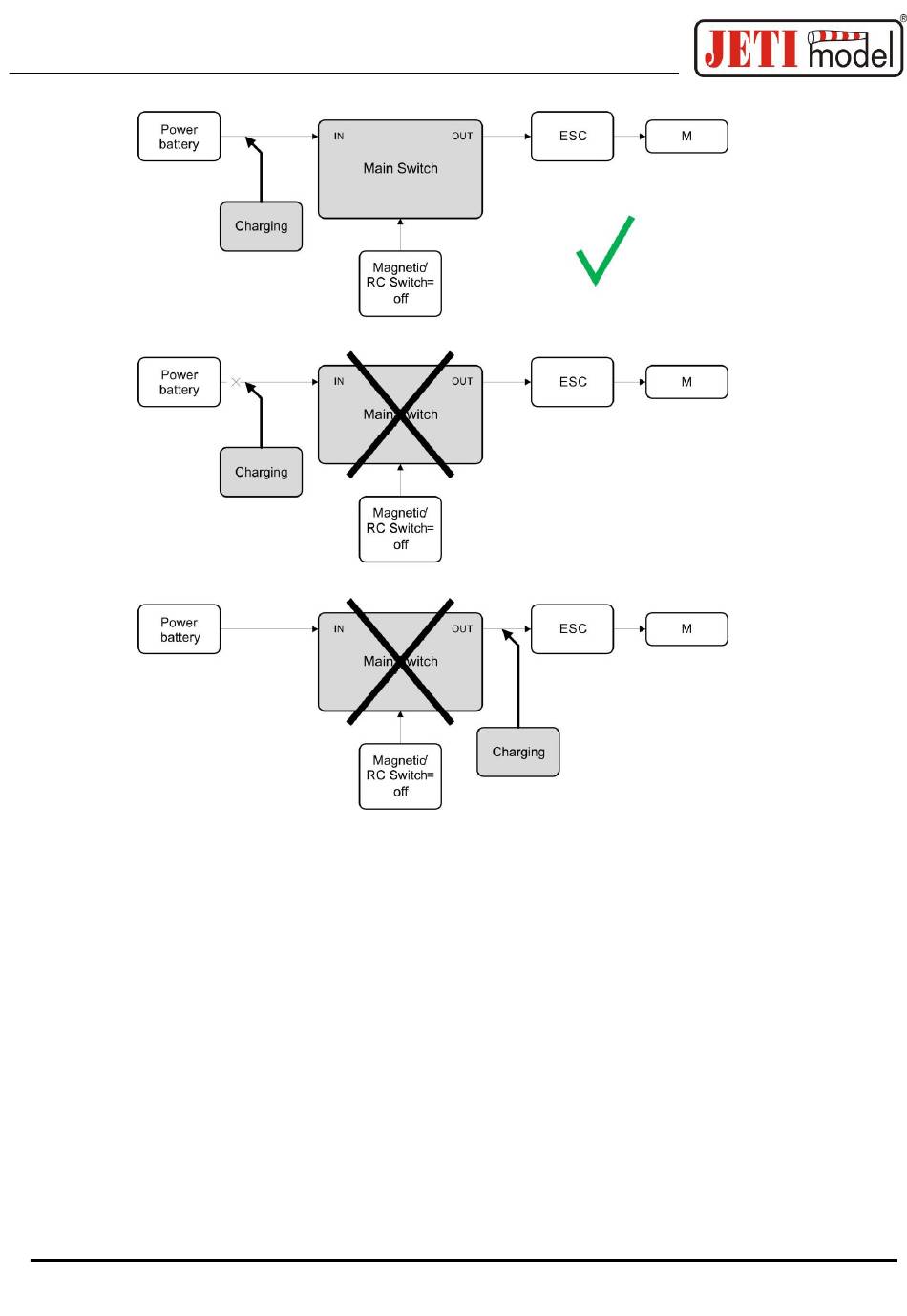

Fig. 3: Charging the battery
-4-
