Instruction Manual
MODEL: XM-R280
1-Din Car MP3 Player & Stereo Radio
AM/FM 2 Band, USB, Bluetooth

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XM-R280 and is the answer not in the manual?

Questions and answers

Summary of Contents for Xomax XM-R280

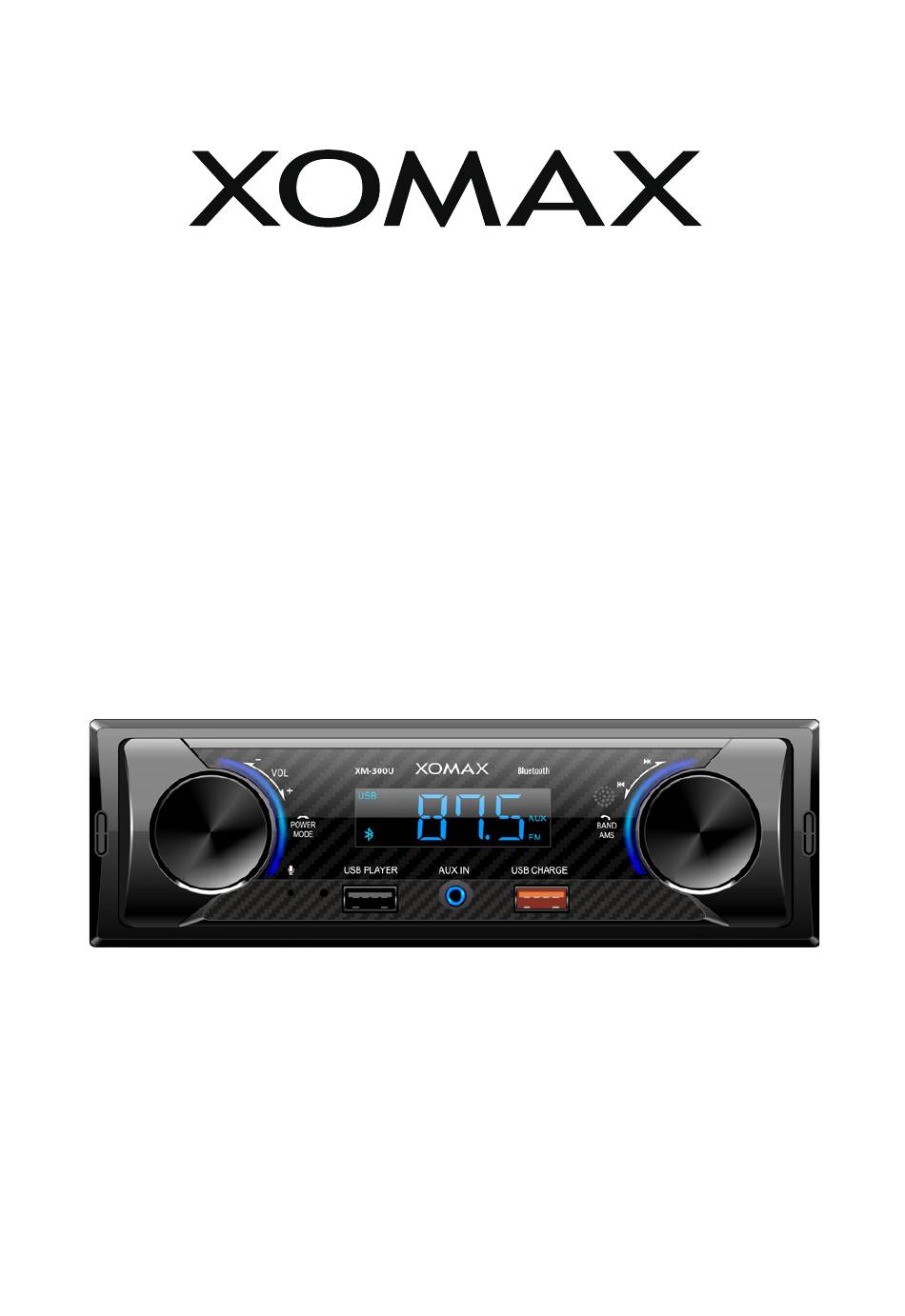

  • Page 1 Instruction Manual MODEL: XM-R280 1-Din Car MP3 Player & Stereo Radio AM/FM 2 Band, USB, Bluetooth...
  • Page 2: Installation

    Installation Installation Procedures First complete the electrical connections and then check for correctness. Installation Opening This unit can be installed in any dashboard Having an opening as shown below. 53 mm 182 mm To Install the Car Radio Be sure you test all connections first, and then follow these steps to install this unit.
  • Page 3: Wiring Connections

    Installation Connect all wiring harness and slide the head unit into the mounting collar until it clicks into place. Wiring Connections Radio Antenna White: Front Left PRE-AMP Output Red: Front Right PRE-AMP Output ACC + (Red) Red: Rear Right PRE-AMP Output GND - (Black) ANT + (Blue) White: Rear Left PRE-AMP Output...
  • Page 4: Overview Of The Controls

    Overview of the Controls 1. POWER(power on/off) button, VOL(volume) knob, MODE (Mode selector) button, (end call) button 2. LED Display 3. IR remote sensor 4. BAND button, Tuning knob, Preset memory station selector AMS (auto store / preset station scan, auto music search) button (Answer call) button 5.
  • Page 5: Remote Control

    Auxiliarly Operation Using this socket, it is possible to hear the sound of other playback devices such as MP3 players, CD players etc. through the car loudspeaker. 1. Please connect the external device with a 3.5 mm stereo jack plug to the AUX socket.
  • Page 6: General Operation

    General Operation Turn Unit on/off, Change the Source • Press the Power on/off button (volume knob) to turun on the unit. Press and hold the Power on/off button to turn off the unit. Change Modes(Source) • Press the MODE button to select the different modes: Radio, USB(with USB device inserted), AUX IN(auxiliary input) and BT(Bluetooth) modes.
  • Page 7: Radio Operation

    General Operation Auxiliary Input Jack USB Charge for smartphone The blue USB port is designed for charging for iPhone / android mobile phone. The charging current consumption is 2.1 ampere. Play Songs from USB flash memory device The black USB port is designed for music playback from flash memory devices.
  • Page 8: Usb Operation

    LOCAL/DX Press the LOC button on the remote control to choose local or distant reception mode. STEREO/MONO Press the ST button on the remote control to choose FM STEREO or MONO audio effect. USB Operation The black USB port is designed for music playback from flash memory devices.
  • Page 9: Bluetooth Operation

    User can complete the pairing steps from your Bluetooth device. Refer to owner’s manual for your device for more details. 2. When the phone finds the car audio system, the “XOMAX” name will be displayed. Choose the “XOMAX” from the device list to pair and connect with the car audio system.
  • Page 10 Bluetooth Operation Adjust Call Volume During a talk, use VOL knob or VOL+ /VOL- button to adjust the call volume level. Audio Streaming (A2DP) This head unit supports A2DP (advanced audio distribution profile) wireless streaming audio from a Bluetooth mobile device directly to your head unit. The following functions can be used to control the music playback.
  • Page 11 Technical Specifications: • 1 DIN Short Chassis: (W x H X D): 178 x 50x 70 mm • Working Voltage: DC 12V/ 10A • Power Output: 4 x 60 Watt (240 Max.) • FM Tuner Frequency Range: 87.5 ~ 108.0 KHz (50KHz/Step) •...
