Thank you for purchasing one of our Xomax products!
We appreciate your confidence. Enjoy your brand new multimedia unit!
i
Please read the following manual carefully before you install and use the
unit. Please save this manual in case you will need to clarify further possible
questions regarding installation and usage of our product.
We recommend you to let the technician install the unit in your vehicle.
You can find the detailed manual for your XOMAX product on our homepage:
www.xomax.de/download

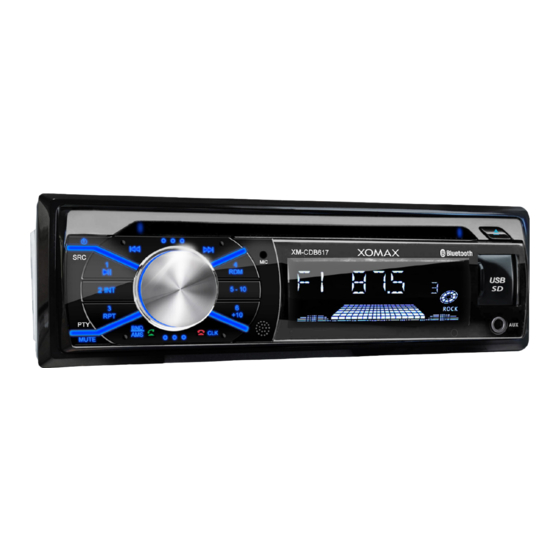

XOMAX
Installation Manual
XM-CDB617
1
EN
X M - C D B 6 1 7
Advertisement
Table of Contents
Related Manuals for Xomax XM-CDB617
Summary of Contents for Xomax XM-CDB617
- Page 1 Please save this manual in case you will need to clarify further possible questions regarding installation and usage of our product. We recommend you to let the technician install the unit in your vehicle. You can find the detailed manual for your XOMAX product on our homepage: www.xomax.de/download XOMAX...
-
Page 2: Table Of Contents
5. Fixture of the unit ....... 9 Connection schedule – ISO plug ISO plug configuration Socket A (power supply) ....11 Socket B (loud speakers) ....11 Connection schedule – Cinch multicore XOMAX X M - C D B 6 1 7... -
Page 3: Safety Instructions And Precautions
If it's too hot inside of the vehicle, do Do not use the unit any further since not turn the unit on until the inside you detect any kind of technical temperature of the cabin descends. problems. XOMAX X M - C D B 6 1 7... -
Page 4: Cleaning Of The Unit
"CLASS 1 LASER PRODUCT". Transportation bolts Be sure the two shipping screws on the top of the car radio have been removed before turning on the system. XOMAX X M - C D B 6 1 7... -
Page 5: Installation
12 Volt designed and construed for connection on-board power supply. with 2 speakers. The minus (-) should be connected with The speakers should feature the XOMAX X M - C D B 6 1 7... - Page 6 Do not ever connect the negative speaker cables with the vehicle body. To ensure a flawless performance of the unit the intergration angle should amount to +/- 30. XOMAX X M - C D B 6 1 7...
-
Page 7: Installation Instructions
Therefore it might cause from product to product some irrelevant discrepancies, especially regarding some depictions (e.g. installation accessories) You can find the detailed manual for your XOMAX product on our homepage: www.xomax.de/download 4. unit 1. -
Page 8: Fixture Of The Fixation Sheet
(if it's included in delivery) from frame inside the cell (slot). the unit. Please use for that the extrac- tion keys ( see page 13 ). Possibly the XOMAX X M - C D B 6 1 7... -
Page 9: Connect The Unit
As earlier required ( see page 8 ), the dual-ended bolt of the unit should be pulled through one of the holes in the XOMAX X M - C D B 6 1 7... -
Page 10: Connection Schedule - Iso Plug
Topic: Connection schedule – ISO plug Connection schedule – ISO plug XOMAX X M - C D B 6 1 7... -
Page 11: Iso Plug Configuration
If pin assignments a simple plug'n'play these problems appear the connections connection may lead to grievous errors. A4 and A7 should be interchanged. XOMAX X M - C D B 6 1 7... -
Page 12: Connection Schedule - Cinch Multicore
Topic: Connection schedule – Cinch multicore Connection schedule – Cinch multicore XOMAX X M - C D B 6 1 7... -
Page 13: Deinstallation Instructions
First of all please unloose the fixation sheet. nut on the rear side of the unit by spanner (wrench). XOMAX X M - C D B 6 1 7... -
Page 14: Use The Extraction Keys
4. Unloose the unit can be carefully pulled out. When and as long as inserted, the extraction keys press the holding side-cogs outwards so that the unit is XOMAX X M - C D B 6 1 7... -
Page 15: Remove The Unit
6. Remove the installation accessories Finally remove all the installation accessories such as fixation metal sheet and installation frame. XOMAX X M - C D B 6 1 7... -
Page 16: Common Solutions
Common solutions Common solutions The following advices are generally valid and refer to diverse Xomax models with the similar characteristics. Please note that some articles may refer not to your model exactly and contain the describtion of features and functions that your model does not support. - Page 17 Please interchange the cables for ignition plus and for steady the stored stations plus. and users settings will be lost. Caution: If these wires have fuses the latter should be interchanged as well. XOMAX X M - C D B 6 1 7...
-
Page 18: Recycling Of An Old Unit
Please hand these products for recy- cling at municipal collection points free of charge. XOMAX Vertrieb weltweit The proper disposal of these products XOMAX Autoradio online kaufen: contributes to environment protection. https://www.carmediashop.de To find the nearest collection point or recycling yard please consult your municipal administration.
