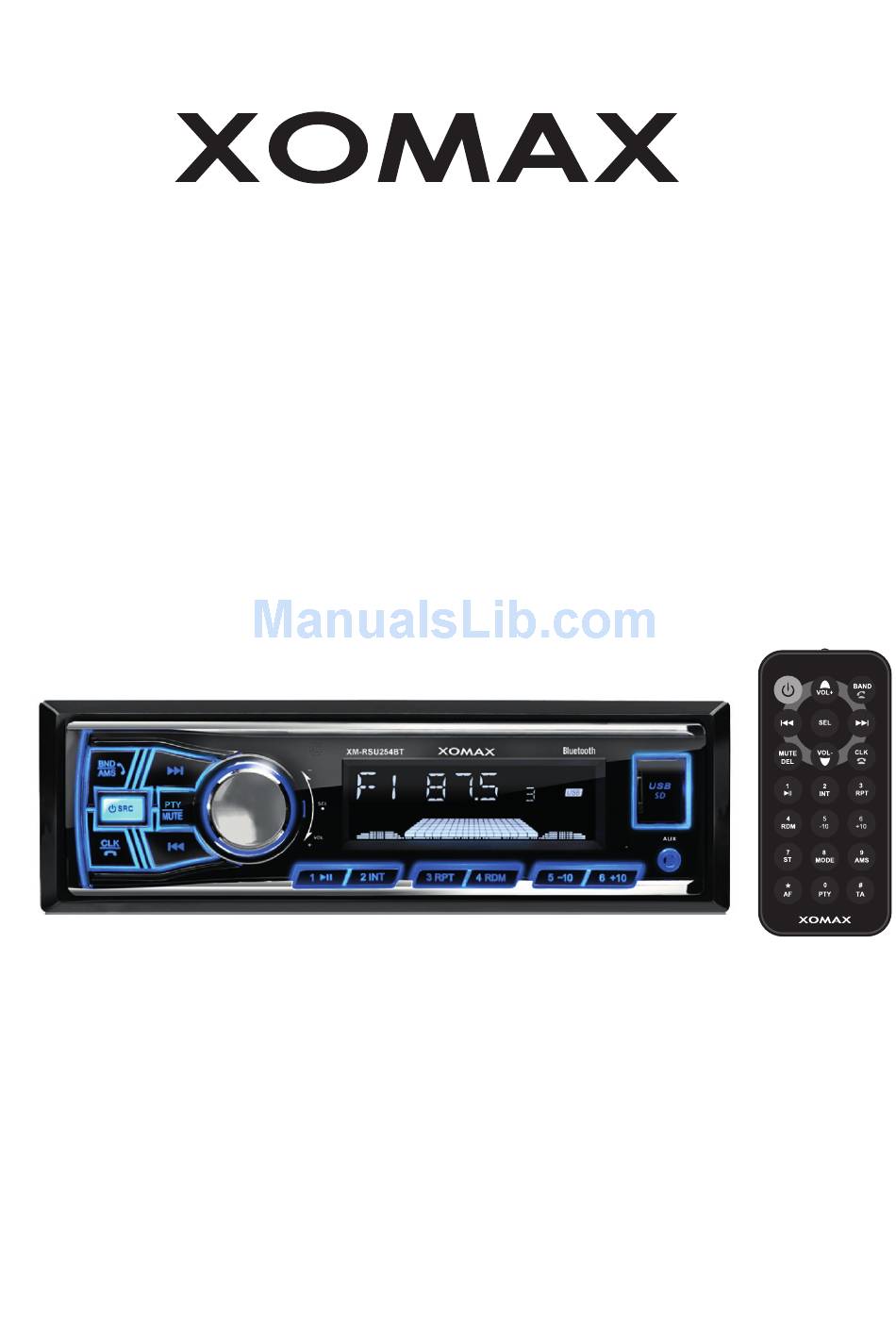

- Page 1 In-Dash Car RDS/FM Radio, MP3 Player With USB/SD Card Inputs Car Single-DIN Mech-less Series Model No.:XM-RSU254BT USER’S MANUAL...
-
Page 2: Table Of Contents
CONTENTS Precautions........................1 Precautions & Warnings....................1 Lithium Battery Cell Warnings..................1 Drivers and Connections.....................1 Other Warnings......................1 Installation........................2 Installation Precedures....................2 Installation Opening....................2 To Install theCart Radio....................2-3 Wiring Connections....................3 Removal of the Main Unit ....................3 Control Panel Button Locations..................4 General Operation......................5 Turn Unit On/Off......................5 Adjust Volume (VOL)....................5 Adjust Menu Options (SEL)..................5 Set the Clock (CLK)....................6... -
Page 3: Precautions
PRECAUTIONS Precautions & Warnings • To reduce the risk of fire, electric shock, and interfer-ence, do not attempt to repair this unit yourself. Refer all service to a qualified technician. • Some MP3/WMA files may not be playable. • Keep the volume at a reasonable level to avoid distracted driving. High volume levels may make it difficult to concentrate on traffic and road conditions while driving. -
Page 4: Installation
INSTALLATION Installation Procedures First complete the electrical connections and then check for correctness. Installation Opening This unit can be installed in any dashboard Having 53 mm an opening as shown the right figure. 182 mm To Install the Car Radio Be sure you test all connections first, and then follow these steps to install this unit. -
Page 5: Wiring Connections
INSTALLATION(CONT.) 8. Make wiring connections, as illustrated in the “Wiring Diagram.” 9. Install the plastic outer trim ring. - Only use speakers with 4 ohms impedance. - Do not attach the control panel to the chassis before wiring is complete. - The maximum current of the auto antenna is 200mA. -
Page 6: Control Panel Button Locations
CONTROL PANEL BUTTON LOCATIONS Bluetooth XM-RSU254BT (power)/SRC (source) button 2. SEL (select/menu) button and VOL (volume) knob 3. BND(band) button, AMS (automatic music search) button, button (pause/play), Preset station1 button 5. INT (intro) , Preset station 2 button , Preset station 6. -
Page 7: General Operation
GENERAL OPERATION Turn Unit On/Off • Press the power ( ) /SRC button on the front panel to turn on the unit. • Press and hold the power ( ) / SRC button to turn off the unit. Adjust Volume (VOL) Rotate the knob on the front panel or press the VOL+... -
Page 8: Set The Clock (Clk)
GENERAL OPERATION (CONT.) TA VOL (traffic announcement volume): This function allows you to define the minimum volume for the traffic announcements. The adjustable range is 0~43. The defaulted value is 26. Rotate the knob to adjust the volume of the traffic announcements. -
Page 9: Radio Operation
RADIO OPERATION Change Bands (BAND) Press the BAND button to switch between the FM1, FM2, FM3 bands. Each band stores up to six preset stations. Manual Tuning ( Press and hold the button on the front panel or on the remote control to enter manual tuning mode. -
Page 10: Usb/Micro Sd Card Operation
USB storage device into the USB port or insert an micro SD card into micro SD card slot. Playback will begin automatically. Bluetooth XM-RSU254BT Eject USB/Micro SD • To eject a USB device, press the button to stop playback, then remove the USB device. -
Page 11: Auxiliary Input Operation
So you can listen to sounds and music from external devices, if you have plugged such a player into the AUX IN jack with a audio cable. Press the button to switch to the AUX MODE input mode on or off. Bluetooth XM-RSU254BT... -
Page 12: Bluetooth Operation
2. When the phone the car audio system,the XOMAX XM-RSU254BT name will be displayed. 3. Choose the XOMAX XM-RSU254BT from the device list to pair and connect with the car audio system. Upon confirming, the BT logo will stop flashing. -
Page 13: Remote Control
REMOTE CONTROL Remove Insulating Sheet The remote control comes with an insulating sheet attached to the underside of the remote control, as illustrated on the right. The remote control will not work until the insulating sheet is removed. Replace Lithium Battery Cell 1. -
Page 14: Specifications
SPECIFICATIONS General Chassis Dimensions...............178(W) x 108(D) x 50(H) mm Power Supply Requirement ..................DC 12V Current Consumption ....................10A Maximum Power Output ................W x 4CH Radio Frequency Range.............87.5 - 108.0 MHz (100KHz/Step) Usable Sensitivity ....................30 dBu I.F. Frequency ....................10.7 MHz USB/Card Usable Audio Formats ..................MP3/WMA Pre-amp Output ..................Front and Rear Frequency Response .................20 Hz - 20 KHz... -
Page 15: Tr O U B L E S H O O T I N
TROUBLESHOOTING...
