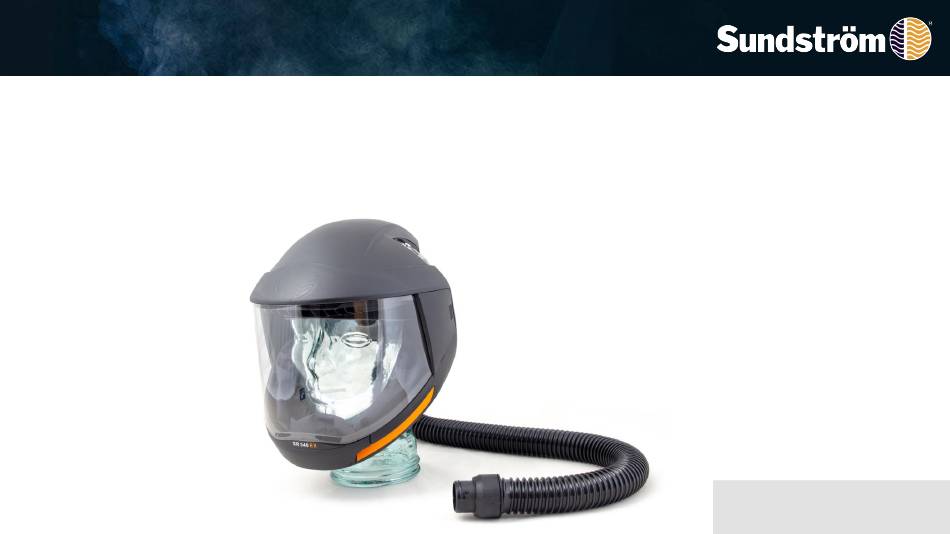

- Page 1 Operating instruction SR 540 EX Revision: 02 OI06H-6018 SR 540 EX 2019-10-23...
-
Page 2: General Information

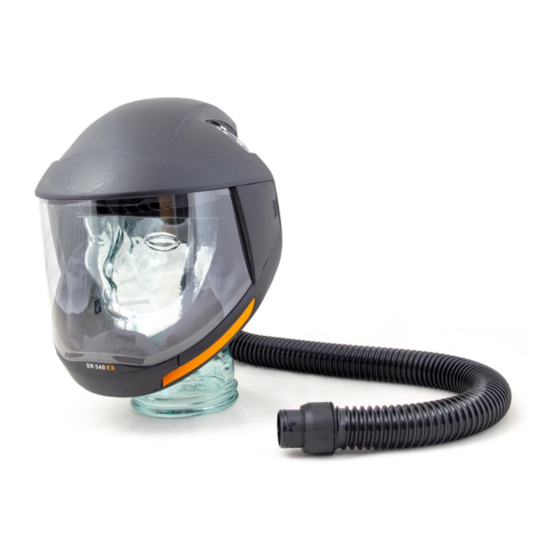

SR 540 EX face shield in combination with fan unit SR 500 EX are approved in accordance with EN 12941:1998, class TH3. SR 540 EX in combination with SR 507 and air hose SR 358 or SR 359 are approved in accordance with EN 14594:2005, class 3B. - Page 3 Unpacking SR 540 EX Packing list: • Face shield • Breathing hose • User instruction • Cleaning tissue OI06H-6018 SR 540 EX 2019-10-23...
- Page 4 Turn it clockwise about 1/8 of a turn. Check that the flat gasket is 1.3 Connect the hose to the ok and in place at the other fan unit and turn it clockwise end. about 1/ 8 of a turn. OI06H-6018 SR 540 EX 2019-10-23...
- Page 5 175 inside out and the flow meter l/min marking. appears. If the minimum flow is not achieved, check that: -The flow meter is vertical -The ball moves freely -The bag seals well around the hose OI06H-6018 SR 540 EX 2019-10-23...
- Page 6 3.2 If necessary, adjust the head harness in height by lengthening or shortening the strap for the top of the head OI06H-6018 SR 540 EX 2019-10-23...
- Page 7 3.5 Insert a finger between your chin and the face seal and run the finger along the contact surface of the face seal all the way round to check that it fits well against the face. OI06H-6018 SR 540 EX 2019-10-23...
- Page 8 Secure the new visor first to the fixed mounting and then to the over-centre mounting. 4.2 Release the visor by moving the lever of the over- centre lock upwards through about 180 degrees. And remove the visor. OI06H-6018 SR 540 EX 2019-10-23...
- Page 9 A clicking sound indicates that they are in place. 4.5 Check that the visor is firmly in contact with the visor opening seal all round. OI06H-6018 SR 540 EX 2019-10-23...
- Page 10 A visor unit holes. clicking sound indicates that they are in place. Remove the face seal. Secure the hooks to the head harness in the place where sweatband is relieved. Like 5.1. OI06H-6018 SR 540 EX 2019-10-23...
- Page 11 6.2 Pull the sweatband off. 6.4 Secure the hooks to the head harness where a relief has been made in the sweatband. OI06H-6018 SR 540 EX 2019-10-23...
- Page 12 7.4 Press the new membrane onto the pin. Carefully check that the membrane is in contact with the valve seat all way round. Press the valve cover into place. A clicking sound indicates that it is in place. OI06H-6018 SR 540 EX 2019-10-23...
- Page 13 8.2 If the equipment is more 8.4 Clean the face seal. heavily fouled, use a soft brush or sponge moistened with a solution of water and dishwashing detergent or the like. Rinse the equipment and leave it to dry. OI06H-6018 SR 540 EX 2019-10-23...
- Page 14 After cleaning, store the equipment in a dry and clean place at room seal. temperature. Avoid exposing it to direct sunlight. The flow meter can be turned inside out and can be used as storage bag for the head top. OI06H-6018 SR 540 EX 2019-10-23...
-
Page 15: Maintenance Schedule
Change of O-ring the equipment may reduce the protective function and put at for breathing hose risk the approvals received by the product. Change of gasket for • breathing hose Change of exhalation • membrane OI06H-6018 SR 540 EX 2019-10-23...
