- Page 1 USER GUIDE www.gatee.eu Last update on DECEMBER 22, 2016...
-
Page 2: Safety Summary
USER GUIDE Please be careful, there are some fake MERF 3.2 being sold on the Internet. They are manufactured from cheap and low quality components. Using the fake MERF 3.2 is dangerous and may damage your gun and battery. HOW TO RECOGNIZE A FAKE MERF 3.2? - Page 3 CERTIFICATE OF CONFORMITY GATE Menet, Wojtak Sp. J. hereby declares under our sole responsibility that the product GATE MERF 3.2 is in conformity with the essential requirements of the following Directives: EC DIRECTIVE 2011/55/EU This product has been certified as RoHS Compliant.
-
Page 4: Table Of Contents
• Key Functions ......................6 • Package Contents ....................9 02. Installation ......................10 • Simple ........................10 • Enhanced ......................10 03. Set up your MERF 3.2 ..................12 04. Menus ........................14 • Sub-Menus ......................15 • Factory Settings ....................17 05. Burst Time setting .....................17 06. GATE Limited Warranty Policy ................20... -
Page 5: Overview
Its latest feature is the 3-rd Burst Mode, which allows for limiting the number of shots. MERF 3.2 allows for lossless rate of fire adjustment. It protects Li-Ion batteries: LiPoly and LiFePO4. It has a built-in active brake and it protects contacts against damage. -
Page 6: Key Functions

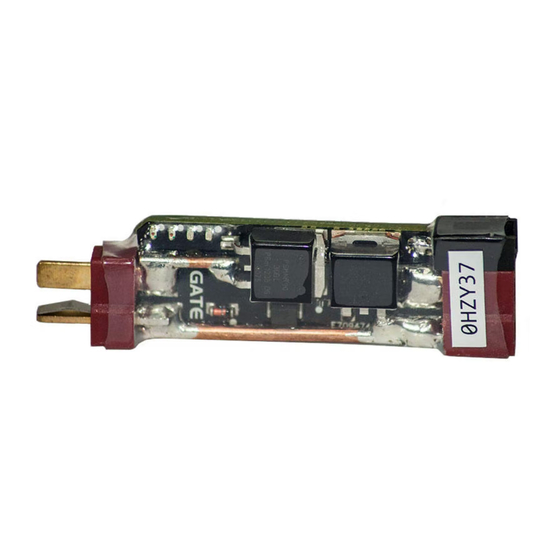

USER GUIDE Key Functions MOSFET Do you want to achieve higher rate of fire and faster trigger response? Are you planning power upgrade of your rifle? In that case, you need a MOSFET. It targets the energy from the battery directly to the motor, bypassing the mechanical trigger contacts. - Page 7 USER GUIDE 3rd Generation MOSFET The usage of modern transistors and microcontroller has enabled us to create the smallest and most reliable AEG Controller in the market. Rate Of Fire Control It enables lossless reduction of rifle’s rate of fire, so you can use stronger LiPo batteries, and still have ROF just like in a real gun.
- Page 8 Plug&Play: All you need to do is connect the system between the battery and the rifle. Enhanced Mode: It requires modification of AEG installation. Connect trigger contacts to MERF 3.2. You can do it using the signal wire attached to the kit. WWW.GATEE.EU...
-
Page 9: Package Contents
USER GUIDE Included in the kit: MERF 3.2 Additional kit of Deans-T Connectors Double signal wire for trigger contacts Single signal wire for trigger contacts Programming button WWW.GATEE.EU... -
Page 10: Installation
2. Enhanced installation: To adapt the standard AEG installation to work with MERF 3.2 you have to get to the trigger contacts. In case of GB v2 contacts are located inside a gearbox. With a version 3 gearbox, installation is easier because the contacts are on the outside of the gearbox. - Page 11 In the place of the A wire, solder additional single signal wire (3 – provided with the MERF 3.2 kit). The GATE wire is thin because it handles very low current and is only used for switch-detection.
-
Page 12: Set Up Your Merf 3.2
USER GUIDE 03. Set up your MERF 3.2 4 LED DISPLAY Connect the battery and the programming button to MERF 3.2 Step 1. ALL OFF BATTERY FUSE 7.2 - 12.8V 4 LED DISPLAY 4 LED DISPLAY Step 2. Automatic display test. LEDs light up for a second. - Page 13 4 LED DISPLAY disconnect the motor and press the programming button or the trigger quickly. Right Green ON AEG Motor BATTERY FUSE 7.2 - 12.8V CONTACTS MERF 3.2 will recognize the absence of the motor and will activate the Programming Mode. WWW.GATEE.EU...
-
Page 14: Menus
ORANGE LEDs show OPTION 04. Menus Press the button quickly to cycle through the main functions of MERF 3.2. Press and hold the button for about a second if you want to enter a particular function. When you enter the function menu, cycle through the function settings by short presses. -
Page 15: Sub-Menus
USER GUIDE LONG MAIN MENU PRESS BATTERY BATTERY MENU ROF CONTROL ROF CONTROL MENU SMART TRIGGER SMART TRIGGER MENU QUICK APPROXIMATE APPROXIMATE BURST TIME PRESS BURST TIME MENU PRECISE BURST PRECISE BURST TIME TIME MENU OPERATING OPERATING MODES MODES MENU SAVE &... - Page 16 416ms +28ms +56ms MERF 3.2 offers 64 settings of burst time for your AEG. Settings up to 192 ms in the Approximate Burst Time Menu let you adjust by 4 ms increments in the Precise Burst Time Menu. Settings from 224 - 416 ms in the Approximate Burst Time Menu, can be adjusted by 8 ms increments in the Precise Burst Time Menu.
-
Page 17: Factory Settings
ENHANCED MODE SEMI/AUTO 05. Burst Time setting MERF 3.2 allows you to use 3-rd burst firing mode. It supports replicas which rate of fire ranges from 7 to 31 shots per second. Set Burst Time in menu to calibrate burst. - Page 18 USER GUIDE 192ms 224ms 13 rps 288ms 10 rps 352ms 8 rps 416ms 7 rps Precise Burst Time adds to the Burst Time the selected value. Example 1: Example 2: Burst Time: 160ms Burst Time: 224ms Precise Burst Time: +8ms / +16ms Precise Burst Time: +8ms / +16ms Result : 160ms+8ms=168ms Result: 224ms+16ms=240ms...
- Page 19 USER GUIDE b) Burst Time setting (if you know the ROF): If you know the exact ROF of your AEG, you just have to type in the menu a time of three shots. Make the conversion in a simple way according to the formula: Burst Time [ms] = 3000 / ROF rps An example: for ROF 20 shots / second: 3000 / 20 = 150ms WWW.GATEE.EU...
-
Page 20: Gate Limited Warranty Policy
USER GUIDE 06. GATE Limited Warranty Policy GATE Menet, Wojtak Sp. J. warrants that its Product is free from manufacturing and material defects at the date of purchase and for a period of one (1) year from the date of purchase and it is not-extendable. This Limited Warranty is conditioned upon proper use of Product by Purchaser.
