- Page 1 USER GUIDE www.gatee.eu Last update on DECEMBER 22, 2016...
-
Page 2: Safety Summary
USER GUIDE GATE Menet, Wojtak Sp. J. does not take any responsibility for damages, injuries and accidents resulting in the use of this product or the use of Air Electric Gun with the product installed. Notice Information contained in this document is subject to updating without notice. - Page 3 CERTIFICATE OF CONFORMITY GATE Menet, Wojtak Sp. J. hereby declares under our sole responsibility that the product GATE NanoHARD is in conformity with the essential requirements of the following Directives: EC DIRECTIVE 2011/65/EU This product has been certified as RoHS Compliant.
-
Page 4: Table Of Contents
• Package Contents ....................7 02. Installation ......................8 • AEG standard installation diagram ...............8 • Installation of NanoHARD without replacement of wires........8 • Installation of NanoHARD with replacement of wires.........9 03. Programming ....................10 04. How to read Diagnostic Trouble Codes ............13 05. -
Page 5: Overview

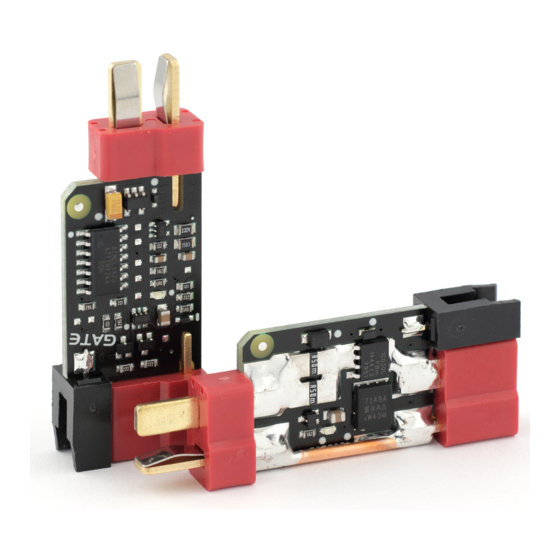

USER GUIDE 01. Overview NanoHARD is a multifunctional programmable AEG Controller. It has 8 functions. Thanks to its special coating, it is resistant to atmospheric conditions (Military Specification MIL-V-173C). Battery protection supports: Li-Po 7.4V / 11.1V / 14.8V. You can also disable the protection and use other batteries. - Page 6 USER GUIDE Coating Thanks to its special conformal coating, it is resistant to atmospheric conditions (Military Specification MIL-V-173C). ON/OFF Active Brake The Controller provides you with the opportunity to decide if you want to use the Active Brake function. If you do not need this, you can turn it off easily.
-
Page 7: Package Contents
USER GUIDE Included in the kit: NanoHARD Additional kit of Deans-T Connectors Double signal wire for trigger contacts Single signal wire for trigger contacts Programming button Jumper (2pcs.) WWW.GATEE.EU... -
Page 8: Installation
In the place of the A wire, solder the additional single signal wire (No. 04 – provided in the kit). The GATE wire is very thin because it handles very low current and it is only used for switch-detection. Now connect the device between the battery and AEG. -
Page 9: Installation Of Nanohard With Replacement Of Wires
MOSFET allows for the ultimate in system efficiency. 16 awg or thicker wire is recommended. Solder the dual signal wire (No. 03 – provided in the kit) to the trigger contacts. Connect the motor directly to the NanoHARD. AEG Motor... -
Page 10: Programming
USER GUIDE 03. PROGRAMMING We invite you to watch videos about NanoHARD programming on the GATE website or on our YouTube channel: gatee.eu/technical-support/videos youtube.com/GateMovies Battery Protection and Active Brake settings Step 1. Disconnect BATTERY and MOTOR from NanoHARD. FUSE BATTERY AEG Motor UP TO 14.8V... - Page 11 If you disconnect JUMPER when the blue LED is ON, IMPORTANT go back to Step 1 Step 5. You are in programming mode. Connect the BUTTON included in the kit to NanoHARD. FUSE Blue LED BATTERY UP TO 14.8V is blinking...
- Page 12 USER GUIDE Step 6. Set battery protection function. Count the number of flashes. BATTERY PROTECTION FLASHES SETTINGS SHORT CLICK 1 flash 2 flashes LiPoly 7.4V 3 flashes LiPoly 11.1V 4 flashes LiPoly 14.8V Step 7. Save and go to ACTIVE BRAKE settings. Click &...
-
Page 13: How To Read Diagnostic Trouble Codes
USER GUIDE 04. How to read Diagnostic Trouble Codes (DTC) Step 1. Disconnect BATTERY and MOTOR from NanoHARD. FUSE BATTERY AEG Motor UP TO 14.8V Step 2. Connect JUMPER to NanoHARD. Step 3. Connect BATTERY to NanoHARD. FUSE Blue LED BATTERY UP TO 14.8V... - Page 14 USER GUIDE If you disconnect JUMPER when the If you disconnect JUMPER when the blue LED blue LED is OFF, is OFF, IMPORTANT IMPORTANT go back to Step 1 go back to Step 1 Step 5. You are in a diagnostic mode. FUSE Blue LED BATTERY...
-
Page 15: Diagnostic Trouble Codes Interpretation
AEG or battery, not with your NanoHARD. To diagnose the current problem, remember to clear the old DTC that are stored in NanoHARD memory (p.15). Then try to shoot your gun. Now, only the current DTC are stored in memory. -
Page 16: Gate Limited Warranty Policy
USER GUIDE 06. GATE Limited Warranty Policy GATE Menet, Wojtak Sp. J. warrants that its Product is free from manufacturing and material defects at the date of purchase and for a period of one (1) year from the date of purchase and it is not-extendable. This Limited Warranty is conditioned upon proper use of Product by Purchaser.
