- Page 1 User Guide NanoHARD Last Update in 2015-02-25 www.gatee.eu...
-
Page 2: Notice
NanoHARD User Guide Notice Information contained in this document is subject to change without notice. FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE INSTALLING THE DEVICE Safety Summary KEEP AWAY FROM CIRCUIT Device cover must not be removed by user. -
Page 3: Warnings
NanoHARD User Guide WARNING: Always use fuse between battery and mosfet WARNING: Wrong polarisation of supply cause immediate damage to the unit and it can lead to fire. WARNING: We recommend that this product should be installed by an experienced airsoft service. -
Page 4: Table Of Contents
Safety Summary Warnings Table of Contents I. Overview Included in the kit II. Installation AEG standard installation diagram • Installation of NanoHARD without replacement of wires • Installation of NanoHARD with replacement of wires III. Programming IV. Warranty - 4 -... -
Page 5: Overview

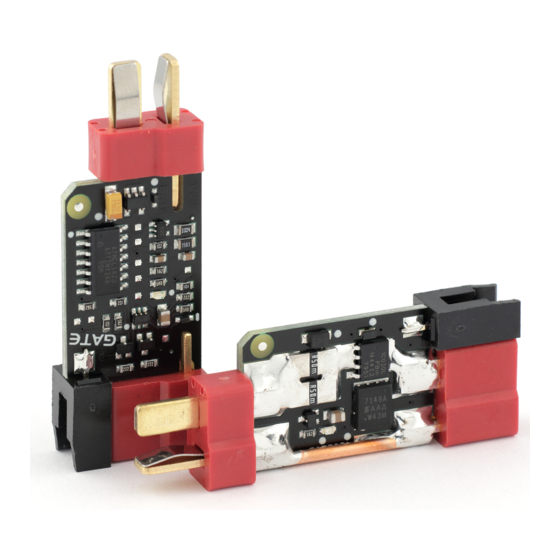

NanoHARD User Guide I. Overview NanoHARD is a multifunction programmable AEG Controller. It has 8 functions. Thanks to its special conformal coating, it is resistant to atmospheric conditions (Military Specification MIL-V-173C). Battery protection supports: Li-Po 7.4V / 11.1V / 14.8V. You can also disable the protection and use other batteries. - Page 6 NanoHARD User Guide MOSFET Do you want to achieve a higher rate of fire and faster trigger response? Are you planning a power upgrade of your rifle? In that case, you need a MOSFET. It targets the energy from the battery directly to the motor, bypassing the mechanical trigger contacts.
-
Page 7: Included In The Kit
NanoHARD User Guide Included in the kit: 1. Single signal wire for trigger contacts 2. Dual signal wire for trigger contacts 3. Deans-T Connectors [kit] 4. Programming button 5. Jumper [2pcs.] - 7 -... -
Page 8: Installation
In the place of the A wire, solder additional single signal wire (No. 1 – provided in the kit). The gate wire is very thin because it handles very low current and it is only used for switch-detection. Now, we have just connected system between the battery and AEG. -
Page 9: Installation Of Nanohard With Replacement Of Wires
MOSFET will allow for the ultimate in system efficiency. 16 awg or thicker wire is recommended. Solder dual signal wire (No. 2 – provied in the kit) to the trigger contacts. Connect motor directly to the NanoHARD. Battery Pack 7.2 - 14.8V... -
Page 10: Programming
NanoHARD User Guide III. Programming This section is under construction. Please visit our YouTube channel: http://www.youtube.com/GateMovies - 10 -... -
Page 11: Warranty
NanoHARD User Guide IV. GATE Limited Warranty Policy 1. The product must be delivered with a proof of purchase and properly completed warranty form. Installing the product is not considered as a warranty repair. 2. The warranty form is available on our website: http://www.gatee.eu/en/rma-2 3.
