- Page 1 User Guide WARFET www.gatee.eu Last update on December 14, 2015...
-
Page 2: Safety Summary
WARFET User Guide GATE Menet, Wojtak Sp. J. does not take any responsibility for damages, injuries and accidents resulting in the use of WARFET or Air Electric Gun with installed WARFET. Notice Information contained in this document is subject to updating without notice. - Page 3 CERTIFICATE OF CONFORMITY GATE Menet, Wojtak Sp. J. hereby declares under our sole responsibility that the product GATE WARFET is in conformity with the essential requirements of the following Directives:...
-
Page 4: Table Of Contents
Package contents II. Plug & Play III. Hardwired Installation AEG standard installation diagram • Installation of WARFET without replacement of wires • Installation of WARFET with replacement of wires IV. Tactical Programming V. Troubleshooting VI. GATE Limited Warranty PolicyCard usage... -
Page 5: Overview
WARFET User Guide I. Overview WARFET is GATE's most advanced AEG Control System. It has 20 functions and almost 6 million possible configurations. The outstanding Tactical Programming Card provides you with very easy access to the AEG Controller settings. Thanks to the PRE-COCKING and SMART TRIGGER functions, you can achieve a trigger response similar to a real gun. -
Page 6: Aeg Controller Parameters
WARFET User Guide In hardwired installation, WARFET draws the energy from the battery ź directly to the motor, bypassing the mechanical trigger contacts Resistant to atmospheric conditions (military specifications: MIL-V- ź 173C) Deep-drain protection for 7.4V, 11.1V, 14.8V LiPoly and 9.6V, 12.8V ź... -
Page 7: Tactical Programming Card Parameters

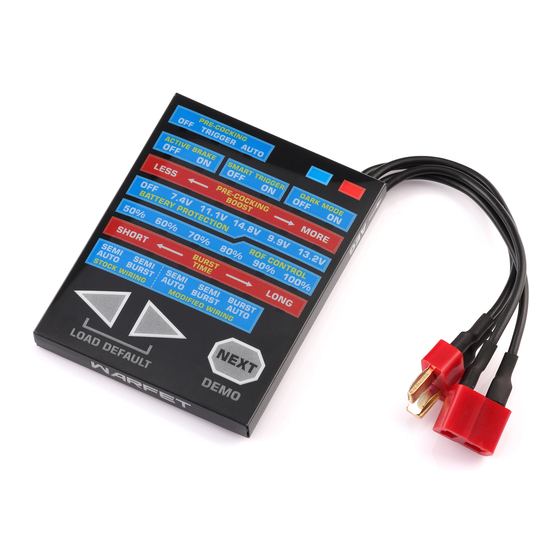

WARFET User Guide Tactical Programming Card parameters: Supply voltage: 5-17V ź Dimensions: 67x53x7mm ź Weight: 27.3g ź Number of LEDs: ź Number of buttons: ź... -
Page 8: Key Functions
WARFET User Guide Key functions: TACTICAL The outstanding Tactical Programming Card provides you with very PROGRAMMING easy access to the AEG Controller settings. All you need to do is CARD connect the Tactical Programming Card between the battery and the Controller. - Page 9 WARFET User Guide CONFIGURABLE The function gives you the option to program your fire selector. There FIRE are five operating modes: SELECTOR - STOCK WIRING SEMI/AUTO - STOCK WIRING SEMI/BURST - MODIFIED WIRING SEMI/AUTO - MODIFIED WIRING SEMI/BURST - MODIFIED WIRING BURST/AUTO It enables lossless reduction of the rifle's rate of fire, so you can use strong LiPo batteries, and still have ROF like in a real gun.
- Page 10 WARFET User Guide The new AEG Controller should never let you down on the battlefield. SMART SMART It is the best electronic fuse. The AEG Controller has a true current FUSE FUSE sensor. A combination of current, voltage and temperature measurements makes your AEG installation highly reliable.
- Page 11 Thanks to the Mini Tamiya Adapters included in kit, you will be able to smoothly connect WARFET to your original installation. MINI TAMIYA READY It makes easier starting your adventure with WARFET. The quickstart PRINTED contains basic information and hints.
-
Page 12: Package Contents
WARFET User Guide Package contents Check the product box for fallowing items: 1) Tactical Programming Card 2) AEG Controller 3) Battery Mini Tamiya adapter 4) AEG Mini Tamiya adapter 5) Pair of Deans-T Connectors 6) Single Trigger Wire 7) Double Trigger Wire... -
Page 13: Plug & Play
Battery Mini Tamiya WARFET Mini Tamiya adapter adapter (CONTROLLER) WARFET 2. Connect the battery to WARFET. The LED indicator glows BLUE for 1 second. Battery pack Battery WARFET 7.2 - 14.8V Incorrectly connecting positive and negative WARNING! battery terminals will cause immediate damage to CHECK POLARITY! the unit and it can lead to fire. - Page 14 WARFET User Guide 3. Connect the AEG to WARFET. Battery WARFET 7.2 - 14.8V AEG Motor AEG Stock Wiring 4. Pull the trigger. The AEG should start firing. While firing, the LED indicator should glow GREEN*. If the AEG is not firing and/or LED indicator glows different colour please check troubleshooting (page 20).
-
Page 15: Hardwired Installation
STOCK WIRING MODIFIED WIRING 2. Adapt AEG installation. To adapt the standard AEG installation to work with WARFET in hardwired mode it is necessary to get to the trigger contacts. In the case of GB v2 these contacts are located inside a gearbox. With a version 3 gearbox, the installation will be easier because the contacts are on the outside of the gearbox. -
Page 16: Installation Of Warfet Without Replacement Of Wires
WARFET User Guide a) Installation of WARFET without replacement of wires. Using this method, the original wiring is kept intact, and the connections are modified. Referencing Fig 1, de-solder A wire from the one of the trigger contacts and then solder it to the B wire. It does not matter which wire you disconnect from the trigger switches, just join the two wires together at one terminal. - Page 17 WARFET User Guide WARFET AEG Motor Battery 7.2 - 14.8V double trigger wire (No. 7 – provided in the kit) (Fig 3 – Complete re-wiring scheme) Your AEG is firing without pulling the trigger? Go to chapter IV and switch operating mode to MODIFIED WIRING.
-
Page 18: Tactical Programming
WARFET User Guide IV. Tactical Programming Card usage BATTERY CONNECTOR CONTROLLER CONNECTOR Battery WARFET 7.2 - 14.8V PROGRAMMING CARD BLUE ICON PRE-COCKING RED ICON TRIGGER AUTO ACTIVE BRAKE SMART TRIGGER DARK MODE LEDs PRE-COCKING LESS MORE BOOST BLUE DISPLAY 7.4V 11.1V 14.8V 9.9V 13.2V... - Page 19 WARFET User Guide 4. Click and hold button NEXT to watch DEMO. 5. Click button NEXT to switch between functions and displays. 6. Click buttons LEFT or RIGHT to switch options. 7. Click and hold buttons LEFT or RIGHT to switch options more quickly.
-
Page 20: Troubleshooting
The battery is discharged. Charge the battery. Controller, the LED indicator does No contact with the battery. Clean the battery connector. not light on. WARFET does not Clean the Controller connector. react. After a trigger action, the LED The battery is discharged. - Page 21 Controller, the AEG starts firing assembly. assembly. immediately. Ţ HARDWIRED INSTALATIONŢ The WARFET does not react to The WARFET is set on the Stock Reprogram the WARFET to the any trigger action. The AEG does Wiring mode. Modified Wiring mode. not fire.
-
Page 22: Gate Limited Warranty Policycard Usage
User Guide GATE Limited Warranty Policy GATE Menet, Wojtak Sp. J. warrants that this Product is free from manufacturing and material defects at the date of purchase and for a period of one (1) year from the date of purchase and it is not-extendable. This...
