Installation; Wiring Diagram - Theben Timeguard ProgramaStat TRT036 Operating & Installation Instructions Manual

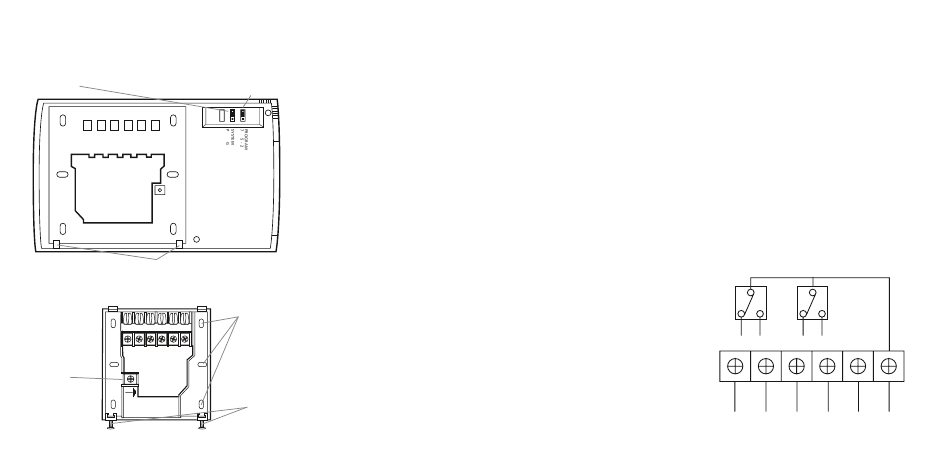

Rear View of TRT036
Gravity or Pumped jumper
(shown in P-pumped position)
(individual) day position)
Wall plate retaining screws
Fig. 2 (at bottom of TRT036)
Back Plate Removed
NC1 NO1 NC2 NO2 N L
Terminal for
retaining
continuity
of earth
Fig. 3 Mount the wall plate in this configuration only
Contents
TRT036 programmer
7 day or 5 + 2
jumper (shown in 7
TRT036 wall plate
TRT036 instruction leaflet
2. Siting
The TRT036 should be located at a position
which eases wiring runs and gives good access
for programming. It should be mounted
approximately 1.5m above floor level.

3. Installation

This product should be installed by a qualified
installer to current installation standards.
If in any doubt contact the Timeguard Helpline
020 8450 0515.
Always isolate the mains supply before
removing the unit from its wall plate.
Alternative
fixing holes
The TRT036 is designed to be surface mounted
on the supplied wall plate.
Isolate 230VAC mains supply.
Incoming and outgoing cable should be 1.5mm sq.
Product
retaining
screws
Remove wall plate from unit, by undoing
retaining screws, and pivoting the bottom of the
2 x wall plugs
unit outwards. The unit can then be lifted off.
2 x screws
Pass incoming wires through opening in wall plate,
and fix wall plate securely to the wall, using screws
provided. The screws which secure the product to
the wall plate should point downwards.
Allow sufficient excess cable to wire up the unit,
but not too much to make it difficult to close
the unit to the wall plate.
Connect the conductors to the relevant
terminal, according to the wiring diagram
on the wall plate (or below). Ensure that
the curved brass washer grips the conductor.

Wiring Diagram

Note:
Check boiler
instructions
before
connecting.
Fig. 4
NC1 NO1 NC2 NO2 N L
CH CH HW HW N L
OFF ON OFF ON 230 VAC
