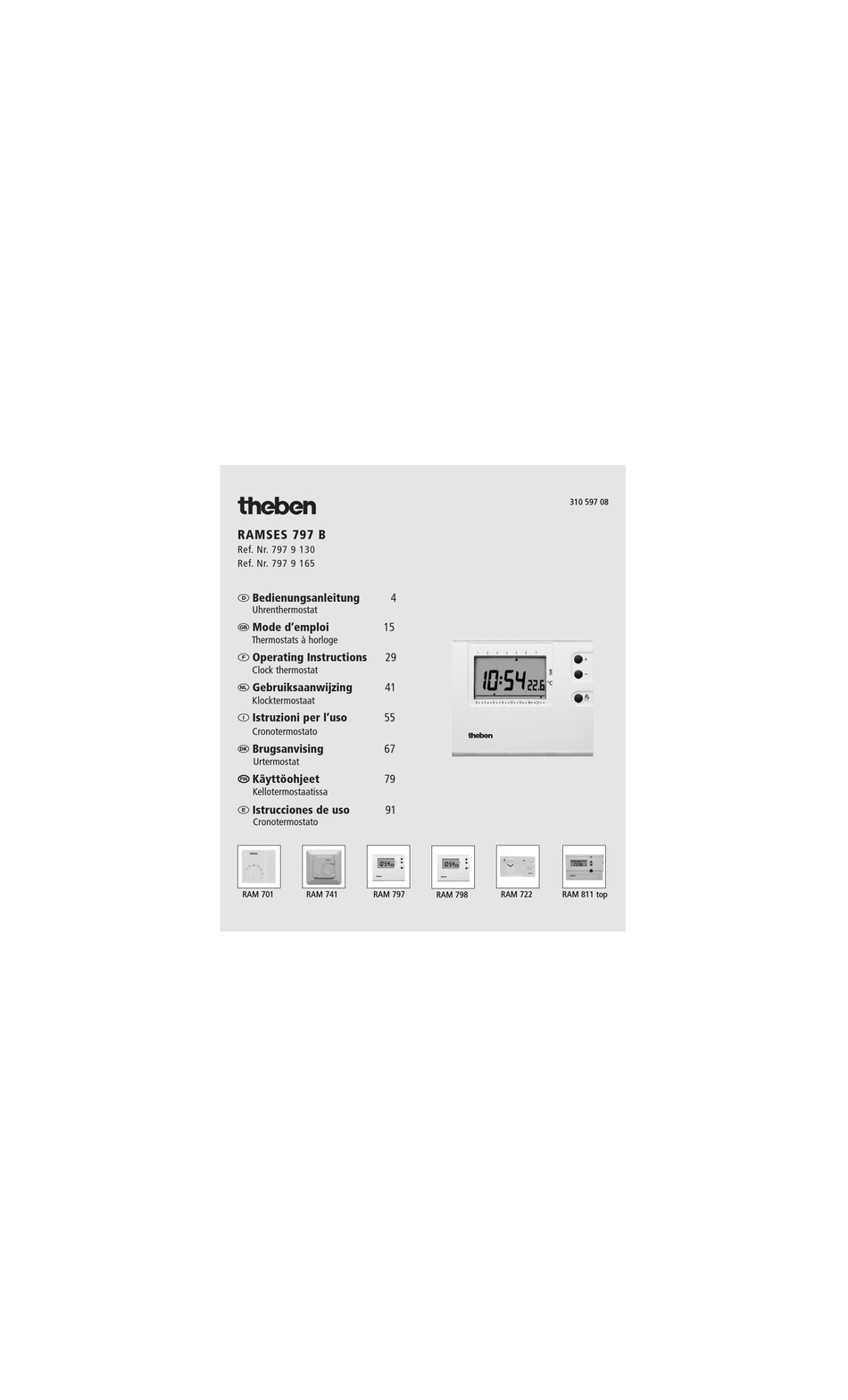

- Page 1 310 597 08 RAMSES 797 B Ref. Nr. 797 9 130 Ref. Nr. 797 9 165 Bedienungsanleitung Uhrenthermostat Mode d’emploi Thermostats à horloge Operating Instructions Clock thermostat Gebruiksaanwijzing Klocktermostaat Istruzioni per l’uso Cronotermostato Brugsanvising Urtermostat Käyttöohjeet Kellotermostaatissa Istrucciones de uso...
- Page 2 1.0 Introduction Dear customer, Overview: – 2 point pulse duration controller congratulations on a well made choice. With – battery operated the microprocessorcontrolled time thermostat – low battery-power warning RAM 797 B you have chosen a high-quality – can be programmed before mounting device which conveniently provides optimal control of the room temperature.
- Page 3 1.1 Description 1.2 Technical data RAM 797 B 12 + 11 battery case Type of controller: RS type 2 B according to 22 + 11 temperature profile display EN 60730-1:1991 32 + 11 current hour display Operating battery operated 42 + 11 telephone contact closed display voltage: 2 x alkal.
- Page 4 1.3 Measurements Fig. 2 Press in pins on the lower side of the device (fig. 2). Remove the base of the control device. Fix the base carefully to the wall (fig. 3). Make sure that the contact surface of the base and the battery case do not get clogged! 2.0 Mounting RAM 797 B should only be installed in dry...
- Page 5 2.1 Electrical connection 2.2 Inserting/changing the battery To ensure longevity and proper functioning of the Installation and mounting of electrical devices device, only new alkaline cells of the same should only be carried out by a professional elec- type, namely LR 6 (AA) should be used. trician.
- Page 6 2.3 Pump protection 3.0 Initial service Due to non-use in the summer months, circulati- Summer/winter changeover is already program- on pumps may become stuck. An included pump med until the year 2039. Choice of 3 different protection program activates the circulation switching groups (see table below) when restar- pump daily at 12.00 for the duration of 1 minute.
- Page 7 f.ex. 2001 set hour 4.0 Programming Prog 4.1 Basic program Time controlled thermostat RAM 797 B features set minutes a basic program that permanently remains in the Prog memory. This basic program heats the living room as of 6.00 o’clock to 21° C and as of 22.00 the night program lowers the temperature to 16°...
-
Page 8: Setting The Device
4.4 Setting the device 4.5 Changing the displayed time The time controlled thermostat allows 16 diffe- set hours rent temperatures with optional combination of days for the individual creation of your heating program. Example: desired temperature 21° C on Tue and set minutes Wed beginning at 6.30 Numbers 1, 2, ... -
Page 9: Changing The Date
Setting: 4.7 Changing the date – in automatic mode press the buttons simulatneously. Set the desired duration of the – party mode with . Approx. 4 sec. after – release of the button the device automatically takes on the set time (display: symbol r + Prog Set the desired temperature change with the... - Page 10 4.10 Summer program + 6° C You can set a certain constant temperature in the Beginning of holiday program automatic mode while pressing buttons – simultaneously. If the basic setting is not changed, a constant 6° C will be regulated independently from the automatic mode.
- Page 11 Warning: The remote control telephone switch 6.0 Information for the expert has priority, therefore, a defective remote control 6.1 Setting the regulating period telephone switch can cause malfunctioning! Reference list for remote control telephone swit- The regulating period (see fig. 6) can be set bet- ches will be provided upon request.
- Page 12 6.3 Wall alignment +/– 3° C 6.6 Setting recommendation Due to the mounting location, e. g. on an outside Fig. 7 wall, near a fireplace etc., the temperature of the time controlled thermostat may vary. The difference of the temperature displayed and the room temperature can be adjusted in 0.2 degree intervals.
- Page 13 7.0 Troubleshooting 1.0 Clock does not function, no change in 1.6 Clock functions, setting possible, display, setting impossible. constantly 21° C Start newly with RESET (see 2.4) Cancel switch-on command at the remo- te control telephone switch (see 5.0) 1.1 No function at all Insulating tape was not removed from 1.7 Clock functions, setting possible, the battery case Alkaline cells were not...
- Page 14 Theben AG Hohenbergstr. 32 72401 Haigerloch Tel. +49 (0) 74 74/6 92-0 Fax +49 (0) 74 74/6 92-150 Service Tel. +49 (0) 90 01 84 32 36 Fax +49 (0) 74 74/6 92-207 hotline@theben.de Adresses, telephone numbers etc. at www.theben.de...
