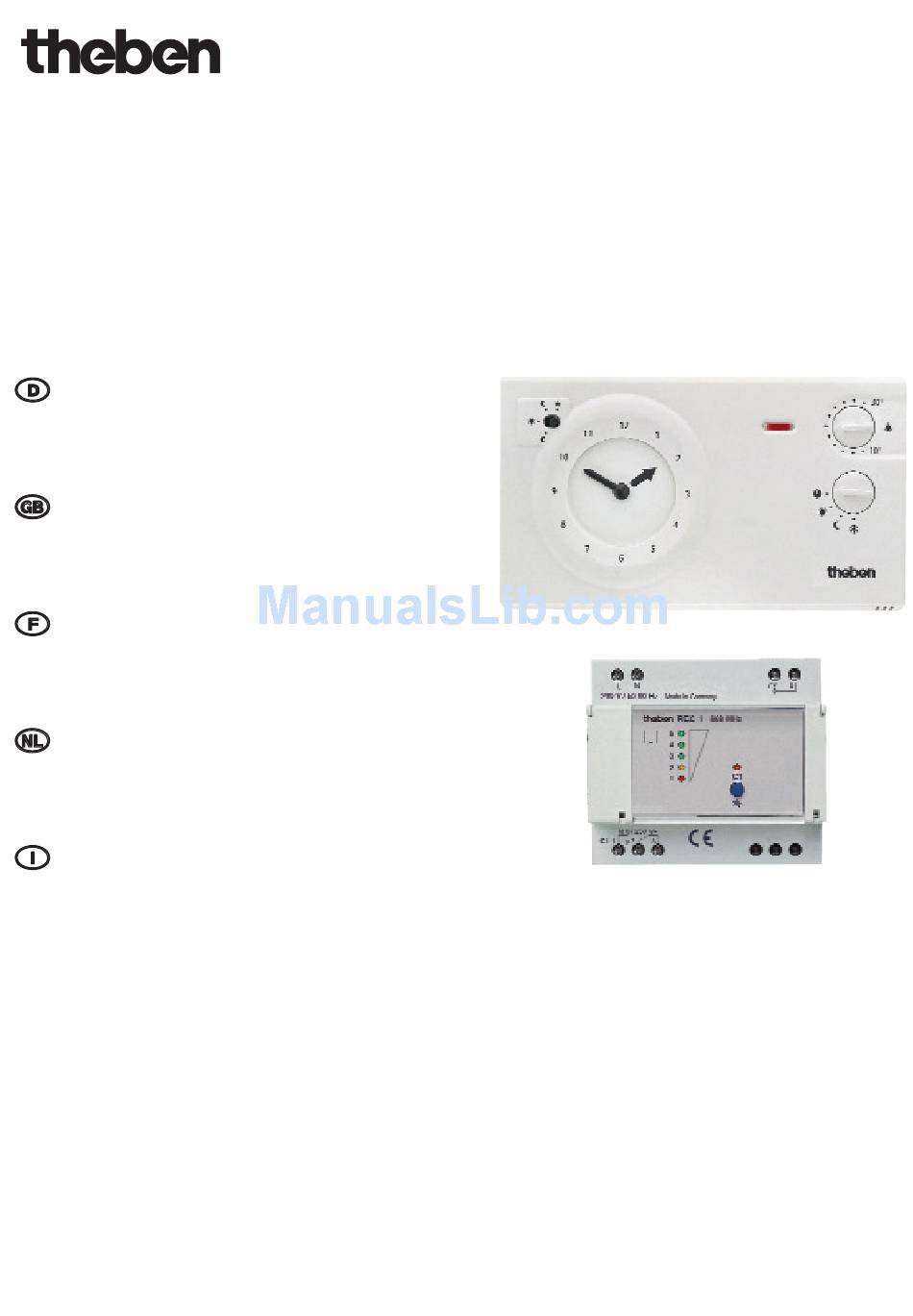

- Page 1 309 484 01 RAMSES 784 – HF Set 1 784 9 407 784 9 417 Bedienungsanleitung Uhrenthermostat Operating Instructions Clockthermostat Mode d’emploi Thermostat à horloge Gebruiksaanwijzing Klokthermostaat Istruzioni d’uso Cronotermostato...
-
Page 2: Safety Instructions
Designated Use The RAMSES 784 HF thermostat and receiver REC 1 868 MHz (single channel) are sui- table for wireless room temperature regulation. The RAMSES 784 HF timer thermostat radio-controls receivers REC 1 by time and room temperature. It may only be used in dry, domestic environments. - Page 3 RAMSES 784 HF RAMSES 784 HF Day/week program switchable with tappets Manual switching and display normal r or energy saving operation m (night) LED displays heating operation / LED flashing, battery change necessary Electronic feedback for adjustment to your heating...
- Page 4 Mounting and Electrical Connection -> Do not mount the device on an even conductive base. 1. Lower the front cover. 2. With a screwdriver turn the seal 11 to position 3. Lift the grey plinth from the control section. 4.Fix the plinth to the wall approx. 1.5 m above the floor, if possible on an internal wall, against which air can circulate without hindrance.
- Page 5 The clock thermostat is battery powered. Depending on switching frequency, you must change the batteries after approx. 12 months. First time of operation: 1 1 . . Note the polarity of the batteries. 2 2 . . Place the batteries in the battery compartment. Battery change necessary: LED 3 flashes Action: Change the old batteries within 3 weeks.
- Page 6 2. Optimising the reception quality The channel C1 at the receiver must be OFF, i.e. the corresponding status display(s) (LED) must be OFF. To connect RAMSES 784 HF to the power supply and set time etc., follow the instructions: -> Set rotary switch on the back (printed circuit) of RAMSES 784 HF to position 10...
- Page 7 When control unit REC 1 is in view: -> Set rotary switch on back (on printed circuit board) of RAMSES 784 HF to position 10 T T e e s s t t - - H H F F . The LED on channel 1 and the level indicator light up briefly.
- Page 8 The LED on C1 flashes for approx. 10 secs., during which the Coding function on the room thermostat must be run. -> Set rotary switch on the back (printed circuit) of RAMSES 784 HF to position 9 C C o o d d i i n n g g .
- Page 9 14°° e.g. 14°° 2 °° Setting Actual Time or Adjusting Summer/Winter Time -> Turn the big hand in a clock-wise or anti clock-wise direction until the actual time is displayed. Note: e.g. 14.00 hours, not 2.00 hours! 20 °C Normal program 16 °C Set back temperatur Manual switching/override switching in place...
- Page 10 -> Push the red tappet onto 6°° hours. -> Push the blue tappet onto 8°° hours. Dayprogram Product type RAMSES 784 HF can be switched from day to week program or vice versa. - - > > Take off the graduated ring.
- Page 11 - - > > set up again. 16 °C 20 °C p. ex. V = fr theben Nr. theben Nr. 9 343 236 9 343 111 E E x x a a m m p p l l e e f f o o r r w w e e e e k k p p r r o o g g r r a a m m : :...
- Page 12 Only for Qualified Electrician Electronic feed-back The clock thermostat is set in the factory to usual heating systems in practical operati- on. If, as a consequence of the heating system, an adjustment is necessary, select the re- commended setting on the potentiometer (rotary knob) 4. Pos 1: for floor heating/ bi-metal mixer/ oil furnance Pos 2:...
-
Page 13: Technical Data
Technical Data RAMSES 784 HF Batteries: 2 x 1,5 V (Alcaline LR6) Hysteresis: approx. 0,4–1,2 K Battery life: approx. 1 year Protection rating: IP 20 in accordance with EN 60529 Protection class: III in accordance with EN 60730-1 Ambient temperature: 0 °C–40 °C... - Page 14 Theben AG Hohenbergstr. 32 72401 Haigerloch DEUTSCHLAND Fon +49 (0) 74 74/6 92-0 Fax +49 (0) 74 74/6 92-150 Service Fon +49 (0) 74 74/6 92-369 Fax +49 (0) 74 74/6 92-207 hotline@theben.de Addresses, telephone numbers etc. at www.theben.de...
