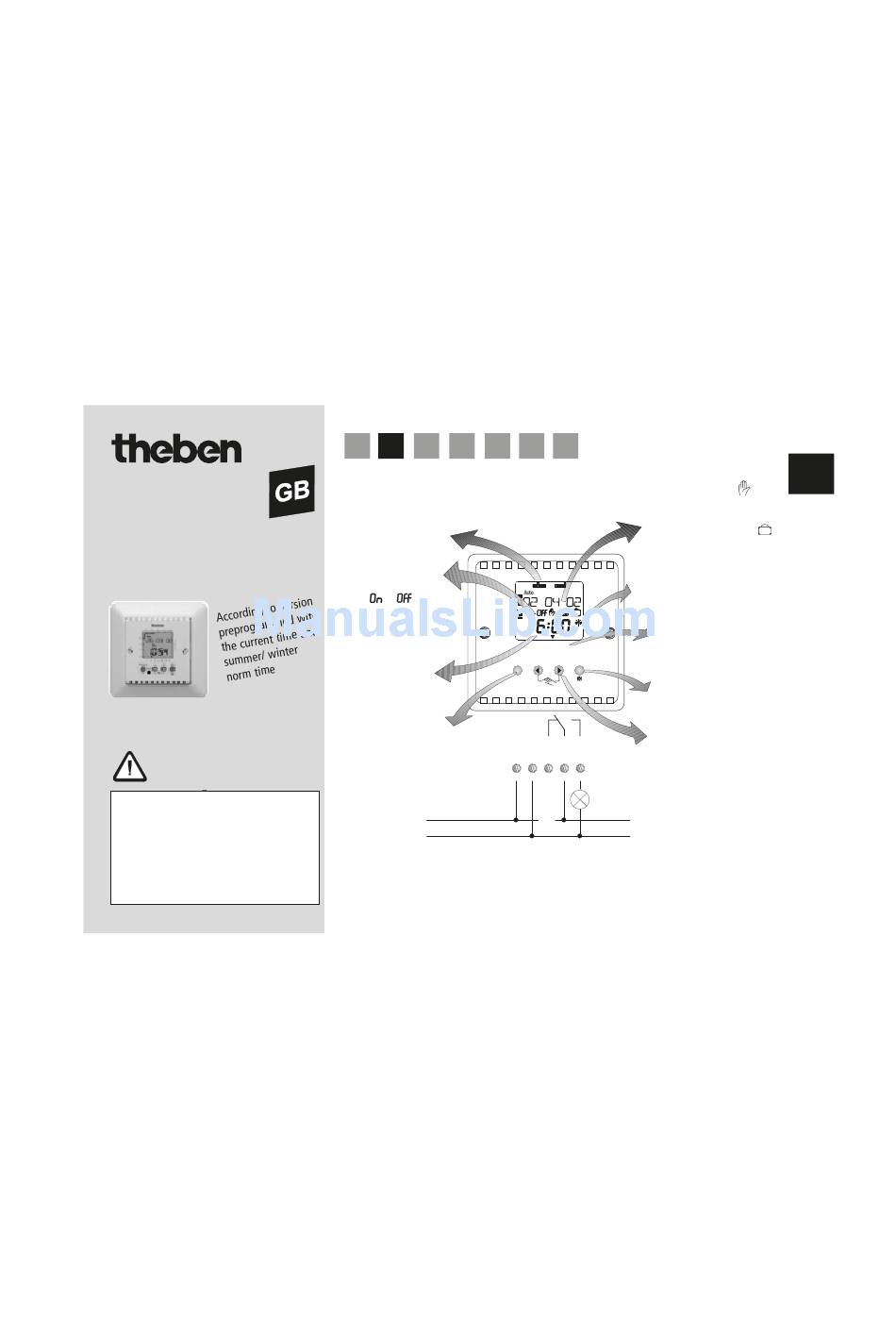

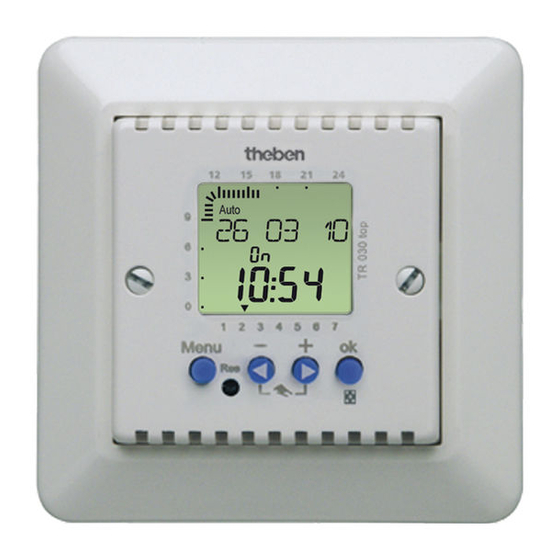

TR 030 top
TERMINA
1-channel 7 day timer
Safety
Safety
Information
Information
The connection and installation of electrical
appliances must be performed by a skilled
electrician only. Any intervention into or
modifications to the appliance shall lead to
the lapse of all warranty rights. Comply with
your national regulations and all relevant
safety stipulations.
D
GB
F
NL
I
Overview per day of
the programmed
switching times
5 = Friday
Channel
statuses
/
0
Service voltage OK
MENU
Two flashing dots.
Power reserve
mode
Three flashing dots.
Selection
L N
e.g.: Auto, Prog, ...
Pulse, Cycle
Abort input
L 1
N
E
P
Display of special functions:
Permanent ON/OFF
Random program active
Holiday program active
Displayed only when summer/
winter time changeover is
24
activated
Auto
Summer time r
Winter time f
Current days of the week
1 2 3 4 5 6 7
1 = Monday, 2 = Tuesday, ...
+
-
OK
The decision Yes confirms the
selection or programming
µ
1
2
3
Decision No means continue
L 2
N
310 010
Teil 1 von 2
z
