Avaya P120

Quick Start Guide

1. Unpack
2. Rack mount
3. Power up
4. Connect the Cables
5. Basic Configuration
6. Install Device Manager (optional)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P120 and is the answer not in the manual?

Questions and answers

Related Manuals for Avaya P120

Summary of Contents for Avaya P120

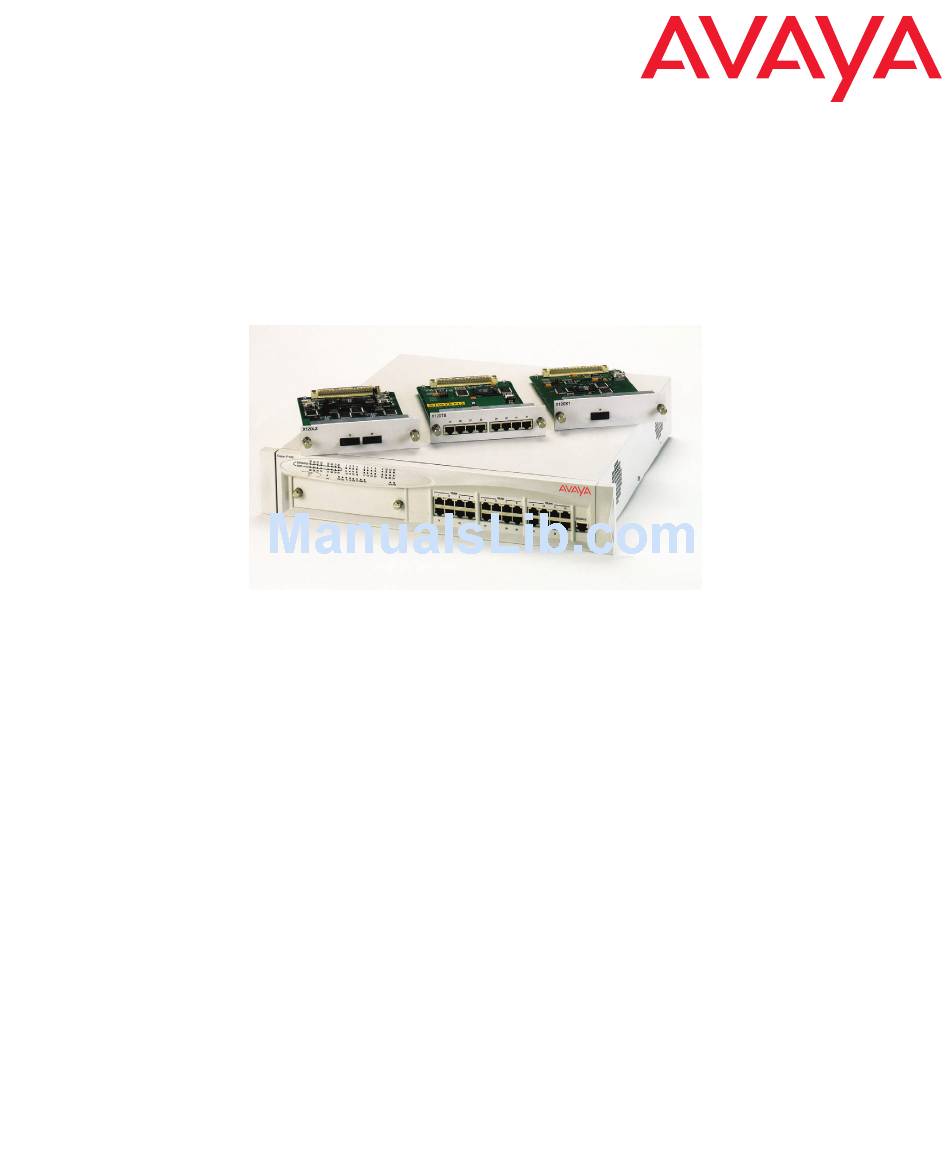

  • Page 1: Quick Start Guide

    Avaya P120 Quick Start Guide 1. Unpack 2. Rack mount 3. Power up 4. Connect the Cables 5. Basic Configuration 6. Install Device Manager (optional)
  • Page 2 1. Unpack Check the package contents for the following • Avaya P120 Workgroup Switch • Avaya P120 User’s Guide (on the CD) • Quick Start Guide (this document) • AC power cable • RJ-45 to DB-9 serial adapter cable •...

  • Page 3: Rack Mount

    2. Rack mount Warning! Disconnect all cables from the switch before proceeding with the rack installation! 1. Snap open the ends of the front panel to reveal the screw holes. 2. Position the unit in the rack. 3. Secure the unit to the rack, taking care not to overtighten the screws.
  • Page 4 PWR – When ON, Internal power supply is active (Blink, Backup P.S. active) – When On, CPU boot operation complete (OFF, CPU is booting) – Force Initial Version (see the P120 User’s Guide) – When ON, link is OK – When ON, indicates a collision on the port in HDX mode Tx, Rx –...

  • Page 5: Connect The Cables

    Connect the console cable Connect the supplied RJ-45 connector to the connector marked “Console” on the front panel of the Cajun P120. Connect the other end of the cable to a terminal or PC with terminal emula- tion software installed.
  • Page 6 Avaya P120 via the Network Verify that the Avaya P120 and your PC are on the same local network. If the Avaya P120 is set with its default IP address, then change the PC’s IP address so that it will be on the same subnet as the Avaya P120’s default...
  • Page 7 Default Switch Parameters Configuration Parameter Avaya P120 IP Address BootP Mode Default Gateway SLIP IP Address Management PC SLIP IP Address VLAN Spanning Tree TFTP Mode TFTP Server TFTP File Name Address Aging (CAM) Default Port Parameters Configuration Parameter Port Speed and Mode...
  • Page 8 Standalone Manager (optional) The Avaya P120 Standalone Manager allows you to configure and monitor the Avaya P120 from your PC. The manager is provided on a CD and comes with the Avaya P120 switch. System Requirements Minimum hardware and Operating System requirements are: •...
