ADTRAN HRE/T200 Turn-Up Manual page 2

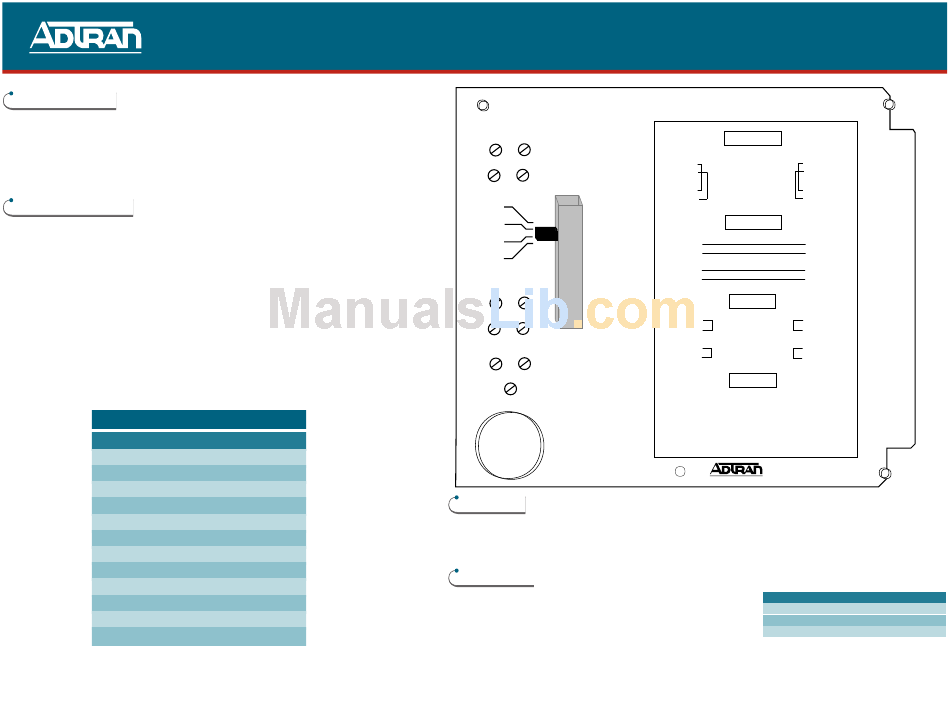

INSERTING THE TAC
For test access using the TAC, insert the TAC into the repeater housing as follows.
Hold card with the index finger through the finger hole viewing the edge of the card
so that SW1 is facing to the right. The edge of the card being viewed corresponds to
the faceplate of the HRE. Insert card into the slot with the same orientation as the
T200 HRE. Test Access Card (TAC), part number 1244065L1, or Test Access Module
(TAM), part number 1245065L1, can be used for testing the slot.
TESTING THE CO PAIRS
LOOPBACK
1. To loopback the circuit put SW1 in the LOOPBACK position. This loops the circuit
back to the CO and to the field.
LOOPTHRU
2. To loopthru the CO pairs to the field pairs put SW1 in the LOOPTHRU position.
This bridges the circuit pairs.
SHORT
3. To short the CO pairs put SW1 in the SHORT position. This connects transmit to
receive on each loop.
OPEN
4. To open the circuit put SW1 in the OPEN position. This allows for a voltage
measurement across pairs.
AVAILABLE ACCESS
Label Description
P7 LOOP1 Transmit towards NET
P13 LOOP 1 Receive towards CUST
P5 LOOP 1 Transmit towards CUST
P15 LOOP 1 Receive towards CUST
P41 LOOP 2 Transmit towards NET
P47 LOOP 2 Receive towards NET
P55 LOOP 2 Transmit towards CUST
P49 LOOP 2 Receive towards CUST
P17 –48RET
P1 Frame Ground
P11 Frame Ground
P35 –48 volts
T200 HRE TURN-UP GUIDE
LOOP 1
P7
T
NET
R
P13
LOOP
BACK
LOOP
THRU
SHORT
OPEN
LOOP 2
P41
T
NET
R
P47
P17
-48
RET
-48V
WARRANTY
Warranty for Carrier Networks products manufactured by ADTRAN and supplied under Buyer's
order for use in the U.S. is ten (10) years. For a complete faxback copy of ADTRAN's U.S. and
Canada Carrier Networks Equipment Warranty: (877) 457-5007, Document 414.
