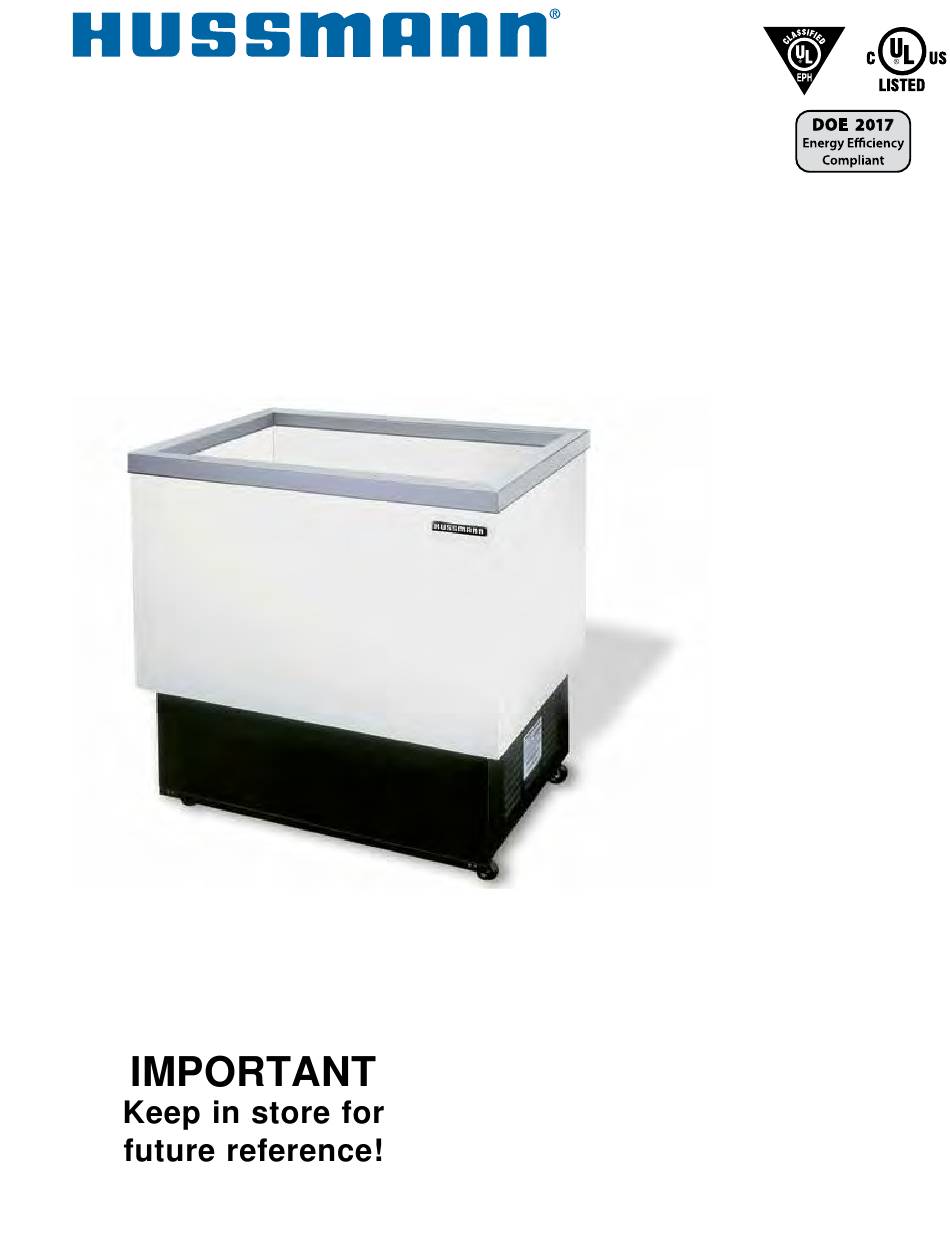

  • Page 1 Æ Low Temperature Spot Merchandisers Installation & Operation Manual P/N 2400205_J September 2020 Spanish 0531305 MANUAL - I/O SELF CONTAINED SM...
  • Page 2 These merchandiser are designed only for frozen products. IMPORTANT KEEP IN STORE FOR FUTURE REFERENCE Quality that sets industry standards! 12999 St. Charles Rock Road • Bridgeton, MO 63044-2483 U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 www.hussmann.com © 2020 Hussmann Corporation...

  • Page 3: Table Of Contents

    Stocking ......3-2 Hussmann Product Control ... 1-1 Thermometer .

  • Page 4: Ansi Definitions

    Indicates[s] situations, which if not avoided, could result in damage to equipment. 1. Added Appendix A, Technical Data P/N 2400205_J P/N 2400205_J U.S. & Canada 1-800-922-1919 • Mexico 1-800-522-1900 • www.hussmann.com U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • www.hussmann.com...

  • Page 5: Installation

    The serial number and shipping date of all sources could impair their efficiency. Like equipment is recorded in Hussmann’s files for other merchandisers, these merchandisers are warranty and replacement part purposes. All sensitive to air disturbances.

  • Page 6: Self Contained Location

    It is your responsibility to provide accurate Proposition 65 warning labels to your customers when necessary. For more information on Proposition 65, please visit the California State government website. P/N 2400205_J U.S. & Canada 1-800-922-1919 • Mexico 1-800-522-1900 • www.hussmann.com...

  • Page 7: Model Description

    Do NOT stand or walk on top of merchandiser. Do not store items or flammable materials atop the unit. Do NOT remove shipping crate until the merchandiser is positioned for installation. SM Spot Merchandisers HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.

  • Page 8: Serial Plate Location

    This includes, but is not limited to, such items as doors, lights, fans, heaters, and thermostats. P/N 2400205_J U.S. & Canada 1-800-922-1919 • Mexico 1-800-522-1900 • www.hussmann.com...

  • Page 9: Startup Checklist

    LEGAL DISCLAIMER: Hussmann shall not be liable for any repair or replacements made without the written consent of Hussmann, or when the product is installed or operated in a manner contrary to the printed instructions covering installation and service which accompanied such product.
  • Page 10 NOTES: P/N 2400205_J U.S. & Canada 1-800-922-1919 • Mexico 1-800-522-1900 • www.hussmann.com...

  • Page 11: Electrical / Refrigeration

    This includes, but is not limited to, such items as Merchandiser must be grounded. doors, lights, fans, heaters, and thermostats. Do not remove the power supply cord ground. SM Spot Merchandisers HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.

  • Page 12: Refrigeration (Self Contained)

    When the unit is finished defrosting, clean the inside. Install the plug on the drain tube, and connect the unit to the correct power supply. P/N 2400205_J U.S. & Canada 1-800-922-1919 • Mexico 1-800-522-1900 • www.hussmann.com...

  • Page 13: Start Up / Operation

    1. The T-stat controller controls refrigeration Defrosts are manual and required when a layer temperature. This is factory installed in the of ice builds up on the interior walls. control panel. SM Spot Merchandisers HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.

  • Page 14: Load Limits

    -40º F to 120º F / -40º F to 50º F on 2º increments. Product will be degraded and may spoil if allowed to sit in a non-refrigerated area. P/N 2400205_J U.S. & Canada 1-800-922-1919 • Mexico 1-800-522-1900 • www.hussmann.com...

  • Page 15: Maintenance

    •After cleaning is completed, turn on power to the merchandiser. •Do not use high pressure water hoses. Product will be degraded and may spoil if allowed to sit in a non-refrigerated area. SM Spot Merchandisers HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.

  • Page 16: Cleaning Stainless Steel Surfaces

    This includes, but is not limited to, such items as doors, lights, fans, heaters, and thermostats. CAUTION CAUTION P/N 2400205_J U.S. & Canada 1-800-922-1919 • Mexico 1-800-522-1900 • www.hussmann.com NOTICE NOTICE...

  • Page 17: Cleaning Coils

    DO NOT FLOOD! Use only enough water necessary to clean surface. Water must not drip down the case! Never use ammonia based cleansers, abrasive cleansers, or scouring pads. SM Spot Merchandisers HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.

  • Page 18: Equipment Maintenance Check List

    See controller or 1/0 Manual for proper controller operation. Confirm door switches function. Verify that all the panels, shields and covers are in place. Technician Notes: 0525210_C Form HSCW03 Rev-29 OCTOBER13 P/N 2400205_J U.S. & Canada 1-800-922-1919 • Mexico 1-800-522-1900 • www.hussmann.com...

  • Page 19: Service

    2. Defective relay 2. Replace 3. Restriction or moisture 3. Leak check, replace drier, 4. Inadequate air condenser evacuate and recharge 5. Defective condenser fan 4. Clean condenser motor 5. Replace SM Spot Merchandisers HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.

  • Page 20: Parts List

    Compressor‐ Hermetic (1/4) AE2410Z‐AA1A 0546974 Compressor‐ Hermetic (1/3) 127/60AEA2411ZXA 3008656 Condenser 2100516 Models SM‐115W SM‐110W Sheel Metal Replacement Parts Painted Description Part Number Access Panel ‐Black 0201554 Base Cover‐ Black 0201566 P/N 2400205_J U.S. & Canada 1-800-922-1919 • Mexico 1-800-522-1900 • www.hussmann.com...
  • Page 21 Product will be degraded and may spoil if doors, lights, fans, heaters, and thermostats. allowed to sit in a non-refrigerated area. SM Spot Merchandisers HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.

  • Page 22: Refrigeration Data

    15 oz 0.425 kg SM-115 15.5 oz 1.439 kg Note: This data is based on store temperature and humidity that does not exceed 75°F and 55% R.H. unless otherwise stated. P/N 2400205_J U.S. & Canada 1-800-922-1919 • Mexico 1-800-522-1900 • www.hussmann.com...

  • Page 23: Electrical Data

    8.83 ft /case (250.03 liters /case) ESTIMATED SHIPPING WEIGHT Case SM-110 SM-115 lb (kg) 162 ( 73 ) 178 ( 81 ) Actual weights will vary according to optional kits included SM Spot Merchandisers HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
  • Page 24 MODEL BY / DWG BY- RG / RG CHECKED BY- RG APPROVED BY- A. HDZ DATE DRAWN - 2001/10/03 UNLESS OTHERWISE SPECIFIED DIMENSIONS A UNLESS TOLERANCES ARE: DECIMALS .XX .03, .XXX .010 ANGLES P/N 2400205_J U.S. & Canada 1-800-922-1919 • Mexico 1-800-522-1900 • www.hussmann.com...
  • Page 25 To obtain warranty information or other support, contact your Hussmann representative. Please include the model and serial number of the product. Hussmann Corporation, Corporate Headquarters: Bridgeton, Missouri, U.S.A. 63044-2483 01 October 2012...
  • Page 26 Hussmann Corporation 12999 St. Charles Rock Road Bridgeton, MO 63044-2483 www.hussmann.com...
