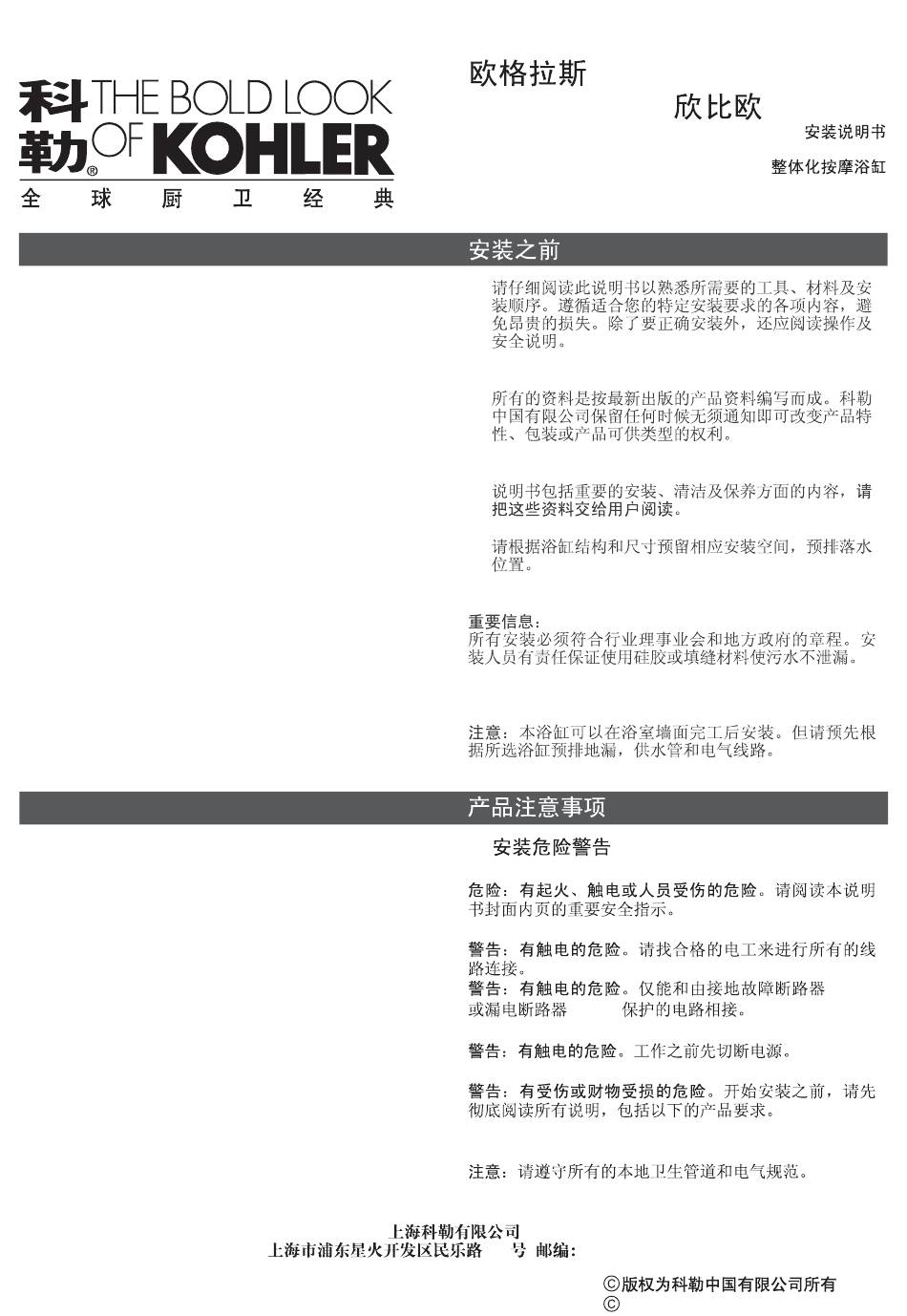

BEFORE YOU BEGIN
·
Please read these instructions carefully to
familiarize yourself with the required tools, materials,
and installation sequences. Follow the sections that
pertain to your particular installation. This will help
you avoid costly mistakes. In addition to proper
installation, read all operating and safety instructions.
·
All information is based on the latest product
information available at the time of publication.
Kohler China Ltd. reserves the right to make
changes in product characteristics, packaging, or
availability at any time without notice.
·
These instructions contain important care, cleaning,
and warranty information-
instructions for the consumer.
·
Please provide adequate available space for the
bath unit in accordance with rough-in. Arrange the
location of drain in advance.
IMPORTANT:
All installations must comply with council and local
authority by-laws. It is the responsibility of the installer
to ensure that the waste is made watertight by means
of silicone sealant or caulking compound.
NOTE:
Bath can be installed after the wall is completed.
Bath drain supplies and electric wiring should be
arranged preliminarily according to the selected bath.
PRODUCT NOTICES
A. Installation Hazard Notification
DANGER: Risk of fire, electric shock, or injury to
persons.
Read important safety instructions on inside
front cover of these instructions.
WARNING: Risk of electrical shock.
electrician should make all electrical connections.
WARNING: Risk of electrical shock.
a circuit protected by a Ground-Fault Circuit-Interrupter
(GFCI) or Earth-Leakage Circuit-Breaker (ELCB).
WARNING: Risk of electrical shock.
power before servicing.
WARNING: Risk of injury or property damage.
Please read all instructions thoroughly before beginning
installation, including the following Product
Requirements.
NOTICE:
Follow all local plumbing and electrical codes.
1073414-T01-B
please leave these
A licensed
Connect only to
Disconnect
32" HOURGLASS 32"
K-1753T/K-1754T K-1773T/K-1774T
·
·
·
·
A.
(ELCB)
368
201419
-1-
Copyright Kohler China Ltd., 2007
SYMBIO
INSTALLATION INSTRUCTIONS
INTEGRATED WHIRLPOOL
(GFCI)
, 2007
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kohler K-1753T
Summary of Contents for Kohler K-1753T
- Page 1 · · All information is based on the latest product information available at the time of publication. Kohler China Ltd. reserves the right to make changes in product characteristics, packaging, or availability at any time without notice. · ·...
-
Page 2: Product Requirements
Install the unit to a level subfloor. B. Product Inspection ’ Uncrate and inspect bath for damage. All Kohler s baths have been manufactured with sophisticated craftsmanship. However, please inspect for any possible damage that may have occurred in transit. -
Page 3: Installation Requirements
INSTALLATION REQUIREMENTS A. Tools Required B. Materials Required · · · · Adjustable pipe Plumbers putty wrench · · Wall coverings(as necessary) · · Rule · · Silicone sealant · · Level · · Gypsum cement(optional) · · Safety shoes ·... - Page 4 INSTALL THE BATH A. Locate the bath in the proposed position Adjust the feet under the bath to make it level. Tighten the nut to fix the height of the bath. IMPORTANT: The bath must be installed level on all top edges. Floor should be flat, level and free of any bumps or protrusions.
- Page 5 220V/50Hz 10-15 Union Connections IMPORTANT: Your spa has been factory tested and approved. It is the responsability of the installer to test run the spa check all the fittings for leaks and test the control functions. NON OBSERVANCE WILL INVALIDATE FACTORY WARRANTY.
-
Page 6: Troubleshooting Guide
ON/OFF AIR SWITCH CONNECTION Ensure pump is connected to On/Off Air switch Control. Bath Flange To the Air Switch Air Switch To the Pump Pump AIR SWITCH FUNCTION & OPERATION On/Off Spa Control (Air Switch) On/Off Push once to start the motor. Push again to stop the motor. - Page 7 OPEN 1) Check that the adjustable jets are open. CLOSED 2) Adjust the air turbulence by turning the venturi controls as shown. Increase Air Masage Decrease Air Masage B. Spa still not operates Check: · · Fuse at switchboard has not blown. ·...
- Page 8 3) Pull the sleeve and spring out of the jet body. Note the sleeve may be jammed in place by debris and long nosed pliers may be needed to remove it. Jet Body Sleeve 4) Slide the spring off the sleeve. 5) Clean out any hair or grime from inside the jet body.
- Page 9 3) Replace the spring and sleeve into the jet body. 4) Re-assemble the two halves of the eyeball and fit into the sleeve. Note that the 6 legs on the eyeball fit between the castleations on the sleeve. Fit the washer over the stalk on the front of the eyeball.
-
Page 10: Clean-Up After Installation
Do not use abrasive cleaners or solvents on Kohler faucets and fittings. CLEAN-UP AFTER INSTALLATION When cleaning up after installation, do not use abrasive cleansers as they may scratch and dull the surface. -
Page 11: Important Consumer Information
IMPORTANT CONSUMER INFORMATION Consumer Responsibilities Cleaning Acrylic Surfaces: Do not use abrasive cleansers on any acrylic surfaces, as they will scratch and dull the surface. Wipe out the bath after each use to prevent a build-up of soap and scum. If the acrylic surface becomes dull, an automotive type rubbing compound may be used on the unit, followed by an application of paste wax.
