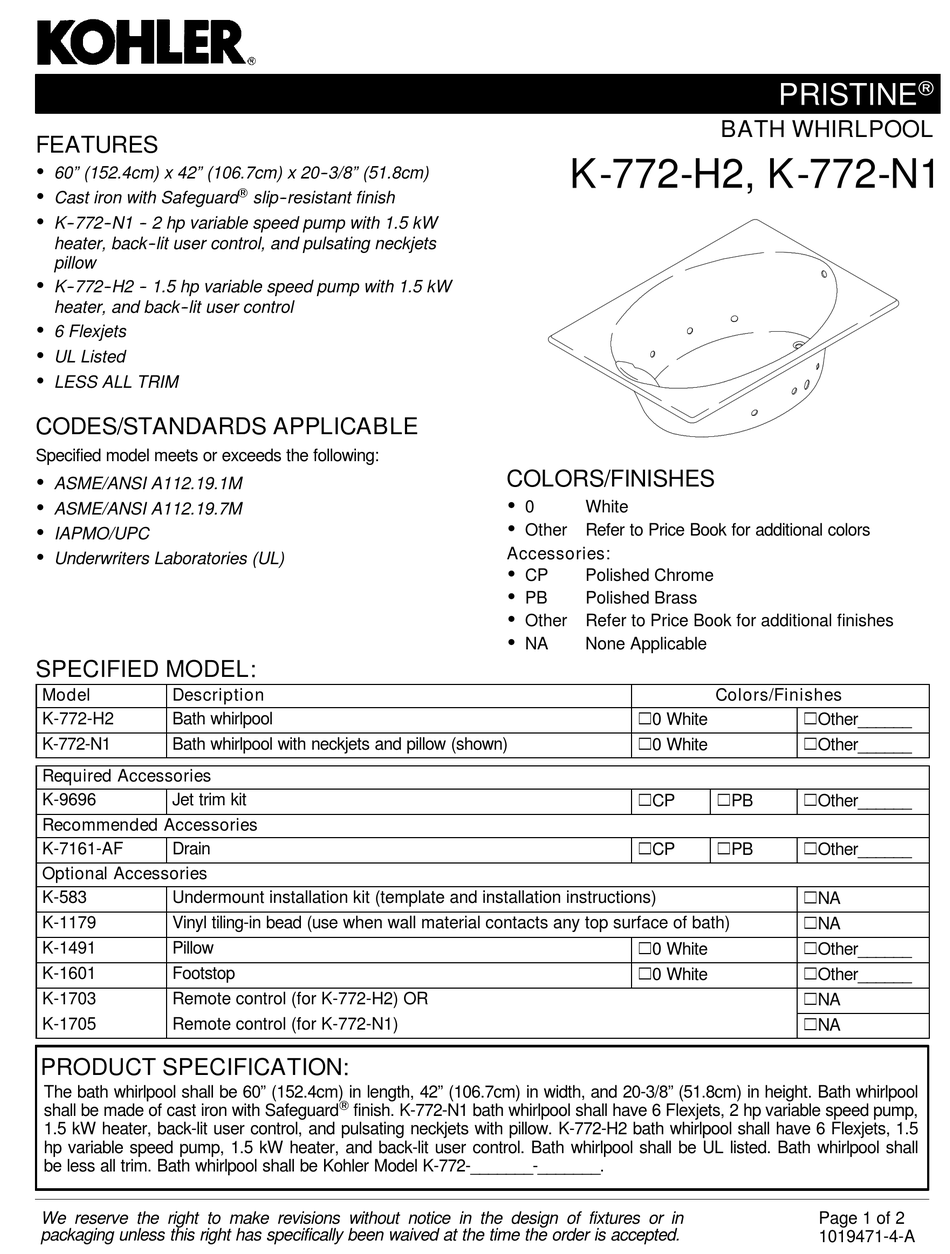

Kohler Pristine K-1179 Specification Sheet

FEATURES
• 60" (152.4cm) x 42" (106.7cm) x 20- -3/8" (51.8cm)
• Cast iron with Safeguard
•
K- -772- -N1 - - 2 hp variable speed pump with 1.5 kW
heater, back- -lit user control, and pulsating neckjets
pillow
•
K- -772- -H2 - - 1.5 hp variable speed pump with 1.5 kW
heater, and back- -lit user control
•
6 Flexjets
• UL Listed
• LESS ALL TRIM
CODES/STANDARDS APPLICABLE
Specified model meets or exceeds the following:
• ASME/ANSI A112.19.1M
•
ASME/ANSI A112.19.7M
• IAPMO/UPC
• Underwriters Laboratories (UL)
SPECIFIED MODEL:
Model Description
K-772-H2 Bath whirlpool
K-772-N1 Bath whirlpool with neckjets and pillow (shown)
Required Accessories
K-9696 Jet trim kit
Recommended Accessories
K-7161-AF Drain
Optional Accessories
K-583 Undermount installation kit (template and installation instructions)
K-1179 Vinyl tiling-in bead (use when wall material contacts any top surface of bath)
K-1491 Pillow
K-1601 Footstop
K-1703 Remote control (for K-772-H2) OR
K-1705 Remote control (for K-772-N1)
PRODUCT SPECIFICATION:
The bath whirlpool shall be 60" (152.4cm) in length, 42" (106.7cm) in width, and 20-3/8" (51.8cm) in height. Bath whirlpool
shall be made of cast iron with Safeguard
1.5 kW heater, back-lit user control, and pulsating neckjets with pillow. K-772-H2 bath whirlpool shall have 6 Flexjets, 1.5
hp variable speed pump, 1.5 kW heater, and back-lit user control. Bath whirlpool shall be UL listed. Bath whirlpool shall
be less all trim. Bath whirlpool shall be Kohler Model K-772-_______-_______.
We reserve the right to make revisions without notice in the design of fixtures or in
packaging unless this right has specifically been waived at the time the order is accepted.
 slip- -resistant finish

finish. K-772-N1 bath whirlpool shall have 6 Flexjets, 2 hp variable speed pump,
K-772-H2, K-772-N1
COLORS/FINISHES
•
0 White
• Other Refer to Price Book for additional colors
Accessories:
•
CP Polished Chrome
•
PB Polished Brass
• Other Refer to Price Book for additional finishes
• NA None Applicable
0 White
V
0 White
V
CP
V
CP
V
0 White
V
0 White
V
PRISTINE
BATH WHIRLPOOL
Colors/Finishes
Other______
V
Other______
V
PB Other______
V V
PB Other______
V V
NA
V
NA
V
Other______
V
Other______
V
NA
V
NA
V
Page 1 of 2
1019471-4-A

