Vesta Smart Home Security Alarm System Installation Manual page 6

6
2

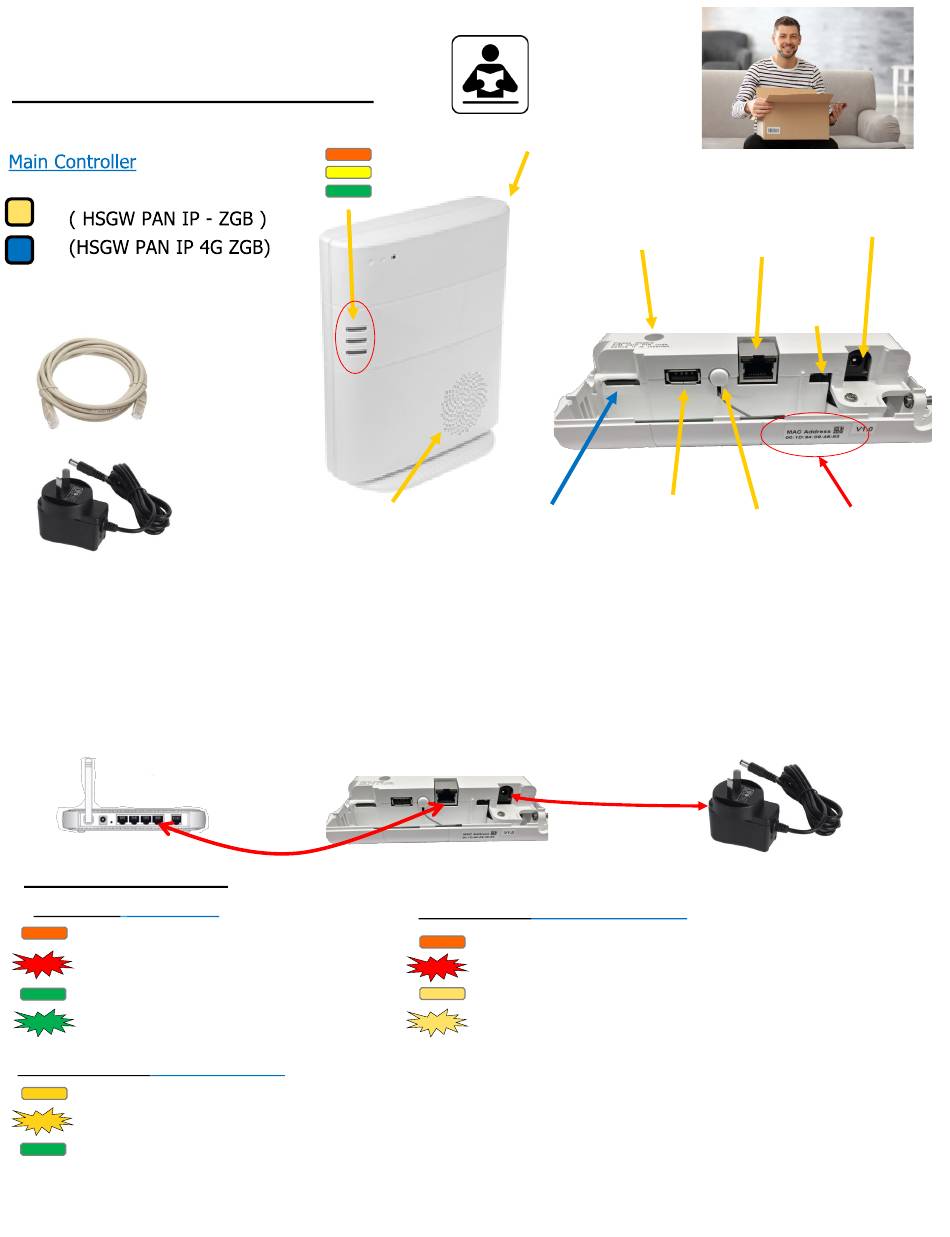

Unpack all the parts
A
Internet lead x 1
12 Volts DC Plug Pack
Unpack the kit content on a table. Remove the mounting back plate from the control unit by unscrewing the two
bottom screws and top screws. Open back plate from Main Controller unit to expose the connections as illustrated in
the diagrams above. A power adaptor is supplied that plugs into the main wall socket and control unit. Plug in the
power adaptor and connect the box to your internet router using the cable provide. In addition to the power
adapter, there is a rechargeable battery inside the control unit that serves as a backup in case of a power
failure. A fully charged battery can provide backup power for a period of at least 10 hours. It takes approximately
72 hours fully charge the battery.
Main home
Router / Internet Connection
LED Indicators
TOP LED 1 (Panel Status)
RED = Solid ON : Alarm is ARM
RED = Flashing : Home is ARM
GREEN = Solid ON : Alarm Disarm
GREEN = Flashing : Learning Mode
BOTTOM LED 3 (Operation Status)
YELLOW ON = Network Problems
YELLOW Flashing = Disconnected from VESTA Cloud Server
GREEN ON = All SYSTEM NORMAL
LED Indicators
Internal Siren
VESTA Main Controller
Data cable supplied
Middle LED 2
Control Unit
Tamper switch
4G Sim Slot GSM Z-Wave USB
(Alarm & Fault Status)
RED = Alarm been Triggered
RED = Flashing On going Alarm Event
YELLOW = DEVICE Fault Temper / LOW Battery
YELLOW- Flashing = Mains power Failed
12Volt Plug Pack
Internet
connection
Battery
backup
switch
Default Reset MAC Address
VESTA Power Plug Pack
4
6
