HK Instruments DPT-IO-MOD Series Installation Instructions page 2

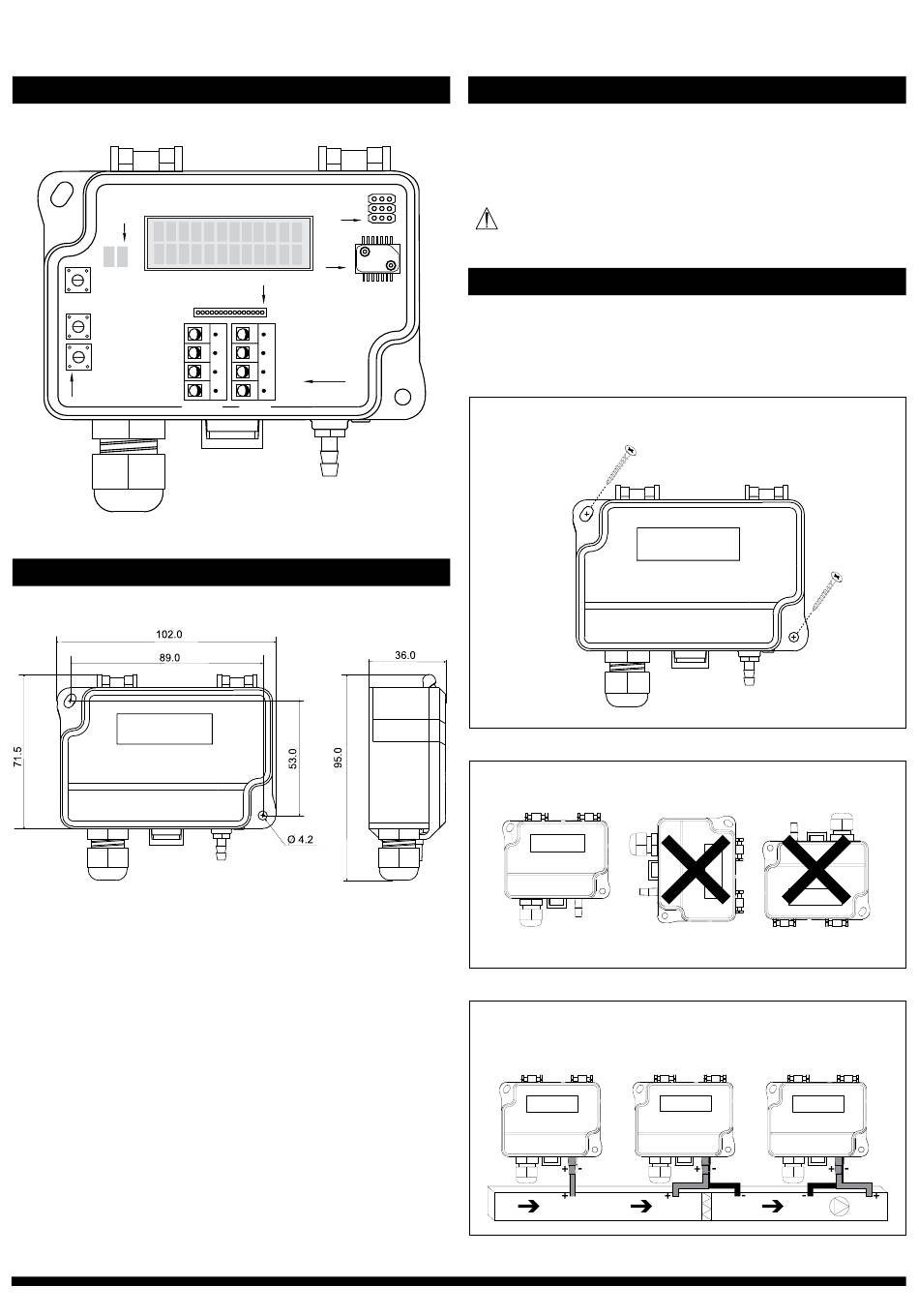

SCHEMATICS
LEDs
Joystick 1
Select
Joystick 2
Up A
Joystick 3
B
Down
24 V
GND
Menu buttons
DIMENSIONAL DRAWINGS
DPT
Copyright HK Instruments 2019
Input terminal
configuration
jumpers
Pressure
sensor
Display connection
Input 1
GND
Terminal
Input 2 blocks
GND
Output Input
INSTALLATION
1) Mount the device in the desired location (see step 1).
2) Open the lid and route the cable through the strain relief and
connect the wires to the terminal block(s) (see step 2).
3) The device is now ready for configuration.
WARNING! Apply power only after the device is properly wired.
STEP 1: MOUNTING THE DEVICE
1) Select the mounting location (duct, wall, panel).
2) Use the device as a template and mark the screw holes.
3) Mount with appropriate screws.
Figure 1b - Mounting orientation
YES
Figure 1c - Application connections
Static pressure
www.hkinstruments.fi
Figure 1a - Surface mounting
DPT
NO
Filter/Damper
monitoring
Not
connected
NO
Fan/Blower
monitoring
Installation version 8.0 2019
