Tektronix CA PLUG-IN Instruction Manual page 9

VOLTS/CM -- Provides
calibrated
deflection factors from
.05 to 20 volts/cm when
variable is in calibrated
Position.
DC-AC -- Determines
whether input to plug-
in is DC or AC coupled.
MODE--A five Position
switch to allow either
amplifier to be used
independently, to pro-
vide for switching the
two amplifiers at an
arbitrary rate, to syn-
chronize the Switching
with the oscilloscope's
sweep, or to provide
fo r adding the: Outputs
o f the amplifiers
algebraically.
AA
vertical
GA1N ADJ--A
driver control used for
setting the gain of the
plug-in, thereby setting
the accuracy of the
VOLTS/CM switch.

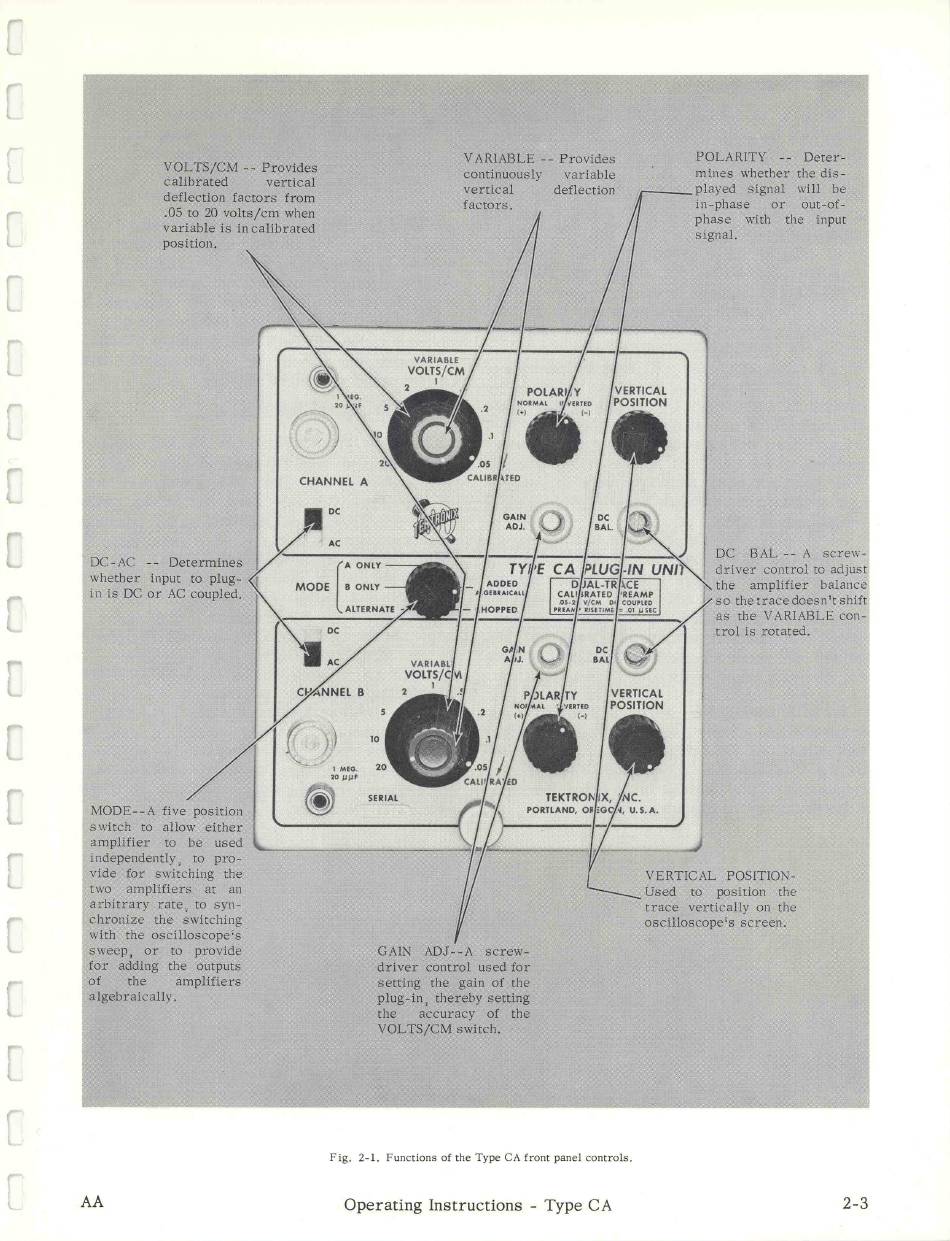

F ig . 2-1. Functions o f the Type C A front panel
Operating Instructions - Type CA
VARIABLE -- Provides
continuously variable
vertical deflection
factors.
screw-
Controls.
POLAR1TY -- Deter­
mines whether the dis-
Signal
. played will be
in-phase or out-of-
phase with the input
Signal.
DC BAL -- A screw-
driver control to adjust
, the amplifier balance
' so the trace doesn't shift
as the VARIABLE con­
trol is rotated.
VERTICAL POSITION-
Used to Position the
trace vertically on the
oscilloscope's screen.
2-3
