TECHNICAL MANUAL
EN
Nuage PLS

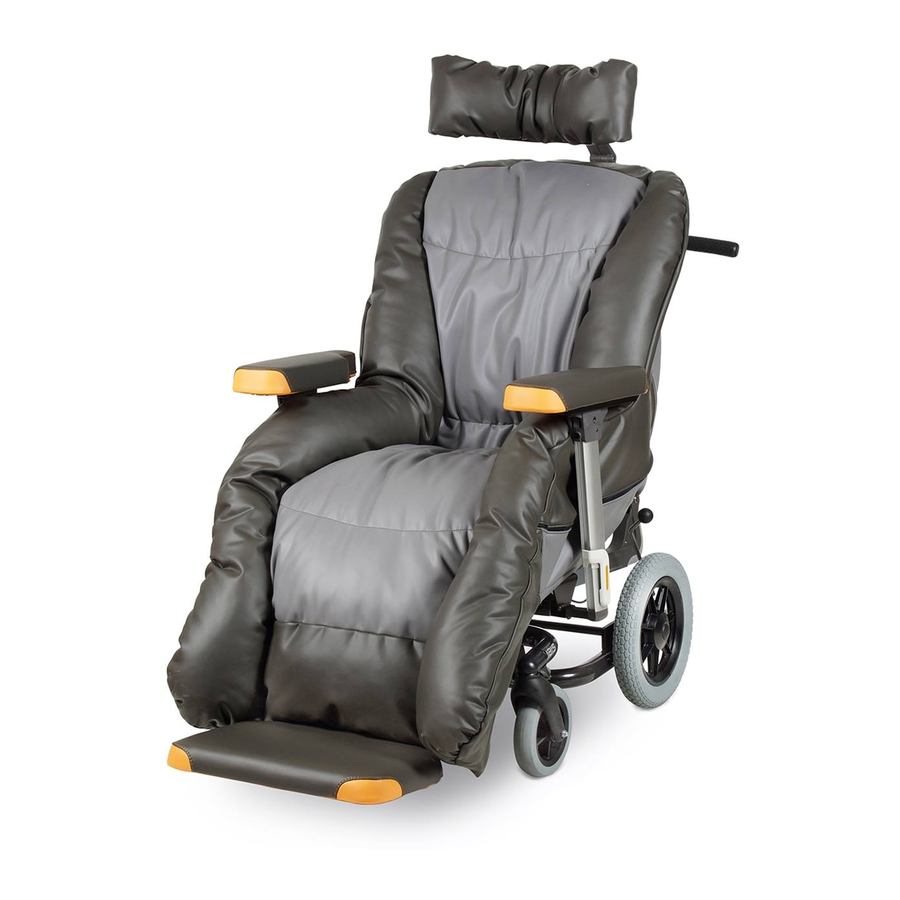

NUAGE PLS
NUAGE PLS ACTIVE
NUAGE PLS ACTIVE XS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Nuage PLS and is the answer not in the manual?

Questions and answers

Summary of Contents for Breezy Nuage PLS

  • Page 1 Seating system TECHNICAL MANUAL Nuage PLS NUAGE PLS NUAGE PLS ACTIVE NUAGE PLS ACTIVE XS...
  • Page 2 Nuage...
  • Page 3 Nuage © 2016 Sunrise Medical All rights reserved. The information provided herein may not be reproduced and/or published in any form, by print, photoprint, microfilm or any other means whatsoever (electronically or mechanically) without the prior written authorization of Sunrise Medical. The information provided is based on general data concerning the construction known at the time of the publication of this manual.
  • Page 4 Nuage...
  • Page 5: Table Of Contents

    Assembly instructions – Nuage PLS series on Ibis wheelchairs with Sedeo Original 5.5.1 Mounting a Nuage PLS series seating system on an Ibis wheelchair with Sedeo Original Assembly instructions – Nuage PLS series on Base One and Kontiki wheelchairs 5.6.1 Mounting a Nuage PLS series seating system on a Base One or Kontiki wheelchair Assembly instructions –...
  • Page 6: Introduction

    1.1 This manual This service manual explains the mounting of Nuage PLS, Nuage PLS Active and Nuage PLS Active XS seating systems onto a manual wheelchair frame. Nuage is compatible with most common tilt in space wheelchair frames in the market. In most cases the mounting can be done with a number of standard parts, supplied with the seating system.
  • Page 7: Safety

    The following sticker/label can be found on the product: Warning! Lighted cigarettes and/or burning matches dropped onto the Nuage PLS seating system can cause a fire resulting in death, serious injury, or damage. Wheelchair occupants are at particular risk of death or serious injury from these fires and resulting fumes because they may not have the ability to move away from the wheelchair.
  • Page 8: Parts In Box And Tools To Use

    Box does not include mounting sets. These interfaces are specific to the wheelchair model used to carry the seating system and need to be ordered separately. Choose a system mounting set, a calf plate mounting set and optionally a headrest mounting set. Nuage PLS Active XS seating system • Four shell segments (2x backrest segments, 2x seating segments) •...
  • Page 9: Spare Parts

    Nuage Spare parts 4.1 Use of the parts lists This document is meant as a reference to order parts for Nuage seating systems. How to order When ordering parts, please specify: • ID-number (see the identification plate) • Group (to which the relevant part belongs) •...
  • Page 10: Nuage Systems

    10 | Nuage 01 Nuage systems Article number Description Qt y Article number Description 1017721 Nuage PLS, complete 1017722 Nuage PLS Active, complete 1017723 Nuage PLS Active XS, complete...
  • Page 11: Mounting Sets

    Description 1017728 Mounting set Nuage PLS series for Ibis with Sedeo Pro 1017727 Mounting set Nuage PLS series for Ibis and Ibis XC/XA with Sedeo Original 1017726 Mounting set Nuage PLS series for Kontiki and BaseOne 1017729 Mounting set Nuage PLS series for Canto...
  • Page 12: Spare Parts

    Shell part, left for seat, Nuage PLS series 1017764 Shell part, right for seat, Nuage PLS series 4a,4b,6a,6b 1017765 Shell part, set for Nuage PLS / Nuage PLS Active without calf support 5a,5b,6a,6b 1017782 Shell part, set for Nuage PLS Active XS without calf support 1017766...
  • Page 13: Covers

    Bamboo terry cover, Nuage PLS Active XS 1018588 Terry cover, Nuage PLS Active XS 1017753 Bamboo terry cover for flexible armrest pads, piece, Nuage PLS series 1018589 Terry cover for flexible armrest pads, piece, Nuage PLS series 1017754 Bamboo terry cover for headrest, Nuage PLS series...
  • Page 14: Accessories

    1017746 Headrest small, Nuage PLS series 1017747 Drop-shaped head roll cushion, Nuage PLS series 1017739 P-shaped armrest pad 16 cm wide, left, Nuage PLS series 1017742 P-shaped armrest 16 cm wide, right, Nuage PLS series 8a,8b 1017736 P-shaped armrests pad 16 cm wide, set, Nuage PLS series...
  • Page 15: Service Instructions

    Nuage PLS Active – Seating shell for combined body support and stimulation of (postural) activity in semi-passive users with reduced postural stability. Nuage PLS Active XS – Seating shell for combined body support and stimulation of (postural) activity in semi-passive children or small adults with reduced postural stability.
  • Page 16: Mounting The Seat Shell Parts

    Active without calf support • Adjust the Sedeo Pro seat depth to maximum depth for • 1017782 Shell part, set for Nuage PLS Active XS without easy access. calf support If applicable, also adjust the width of the Sedeo Pro leg •...
  • Page 17 Nuage | 17...
  • Page 18: Mounting The Back Shell Parts

    The following operations are required to mount the back • 1017728 Mounting set Nuage PLS series for Sedeo Pro shell parts: • 1017765 Shell part, set for Nuage PLS / Nuage PLS • Identify the metal parts for mounting the back shells. Active without calf support •...
  • Page 19: Fitting The Webbing

    Relevant article numbers shells with Velcro. • 1017766 Webbing, set for back, Nuage PLS / Nuage PLS Active • Loop the adjustable webbing straps through the other •...
  • Page 20: Mounting The Calf Plates

    • 1017733 Central calf support, Nuage PLS Active Use the bolts to attach the calf support mounting to the • 1017773 Central calf support, Nuage PLS Active XS Sedeo Pro central legrest. Mount the metal rod (15 x 15) on the calf support Tools used mounting set, (use distance bushes).
  • Page 21: Fitting The Cover

    Nuage | 21 5.4.5 Fitting the cover Instructions Relevant article numbers The following operations are required to assemble the fit the • 1017756 Cover complete, incl. spaghetti stuffing, Nuage cover: • Drape the stretch cover over the seat, positioning the •...
  • Page 22: Mounting The Foot Plate

    Sedeo Pro foot plate: • 1017735 Footplate small, Nuage PLS series • Pinch holes for the bolts in the footplate cover. • Place the Nuage PLS series footplate and the Sedeo Pro Tools used footplate upside down.
  • Page 23: Mounting And Placing Armrest Pads

    • 1017737 P-shaped armrest pads 12 cm wide, set, Nuage Instructions PLS series The following operations are required to mount and place the Nuage PLS series armrest pads on Sedeo Pro removable Tools used armrests: • Screw driver • Pinch holes for the bolts in the armrest pad covers.
  • Page 24: Mounting And Placing A Headrest

    1017746 Headrest small, Nuage PLS series • Attach the headrest to the Sedeo Pro headrest metal • 1017749 Mounting set headrest, Nuage PLS series for parts screwing two Torx socket head screws in the Sedeo Pro designated holes in the Nuage PLS series headrest.
  • Page 25: Assembly Instructions - Nuage Pls Series On Ibis Wheelchairs With Sedeo Original

    Nuage | 25 5.5 Assembly instructions – Nuage PLS series on Ibis wheelchairs with Sedeo Original 5.5.1 Mounting a Nuage PLS series seating system on an Ibis wheelchair with Sedeo Original Preparation Relevant article numbers • Temporarily remove the Sedeo armrests.
  • Page 26: Assembly Instructions - Nuage Pls Series On Base One And Kontiki Wheelchairs

    Nuage 5.6 Assembly instructions – Nuage PLS series on Base One and Kontiki wheelchairs 5.6.1 Mounting a Nuage PLS series seating system on a Base One or Kontiki wheelchair Preparation For further instructions about assembling a Nuage PLS • Temporarily remove the armrests.
  • Page 27: Assembly Instructions - Nuage Pls Series On Canto Nxt Wheelchairs

    Nuage | 27 5.7 Assembly instructions – Nuage PLS series on Canto Nxt wheelchairs 5.7.1 Mounting the seat shell parts Instructions • Clamp the fixation on the back of the frame on the seat The following operations are required to mount the seat shell...
  • Page 28: Mounting The Back Shell Parts

    1017730 Mounting set Nuage PLS for Canto Nxt • 1017765 Shell part, set for Nuage PLS / Nuage PLS • First mount the left mounting frame: Active without calf support •...
  • Page 29: Mounting Other Parts And Fitting The Webbing And Cover

    • Align the footplates and mark the bolt holes. • Pinch holes for the bolts in the footplate cover. • Bolt the Nuage PLS series foot plate on the original footplate with two hex bolts M6. The following operations are required to mount and place the armrest pads: •...
  • Page 30: Assembly Instructions - Nuage Pls Series On Canto Wheelchairs

    30 | Nuage 5.8 Assembly instructions – Nuage PLS series on Canto wheelchairs 5.8.1 Mounting a Nuage PLS series seating system on a Canto wheelchair Preparation For instructions about mounting other parts and fitting the • Temporarily remove the armrests.
  • Page 31: Troubleshooting

    Nuage | 31 Troubleshooting Possible cause Check Seating system not working as it should Contact your supplier. Problems with assembling or adjusting the Contact your supplier seating system correctly Needing instructions for mounting a Nuage Contact your supplier seating system on wheelchair configurations other than mentioned...
  • Page 32: Technical Product Information

    The product also meets the following requirements and standards. This has been verified by independent test organizations Standard Definition/description EU guideline 93/42 EEC Requirements as stated in Annex I apply 7.2 Technical specifications Nuage PLS seating system and Nuage PLS Active seating system Description Unit Maximum user weight Seat width 380 - 550 Seat depth...
  • Page 33: Warranty

    Nuage | 33 Warranty THIS GUARANTEE DOES NOT AFFECT YOUR LEGAL RIGHTS IN ANY WAY. Sunrise Medical* provides a guarantee, as set out in the warranty conditions, for wheelchairs to its customers covering the following. Warranty conditions: Should a part or parts of the wheelchair require repair or replacement as a result of a manufacturing and/or material fault within 24 months or for frame and cross-braces within 5 years after delivery to the customer, then the affected part or parts will be repaired or replaced free of charge.
  • Page 34 Added article number 1017907 Sedeo Pro seat frame with seat shell backrest frame Added article number 1018061 Mounting set Nuage PLS series for Sedeo Pro orthesis • Added article number 1017887 Mounting central calf support Nuage PLS Active / Active XS for 2016v2.0 Sedeo Pro •...
  • Page 35 Nuage | 35...
  • Page 36 Sunrise Medical S.r.l. Sunrise Medical GmbH Via Riva, 20 – Montale Kahlbachring 2-4 29122 Piacenza 69254 Malsch/Heidelberg Italia Deutschland Tel.: +39 0523 573111 Tel.: +49 (0) 7253/980-0 Fax: +39 0523 570060 Fax: +49 (0) 7253/980-222 www.SunriseMedical.it www.SunriseMedical.de Sunrise Medical AG Sunrise Medical Erlenauweg 17 Thorns Road...
