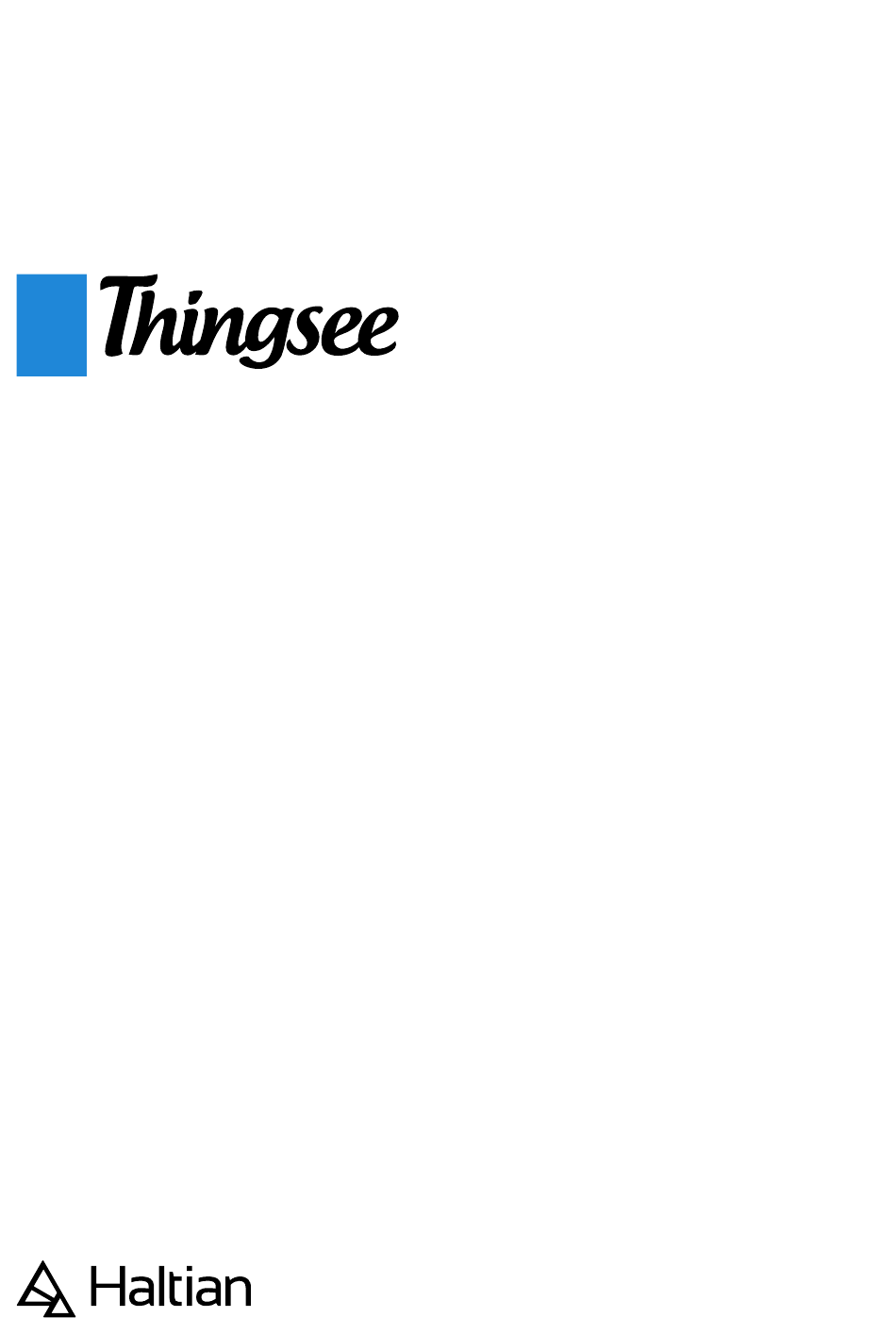

- Page 1 LEAKAGE RUGGED User and Installation Guide v.21.01...
- Page 2 Welcome to use Thingsee IoT Solution Suite Congratulations on choosing Haltian Thingsee as your IoT solution. We at Haltian want to make IoT easy and accessible for everyone, so we have created a solution platform that is easy to use, scalable and secure.
-
Page 3: Sales Package Content

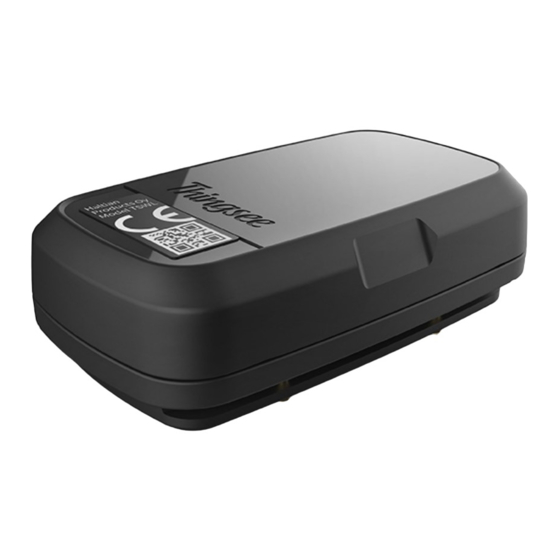

• User guide Using Thingsee LEAKAGE RUGGED sensor Thingsee LEAKAGE RUGGED detects liquid underneath the device. The sensor detects a solid water layer between the two detection pins at the bottom of the device. The product is placed on the floor or place of potential leakage risk pins down. -
Page 4: General Installation Instructions
General installation instructions Install the sensor on the floor or surface where leakages, moisture or flooding is a concern. Pipe leak detection Install on a pipe with sponge/foam in between the pipe and the device. Attach with a cable tie. - Page 5 Things to avoid in installation Avoid installing Thingsee products near the following: Thick concrete structures or thick fire doors Electrical transformers or thick electrical wires Escalators Nearby heating or cooling devices and/or vents Direct sun light Nearby halogen lamps, fluorescent lamps or similar lamps with hot surface Nearby radio equipment like WiFi routers or any other similar high power RF transmitters...
-
Page 6: Installation
QR code reader or Thingsee installation application on your mobile device. Identifying the device is not necessary, but it will help you keep track of your IoT installation and help Haltian support to solve possible issues. D E V I C E D E V I C E... - Page 7 Hold the magnet switch tool against the sensor until the LED indicator starts to blink brightly for one minute. When the LED goes off, the sensor is switched on. Accessories • Pontoon Use the Pontoon accessory to float the device in the case of a flood. This will also support the device to sit firmly on the floor and not to turn over accidentally.
-
Page 8: Detection Capability
Detection Capability • Electrical resistance values between 10 000 – 5 000 000 units Example values: • Dry floor: 5 000 000 units • Tap water: 1 000 000 – 2 500 000 units • Salt water: 250 000 – 330 000 units •... -
Page 9: Device Info
• Up to 3 years with default functionality (30sec measurement inter- val) Radio sensitivity: -95 dBm (BTLE) Size: width 34 mm, height 17,5 mm, length 58 mm Weight: 35 g (including batteries) More device info can be found at support.haltian.com Device measurements Weight: 35 g (including batteries) 17,5 mm... - Page 10 CERTIFICATION IN CERTIFICATION INFORMATION EU DECLARATION OF CONFORMITY Hereby, Haltian Products Oy declares that the radio equipment Thingsee LEAKAGE RUGGED is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.haltian.com Haltian Products Oy vakuuttaa, etta radiolaitetyyppi Thingsee LEAKAGE RUGGED on direktiivin 2014/53/EU mukainen.
- Page 11 - Do not paint the device. Paint can prevent proper operation. Damage If the device is damaged contact support@haltian.com. Only qualified personnel may repair this device. Small children Your device is not a toy. It may contain small parts. Keep them out of the reach of small children.
- Page 12 Get to know other Thingsee devices Thingsee PRESENCE Thingsee ENVIRONMENT Thingsee DISTANCE Thingsee AIR Thingsee BEAM Thingsee LEAKAGE Thingsee ENVIRONMENT Thingsee ANGLE RUGGED RUGGED RUGGED Thingsee GATEWAY Thingsee GATEWAY Thingsee GATEWAY GLOBAL For all devices and more information, visit our website www.haltian.com or contact sales@haltian.com...
