- Page 1 User and Installation Guide v.21.04...

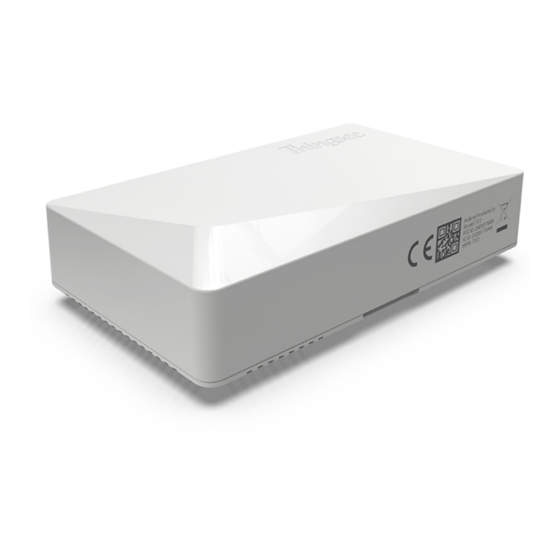

- Page 2 Pasi Leipälä CEO, Haltian Oy Thingsee AIR Thingsee AIR is a state of the art, battery powered wireless IoT sensor CO₂ for your indoor air quality monitoring. Together with , TVOC, temperature, barometric pressure, humidity sensors and ambient light sensor, it’s a perfect device to provide an extensive overlook to both...
-
Page 3: Sales Package Content
Thingsee AIR is a perfect tool to measure indoor air quality (IAQ) in buildings and structures, especially as it relates to the health and comfort of the building’s occupants. The sensor ensures real-time air quality data for, e.g. -
Page 4: General Installation Instructions
The auto-calibration is based on the outdoor CO₂ level. CO₂ level in normal air pressure is 400 ppm. Note: Thingsee AIR requires ‘free of people’ moments in the space, when the indoor air is fully changed, to set the correct 400 ppm baseline. - Page 5 Things to avoid in installation Avoid installing Thingsee products near the following: Thick concrete structures or thick fire doors Electrical transformers or thick electrical wires Escalators Nearby heating or cooling devices and/or vents Direct sun light Nearby halogen lamps, fluorescent lamps or similar lamps with hot surface Nearby radio equipment like WiFi routers or any other similar high power RF transmitters...
-
Page 6: Installation
Open the box and follow the instructions of this user and installation guide. Take the product from the box and open it with the opening key. Select a place where to install Thingsee AIR (see ‘Things to avoid in installation’ before). The recommended height on the wall is between 1,4 m –... - Page 7 Take the B-cover and place it on the wall on the decided location. Screw the B-cover to the wall (use anchor with concrete wall or gypsum board). Place the batteries inside the A-cover. Batteries...
- Page 8 QR code reader or Thingsee installation application on your mobile device. Identifying the device is not necessary, but it will help you keep track of your IoT installation and help Haltian support to solve possible issues. D E V I C E D E V I C E...
-
Page 9: Detection Capability
Detection capability • CO₂ measurement range 400 – 5 000 ppm; extended range up to 10 000 ppm. Accuracy ±3 % (In extended range ±10 %). • TVOC measurement range 0 – 60000 ppb. Resolution 1 ppb at range 0 ppb - 2008 ppb, 6 ppb at range 2008 ppb –... - Page 10 Examples of reference values CO₂ values reference Level Recommendation 250-400 ppm Normal background concentration in outdoor ambient air Concentrations typical of occupied indoor spaces with 400-1000 ppm good air exchange 1000-2000 ppm Complaints of drowsiness and poor air Headaches, sleepiness and stagnant, stale, stu y air. 2000-5000 ppm Poor concentration, loss of attention, increased heart rate and slight nausea may also be present...
-
Page 11: Other Default Settings
Default measurement and reporting Event based reporting • Measures every 5 minutes: • CO₂ • TVOC • Temperature • Humidity • Barometric pressure • Ambient light • Reports immediately when measured value has changed more than the set threshold value from previous reported measurement •... -
Page 12: Device Info
Battery type: 2 x AA, replaceable Expected battery life: • Up to 2 years with 5 minute interval Radio sensitivity: -95 dBm (BTLE) More device info can be found at support.haltian.com Device measurements Weight: 100 g (including batteries) 55 mm... - Page 13 CERTIFICATION IN CERTIFICATION INFORMATION EU DECLARATION OF CONFORMITY Hereby, Haltian Products Oy declares that the radio equipment Thingsee AIR is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: haltian.com Haltian Products Oy vakuuttaa, etta radiolaitetyyppi Thingsee AIR on direktiivin 2014/53/EU mukainen.
- Page 14 - Do not paint the device. Paint can prevent proper operation. Damage If the device is damaged contact support@haltian.com. Only qualified personnel may repair this device. Small children Your device is not a toy. It may contain small parts. Keep them out of the reach of small children.
- Page 15 Get to know other Thingsee devices Thingsee PRESENCE Thingsee ENVIRONMENT Thingsee BEAM Thingsee LEAKAGE Thingsee ENVIRONMENT Thingsee ANGLE RUGGED RUGGED RUGGED Thingsee AIR Thingsee GATEWAY Thingsee GATEWAY Thingsee GATEWAY GLOBAL For all devices and more information, visit our website www.haltian.com or contact sales@haltian.com...
