LEAKAGE RUGGED

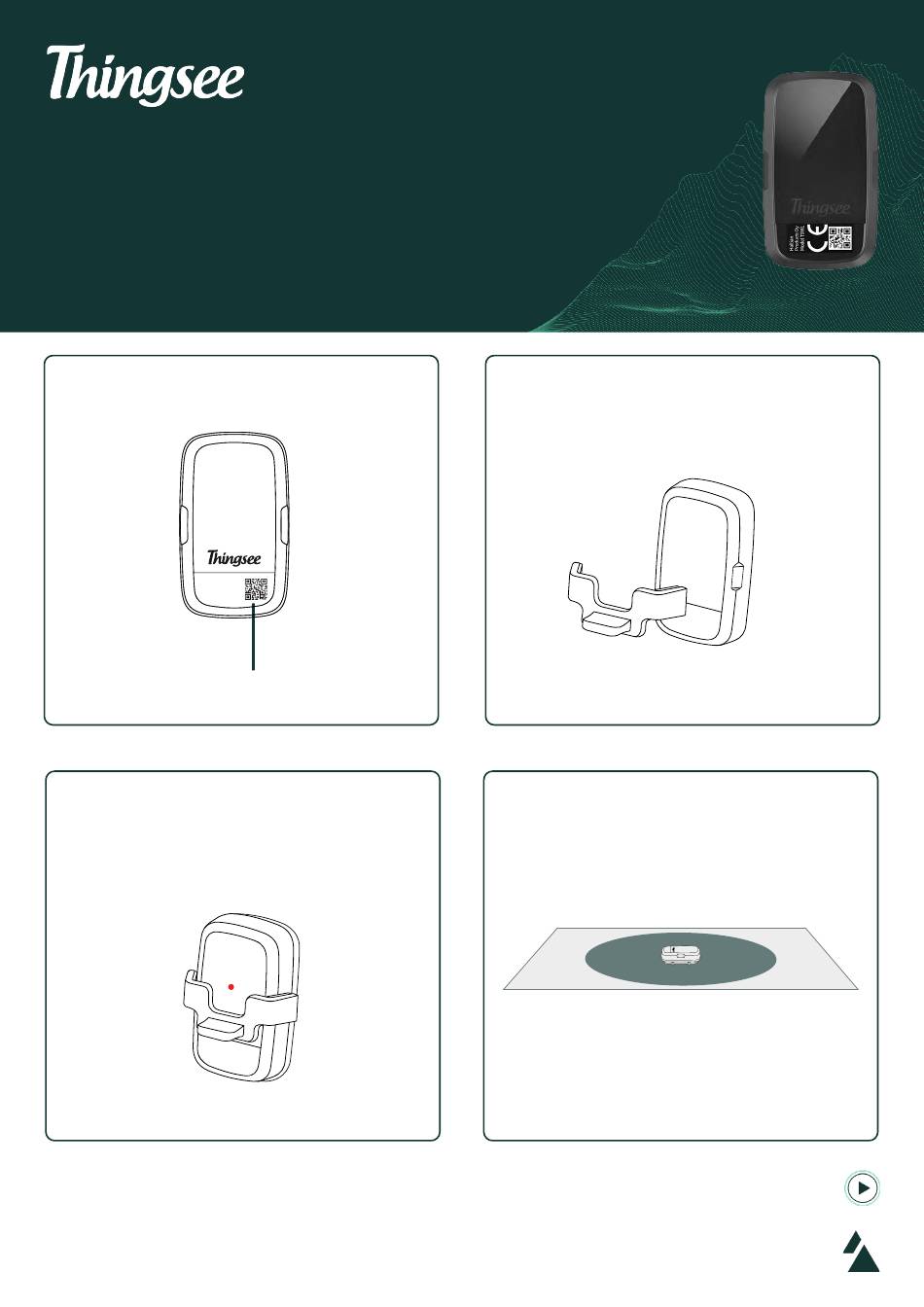

Quick Guide
1.
Identify the sensor by reading the QR
code on the front of the device.
3.
Hold the Sensor Activation Tool against
the sensor until the LED indicator starts
to blink brightly for one minute. When
the LED goes off, the sensor is switched
on.
Continue to read the detailed installation instructions.
QR code
2.
Switch the sensor on with Thingsee
Sensor Activation Tool by holding it
against the sensor as illustrated in the
picture.
4.
Install the sensor on the floor or surface
where leakages or flooding is a concern.
Place the sensor pins downwards.
Watch installation video here

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Thingsee LEAKAGE RUGGED and is the answer not in the manual?

Questions and answers

Related Manuals for Haltian Thingsee LEAKAGE RUGGED

Summary of Contents for Haltian Thingsee LEAKAGE RUGGED

  • Page 1 LEAKAGE RUGGED Quick Guide Identify the sensor by reading the QR Switch the sensor on with Thingsee code on the front of the device. Sensor Activation Tool by holding it against the sensor as illustrated in the picture. QR code Hold the Sensor Activation Tool against Install the sensor on the floor or surface the sensor until the LED indicator starts...
  • Page 2 LEAKAGE RUGGED User and Installation Guide v.24.09...

  • Page 3: Sales Package Content

    Welcome to using Haltian Thingsee We at Haltian want to make IoT simple, so we have created a solution that is easy to use, scalable, and secure. I hope it will help you achieve your business goals! Pasi Leipälä CEO, Haltian Oy Thingsee LEAKAGE RUGGED Thingsee LEAKAGE RUGGED is a wireless IoT sensor for detecting even the smallest leakages.
  • Page 4 Accessories Detection Rope and Base for Thingsee LEAKAGE • Base for Thingsee LEAKAGE is an accessory for the Thingsee LEAKAGE sensor device. Base is used to attach the Detection Rope to Thingsee LEAKAGE accessory to allow leakage detection in a larger area. The Detection Rope detects a possible leakage through its entire length.
  • Page 5 RUGGED sensor Overview: Thingsee LEAKAGE RUGGED is designed to detect the presence of water beneath the device. It activates when water covers the two detection pins located at the bottom of the sensor (effec- tive in water layers wider than 2.4 cm).
  • Page 6 Data Interpretation: In dry conditions, the Thingsee LEAKAGE typically reports a value of 50,000,000. Adjustments to the baseline and alert levels may be necessary depending on the specific installation environment. Refer to the included illustration showing various values reported by the Thingsee LEAKAGE under different conditions without the Base and Detection Rope.
  • Page 7 Base for Thingsee LEAKAGE detects if the Detection Rope is missing, alerting users to improper installations; the Base must never be used without the Rope attached. When the Base and Detection Rope are attached to Thingsee LEAKAGE, the value this device combination reports is between 35 000 000 and 45 000 000 in dry conditions.

  • Page 8: Installation

    Installation Things to avoid in installation Avoid installing Thingsee products near the following: Thick concrete Electrical transformers Escalators. structures or thick fire or high power or doors. voltage cables. Nearby heating or Direct sun light. Nearby halogen lamps, cooling devices and/or fluorescent lamps or vents.
  • Page 9 Scan the QR code on the front of the device using a QR code reader or the Thingsee Toolbox app on your mobile device. While this step is optional, it assists in managing your IoT setup and facilitates support from Haltian should issues arise. QR code...
  • Page 10 The sensor is ready once the bright blinking stops and the LED turns off, indicating that the sensor is switched on and fully operational. Installing the sensor on the floor Choose the Right Location: Place the sensor on the floor or any surface where leakages, moisture, or flooding may occur. 2.
  • Page 11 Installing the Thingsee LEAKAGE Sensor with Base and Detection Rope accessories Attach the Base Accessory: Begin by snapping the Base accessory onto the Thingsee LEAKAGE sensor. Start from the • side opposite the detection pins and then snap on the pins’ side. Press firmly until you hear a click.
  • Page 12 Connect the Detection Rope: Insert the Detection Rope into the designated port on the Base accessory. • Position the Device: Choose a location for the sensor setup where you anticipate potential leakages. Secure the • device using screws or zip ties. Note: Install the Base at a height to avoid direct water contact, as it is not waterproof.
  • Page 13 Using the Sensor with Detection Rope: Flexible Placement: The sensor setup can be coiled around pipes, laid alongside walls, or • positioned on the ground. Surface Preparation: Ensure the installation area is clean and free from dirt, sticky residues, • and other impurities.
  • Page 14 Inspect the Detection Rope regularly, at least every 12 months. It should be • free of dust and contaminants and thoroughly dried after any leak detection. Further Support: For additional installation aids like fixing clips, contact Haltian for purchases and confirm the • appropriate type of fixing needed for your setup.

  • Page 15: Detection Capability

    Detection capability Electrical resistance values between 10 000 – 50 000 000 units • The operation temperature range is -20 ºC to +50 ºC. Below 0ºC battery life time is reduced. • The temperature measurement accuracy is ±0,3 ºC. Accelerometer reports orientation or vibration count in machine usage monitoring mode •...

  • Page 16: Device Info

    Device info Operating temperature -20 °C … +50 °C when using Thingsee LEAKAGE RUGGED only Operating temperature 0 °C … +50 °C when using with Base and Detection Rope accessories Operating humidity 0 % … 100 % RH non-condensing Storage temperature +5 °C … +25 °C Storage humidity 45 % …...
  • Page 17 Hereby, Haltian Oy declares that the radio equipment type LEAK is in compliance with the UK relevant statutory requirements (Radio Equipment Regulations 2017 (SI 2017 No. 1206)). The full text of the declaration of conformity is available at the following internet address: support.haltian.com...
  • Page 18 Do not paint the device. Paint can prevent proper operation. • Damage If the device is damaged contact support@haltian.com. Only qualified personnel may repair this device. Small children Your device is not a toy. It may contain small parts. Keep them out of the reach of small children.
  • Page 19 Do not dispose of these products as unsorted municipal waste: take them for recycling. For info on your nearest recycling point, check with your local waste authority. Sensor de Fugas (Thingsee LEAKAGE RUGGED) Marca: Thingsee Modelo: LEAK...
  • Page 20 Get to know all our Haltian devices Thingsee Thingsee Thingsee LEAKAGE Thingsee ENVIRONMENT PRESENCE ENVIRONMENT RUGGED RUGGED Haltian Thingsee Thingsee Thingsee GATEWAY RADAR BEAM GLOBAL For all devices and more information, visit our website www.haltian.com or contact sales@haltian.com...
