LEAK USER INSTRUCTIONS
1. INTENDED USE OF LEAK
LEAK is a sensor device to detect water leakage. The device reports the resistance
value between the detecting pins and sends this information to a Wirepas protocol
mesh network. The device has also sensors for temperature, ambient light,
magnetism and acceleration and it includes an LED for indication purposes. It has
also sensors for humidity and air pressure but this data is not useful because of the
closed structure of the device. Typically LEAK is used together with MTXH Thingsee
Gateway in use cases where the measurements are performed in several locations
and this data is wirelessly collected and sent via 2G cellular connection to a data
server / cloud.
2. GENERAL
The device covers are ultra sonic welded together to get a robust structure against
moisture and dust. Batteries cannot be changed.

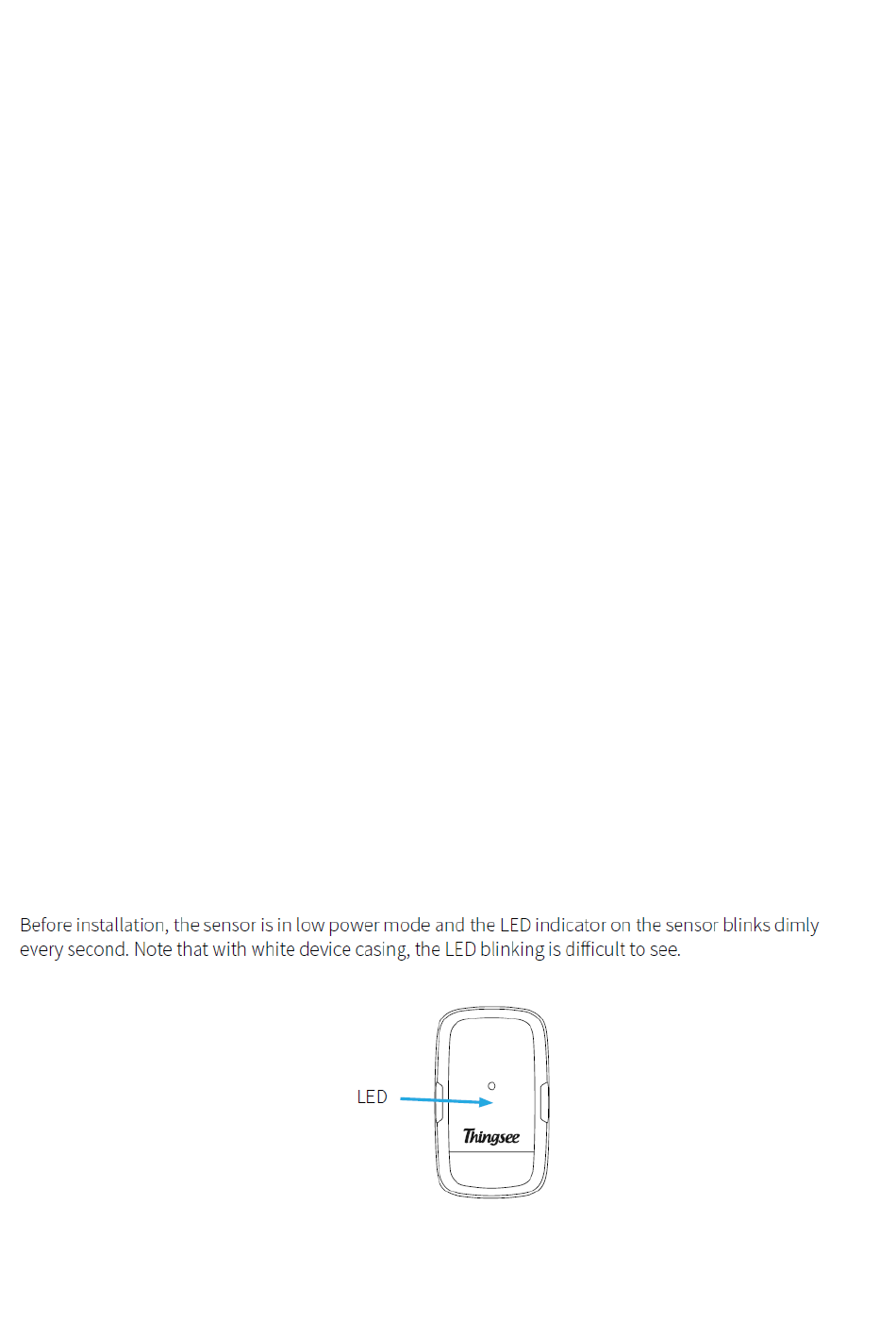

When delivered, the device is in a very low current consumption mode. When taken
into use, it needs to be switched on with a magnet switch tool:
Advertisement
Table of Contents
Related Manuals for Haltian Thingsee Leak
Summary of Contents for Haltian Thingsee Leak
- Page 1 LEAK USER INSTRUCTIONS 1. INTENDED USE OF LEAK LEAK is a sensor device to detect water leakage. The device reports the resistance value between the detecting pins and sends this information to a Wirepas protocol mesh network. The device has also sensors for temperature, ambient light, magnetism and acceleration and it includes an LED for indication purposes.
- Page 2 Once the device is switched on, it wakes up and starts scanning for nearby Wirepas devices having the same network ID. 3. PRECAUTIONS Operating temperature range for the device is -20…+50 °C due to battery specifications.
- Page 3 4. LEGAL NOTICES Hereby, Haltian Products Oy declares that the radio equipment type LEAK is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://haltian.com Haltian Products Oy vakuuttaa, etta radiolaitetyyppi LEAK on direktiivin 2014/53/EU mukainen.
- Page 4 FCC REQUIREMENTS FOR OPERATION IN THE UNITED STATES FCC Information for the User This product does not contain any user serviceable components and is to be used with approved, internal antennas only. Any product changes of modifications will invalidate all applicable regulatory certifications and approvals. FCC Guidelines for human Exposure This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
- Page 5 • Consult the dealer or and experienced radio/TV technician for help FCC Caution Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) this device must accept any interference received, including interference...
