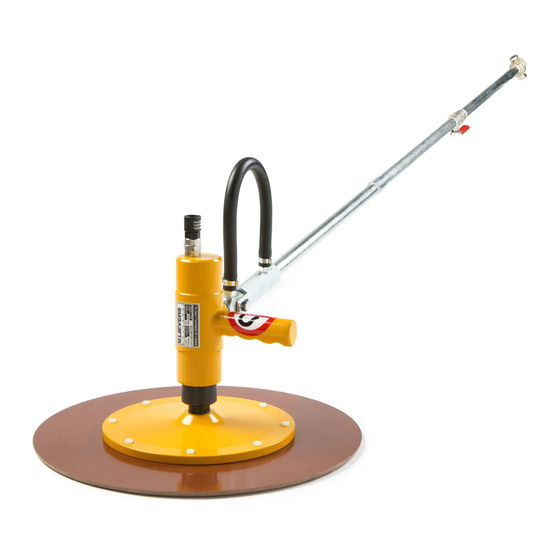

Lievers LAP 45 Operation Manual

Pneumatic power trowel
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OPERATION MANUAL
PNEUMATIC POWER TROWEL
LAP 45
LIEVERS HOLLAND
Groot Mijdrechtstraat 68 – 3641 RW
Postbus 103 – 3640 AC
Mijdrecht (NL)
Tel.: 0031 – (0)297-231900 / Fax: 0031 – (0)297-231909
E-mail:
info@lieversholland.nl
/ Internet:
www.lieversholland.nl

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LAP 45 and is the answer not in the manual?

Questions and answers

Related Manuals for Lievers LAP 45

Summary of Contents for Lievers LAP 45

  • Page 1 OPERATION MANUAL PNEUMATIC POWER TROWEL LAP 45 LIEVERS HOLLAND Groot Mijdrechtstraat 68 – 3641 RW Postbus 103 – 3640 AC Mijdrecht (NL) Tel.: 0031 – (0)297-231900 / Fax: 0031 – (0)297-231909 E-mail: info@lieversholland.nl / Internet: www.lieversholland.nl...

  • Page 2: Table Of Contents

    Lievers Holland. Lievers Holland may not be held responsible for any guarantees or liabilities for the contents of this publication and points to, in this case, all implied securities for suitability of merchantability or any other purposes. Lievers Holland further retains the right to revise this publication and to alter the contents over certain periods of time, without the obligation to report such alterations and changes first.

  • Page 3: Preface

    Other use than the prescribed use. Not covered under the LIEVERS warranty:  Transportation or shipment costs to and from LIEVERS B.V. or their recognised agents, for repair or assessment against a warranty claim, on any machine.  Materials and/or labour costs to renew, repair or replace components due to fair wear and tear.

  • Page 4: Introduction

    2. Introduction The pneumatic trowel LAP 45 is sturdy and safe power trowel, it features a long durability and is very handy and simple to use. Description The pneumatic trowel LAP 45 is particularly intended for smoothing flat surfaces in concrete or similar materials.

  • Page 5: Technical Specifications

    Remember that only trained, qualified personnel should work on the trowel. When moving the trowel by hand, the operator must strictly comply with the standards contained in paragraph 5 of DL 626 of 19/9/94, as weIl as the standards contained in DPR 547/55. Operation Manual LAP 45, revision 3.1: 16-05-2018...

  • Page 6: Use

    We recommend you to contact your supplier for service and maintenance. Operation Manual LAP 45, revision 3.1: 16-05-2018...

  • Page 7: Storage And Environment

    This trowel is made of metal and plastic parts that can be disposed of easily and that do not represent any danger of pollution for the environment and/or personal safety. Separate the various materials to allow them to be reused, recycled, or sent for separate disposal. Operation Manual LAP 45, revision 3.1: 16-05-2018...

  • Page 8: Part Lists

    8. Part lists Fig. 2: Parts pneumatic power trowel LAP 45 Description Quantity Part number Motor housing 320117010010 Flange 320117010007 Disc 32308045 Operation Handle (set) 320117010023 Operation Manual LAP 45, revision 3.1: 16-05-2018...
  • Page 9 Figure 3: Parts pneumatic motor LAP 45 Description Quantity Part number Air inlet 3201216005000 Motor assembly 3201236008000 Intermediate planetary gear assembly 3201245005000 Ring 3201594835002 Terminal planetary gear assembly 3201246043000 Nose 3201406025010 Threaded bushing 3201496001420 Tube 3201406010640 Closure portion 3201406039001 Rubber seal ring 320117010022 Operation Manual LAP 45, revision 3.1: 16-05-2018...

  • Page 10: Declaration Of Conformity

    Figure 4: Parts of air control 3201216005000 Description Quantity Part number Airflow regulator 3201216201050 Closing screw 3201404879050 Air inlet filter 3201306371010 Coupler 3201530110817 Ring 3201300000100 Coupler 3201304371010 Silencer 3201304878050 Operation Manual LAP 45, revision 3.1: 16-05-2018...
  • Page 11 Figure 5: Parts of pneumatic air motor LAP 45 3201236008000 Description Quantity Part number Spacer 3201235001700 Bearing 3201541309040 Cylinder lower plate 3201235001150 Vane (per 5 pcs) 320117010004 Rotor 3201236010100 Cylinder 3201236001050 Cylinder upper plate 3201235230200 3201549502510 Spring 3201528017503 Operation Manual LAP 45, revision 3.1: 16-05-2018...
  • Page 12 Figure 7: Parts assembly intermediate planetary gear system 3201245005000 Description Quantity Part number Bearing 3201541020071 Gear ring 3201245001100 Planetary shaft 3201245005050 Gear 3201245005150 Needle bearing 3201544003001 3201549503016 Operation Manual LAP 45, revision 3.1: 16-05-2018...
  • Page 13 Figure 7: Parts assembly terminal planetary gear system 3201246043000 Description Quantity Part number Bearing 3201541017069 Spacer 3201406020080 Gear ring 3201245094100 Planetary shaft 3201246043050 Gear 3201245005150 Needle bearing 3201544003001 3201549503016 Bearing 3201541020071 Operation Manual LAP 45, revision 3.1: 16-05-2018...
  • Page 14 Supplier: Bouwmachinefabriek Lievers B.V. Address: Groot Mijdrechtstraat 68, 3641 RW Mijdrecht Hereby declares that the pneumatic power trowel type LAP 45 1) Complies with the regulations for the Machine Directive 2006/42/EC and the EMC-Directive 2004/108/EC. 2) Complies with the following harmonised standards: NEN- EN 12649 Mijdrecht, May.
