- Page 1 OPERATION MANUAL AND PART LIST BULLFLOAT HAL > 01/06 Lievers B.V. Holland Postbus 103 3640 AC Mijdrecht tel: +31 (0)297-231900 fax: +31 (0)297-231909 e-mail: info@lieversholland.nl www.lieversholland.nl © Copyright 02-01-2006, Lievers B.V. Holland...

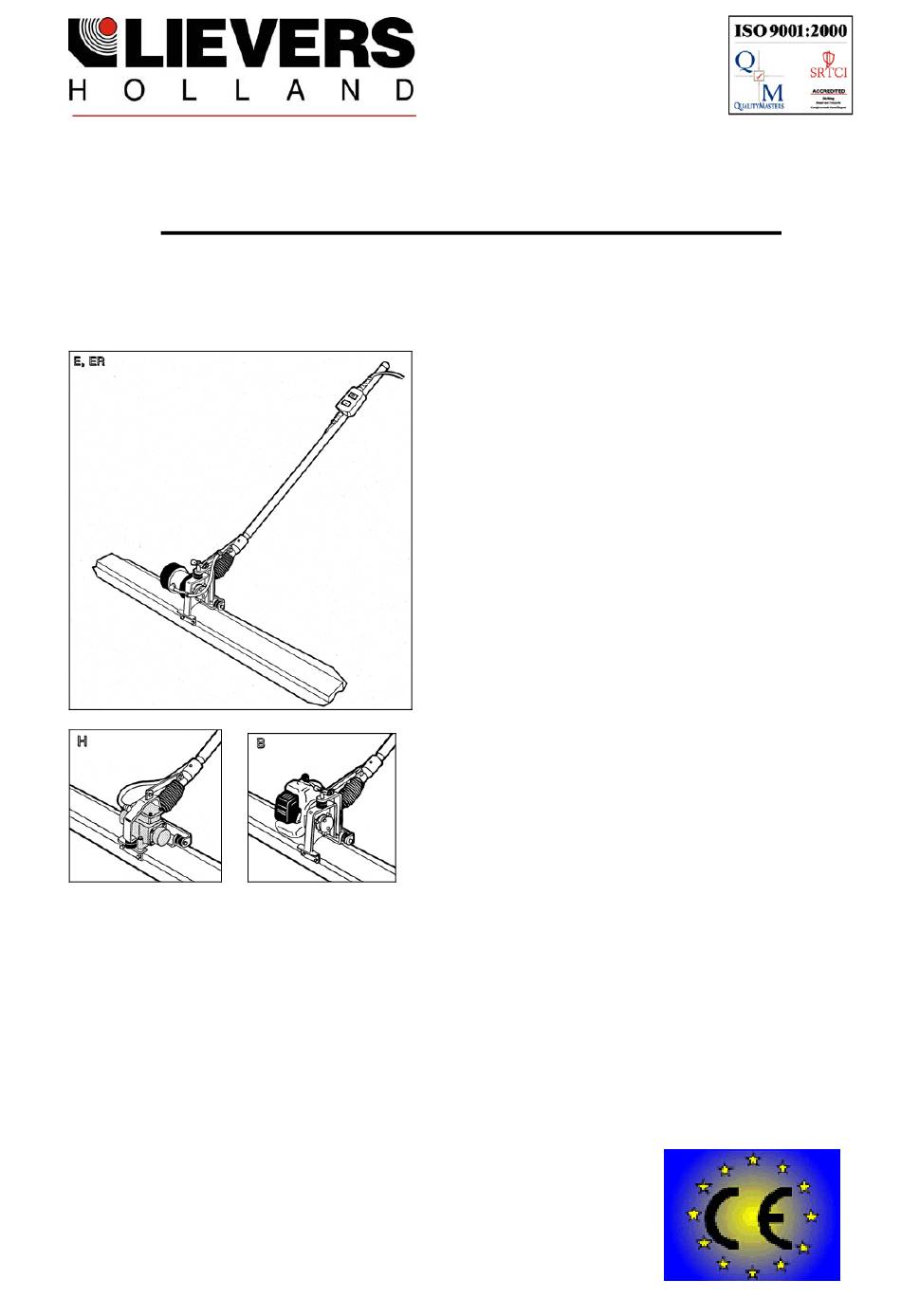

- Page 2 HAL Operation manual Figure 1 View of the most important components 1. Aluminium profile 7. Grip 2. Operating handle 8. On/Off-switch 3. Pitch control 9. Gasthrottle 4. Drive unit 230V/50 Hz 10. Plug 5. Drive unit 42V/200 Hz 11. Cable 6.
-
Page 3: General Safety-Aspects
HAL Operation manual GENERAL SAFETY-ASPECTS All Lievers equipment have been tested in accordance with the strict international safety standards. This section contains general advice and apply to several machines mentioned in this paragraph. - Ensure that you are qualified (familiar with the contents of this manual), to operate and carry out light maintenance-work to the machine when you are operating the machine for the first time. - Page 4 5 Before opening the motorhousing remove the plug from the mains/ Inflammable material 6 Dangerous electrical voltage/ Careful, DANGER! 7 Careful, DANGER!! TIP: If the safety aspects are not clear to you, then please contact the manufacturer for further information: Lievers Holland. Telephone: + 31 297 231900; Telefax: + 31 297 231909...
- Page 5 HAL Operation manual TECHNICAL DATA HAL E, ER, H en B (Honda) HAL E, ER HAL H HAL B Honda (230V/50-60Hz) (42V/200Hz) (4-stroke petrol engine) *(115V/50-60Hz) Voltage 230V/1-fase/50-60Hz 42V/3-fase/200Hz ------------- Capacity 350 Watt 200 Watt 0,81Kw (1,1 Hp) Revolutions 8.500 rpm 6.000 rpm...
- Page 6 HAL Operation manual OPERATION INSTRUCTIONS This chapter describes the use of the complete range of HAL200 bullfloats. TIP:For the location and description of the bullfloat’s parts, which are mentioned in the text, we refer to the illustration figure 1 on the backside of the cover. HOW TO ASSEMBLE THE HAL 200 BULLFLOAT.
- Page 7 HAL Operation manual This section describes how to operate and use the bullfloat.In the text are numbers in brackets. These numbers are position numbers and they correspond to the numbers in the parts list of the corresponding figures. CAREFUL: Read the safety aspects and instructions before you switch on the apparatus. CAREFUL: Prevent the bullfloat of sinking into the concrete.After the motor has been switched on, immediately move the bullfloat backwards.
- Page 8 HAL Operation manual OPERATION OF THE BULLFLOAT, HAL200/ER Check that the bullfloat is properly assembled and that the switch is in the OFF position. Put the plug of the drive-unit’s feeder cable in the wall socket. Place the bullfloat in the direct vicinity of where you are going to smoothen the surface of the concrete-floor.
- Page 9 HAL Operation manual Operation of the HAL bullfloat type B (petrol engine) WARNINGS Do not run the engine in a closed area. Exhaust gas contains carbon monoxide, an odorless and deadly poison. Gasoline is extremely flammable and can be explosive under certain conditions. Do not smoke.
-
Page 10: Troubleshooting
Problems solving for bullfloats with petrol engine: see the enclosed engine manual, provided by the engine supplier/producer. Tip: if the problem you are facing is not mentioned in this list, please contact your supplier or contact Lievers B.V. Tel +31 (0)297 231900. Fax: +31 (0)297 231909. - Page 11 HAL Operation manual Warranty Your new LIEVERS “ HAL Bullfloat “ is warranted to the original purchaser for a period of one-year ( 12 months ) from the original date of purchase. The LIEVERS warranty is against defects in design, materials and workmanship.
- Page 12 HAL Operation manual HAL type E, ER en B frame (only) Spare parts drawing HAL E, ER en B frame (only)
- Page 13 HAL Operation manual HAL type E, ER & B frame (only) Index Partnumber Quantity Description 230010 Alum. profile 1.0 m. 230015 1.5 m. 230020 2.0 m. 230025 2.5 m. 23003 Motor assembly bracket 0060 Rubber buffer 0124 Bolt 0173 Undulated ring 0093 0115 Bolt...
- Page 14 HAL Operation manual HAL type E, ER Drive unit Spare parts drawing HAL E, ER drive unit...
- Page 15 HAL Operation manual Hal type E, ER drive-unit Index Partnumber Quantity Description 2303A Ventilation ring (small) 2303B Ventilation ring (large) 2303C Ventilation housing 2320 Drive unit complete 0521 Plastic nut M20 0522 Packing box M20 1101220240 Rear-bearing 2345S Stator 2345R Rotor 2346 Frontshield...
- Page 16 HAL Operation manual HAL type E, ER Drive unit& Switch Spare parts drawing HAL E, ER Drive unit & switch...
- Page 17 HAL Operation manual Hal type, E, ER drive-unit&switch 2301N Excenter-housing 2301N Excenter-shaft 2306 Rubber seal 2307 Adaptor-bolt (short) 2308 Adaptor-bolt(large) 0155 Washer 2311N Cover&bearing (excenter .) 231213 Excenter 1.0 - 1.5 m. 231217 Excenter 2.0 - 2.5 m. 0201 Lockring 2314 Excenter-bearing 2316...
- Page 18 HAL Operation manuel HAL type B, Drive unit Honda & Throttle Spare parts drawing HAL B, Drive unit Honda & throttle...
- Page 19 HAL Operation manual Hal type B petrol-drive & gas throttle Index Part number Quantity Description 2301N Excenter-housing 2301N Excenter-shaft 2306B Rubber seal 2307 Adaptor-bolt (short) 2308 Adaptor-bolt(large) 0155 Washer 2311N Cover&bearing (excenter hs.) 231213 Excenter 1.0 - 1.5 m. 231217 Excenter 2.0 - 2.5 m.
- Page 20 HAL Type H 42V/200Hz Frame & Drive-unit and switch HAL type H (42v/200Hz) Spare parts drawing HAL-200 type H...
- Page 21 HAL Operation Manuel HAL type H 42v/200Hz Frame , Vibrator & Switch Index Partnumber Quantity Description 230010 Alum. profile 1.0 m 230015 Alum. profile 1.5 m 230020 Alum. profile 2.0 m 230025 Alum. profile 2.5 m 230030 Alum. profile 3.0 m 2302422020 Motor assembly bracket (small) 2302422030...
