Summary of Contents for Audiovox Xpress XMH10

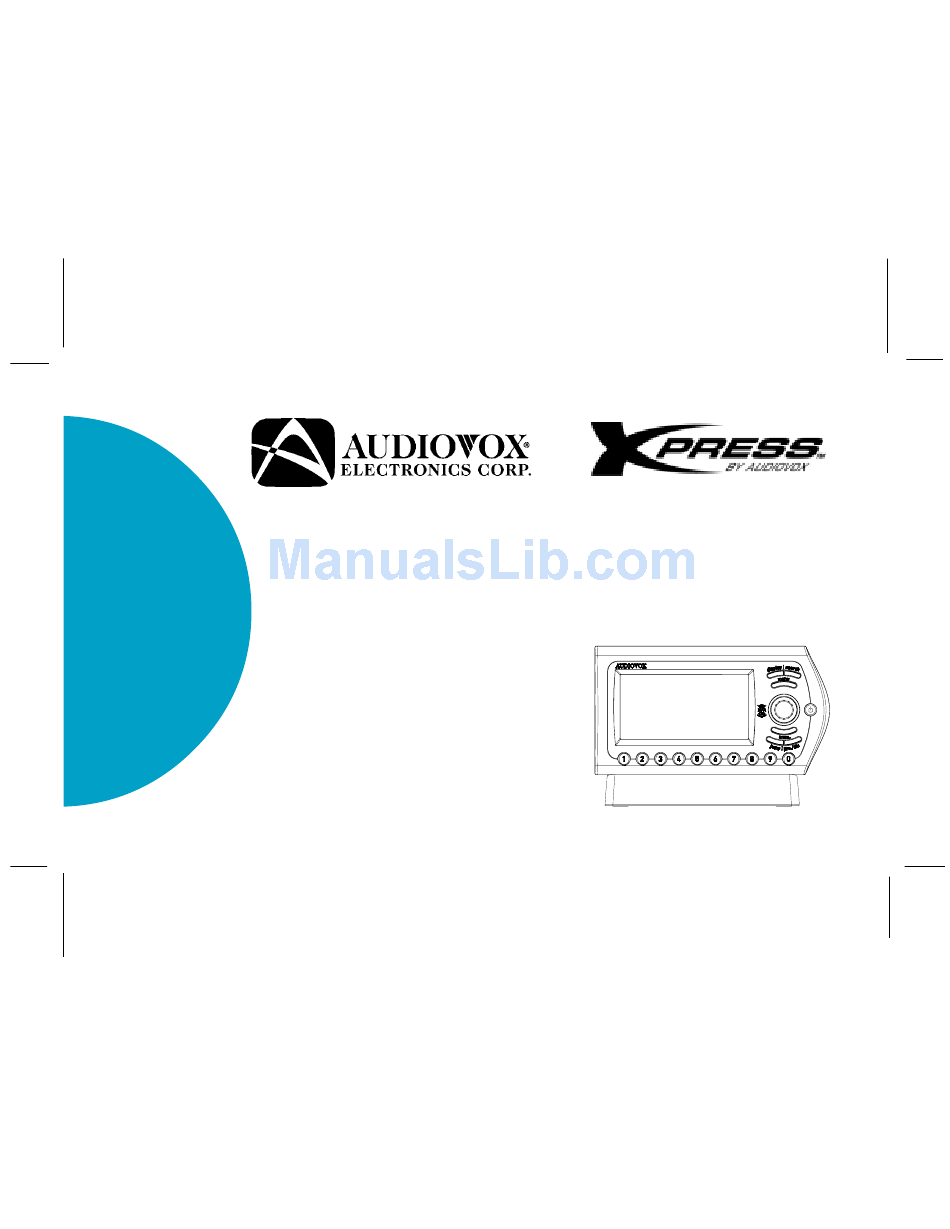

- Page 1 XMH10 Home Cradle Installation Guide Released 9-15-05. ® Xpress Satellite Radio Receiver 128-7476 1 of 12...
-
Page 2: Table Of Contents
CONTENTS Congratulations ... 3 Cautions and Warnings ... 4 Contents XMH10 ... 5 Installation/Wiring Precautions ... 5 Setting Up and Installing Your Kit ... 5 Cabling Connections ... 6 Installing/Positioning the Antenna ... 6 Interconnect Diagram ... 6 Installing the Xpress In the Cradle ... 7 Aiming Your XM Home Antenna ... -
Page 3: Congratulations
Your Audiovox Xpress XM receiver must be used with an accessory kit, such as the Audiovox Home Kit, Boom Box or Vehicle Kit as required by your specific installation needs. These kits are available at retailers where Audiovox main units are sold. -
Page 4: Cautions And Warnings
Cautions and Warnings 1. Do not install the Home Cradle in a position that obstructs viewing of any home entertainment com ponent, such as a Television, or stereo system indi- cators and displays. 2. This unit complies with the interference limits relative to a Class B digital device, applicable under Part 15 of the FCC Rules regarding installation in a residential environment. -
Page 5: Contents Xmh10
Contents XMH10 Install Manual Audio Cable (P/N 1287476) (P/N 112-2784) 1 pc. Antenna (P/N 118-1163) 1 pc. Cradle XMH10 DC Power Adapter (P/N 136-4060) (P/N 112-3592) 1 pc. 1 pc. Installation/Wiring Precautions 1. Make sure the adapter cable is not connected to an AC wall outlet until all interconnections have been made and verified. -
Page 6: Cabling Connections
1. Cabling Interconnections You can begin to enjoy XM Satellite Radio as soon as the Xpress Receiver and home Kit installation are complete. Set up your Xpress home kit using the following installation instructions, or enlist the help of a professional installer. 2. -
Page 7: Installing The Xpress In The Cradle
continuously. If you experience a loss of signal or audio, reposition the antenna inside the home or outside as necessary. 3. Installing the Xpress In the Cradle Install the Xpress Receiver in the docking station as follows: CONNECTOR DOCKING GUIDE PIN STATION TOP VIEW DOCKING... -
Page 8: Aiming Your Xm Home Antenna
4. Aiming your XM Home Antenna If the Xpress display says “NO SIGNAL,” the antenna needs to be repositioned. In addition, even if you are receiving the XM signal, it is recommended that you optimize the position of your XM Antenna as de- scribed in this section enabling you to receive the strongest possible signal and consistent, mute- free reception. - Page 9 strongest possible satellite signal. If the satellite signal is not available, you can optimize it for a terrestrial signal (where available). b. Indoor installation on a flat surface To aim your antenna at the satellite: 1. Set antenna flat against its base on a flat (horizontal) surface.
- Page 10 XM’s unique frequency band. If an antenna extension is required, use the Terk by Audiovox XM-EXT50. This is an XM approved 50 foot amplified extension cable available at your local consumer electronics retailer.
-
Page 11: Warranty
AUDIOVOX ELECTRONICS CORPORATION (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product (at the Company's option) without charge for parts and repair labor. - Page 12 © 2005 Audiovox Electronics Corporation, 150 Marcus Blvd., Hauppauge, New York 11788 128-7476 -12- 128-7476 12 of 12...
