With Low Pressure Sensors P/N 25812
This kit is designed to operate between 5 and 100 p.s.i.
This installation should be done after the Air Spring kit has been installed.
If you have any questions, please call our Technical Service number: 1-800-248-0892.
Panel Assembly
Harness #1
Power Wire
Compressor
Ground
Power Wire
Fuse Adapter
In Line
15 AMP Fuse
Low Pressure
Sensors
Check Valves
Air Springs
(Previously Installed)

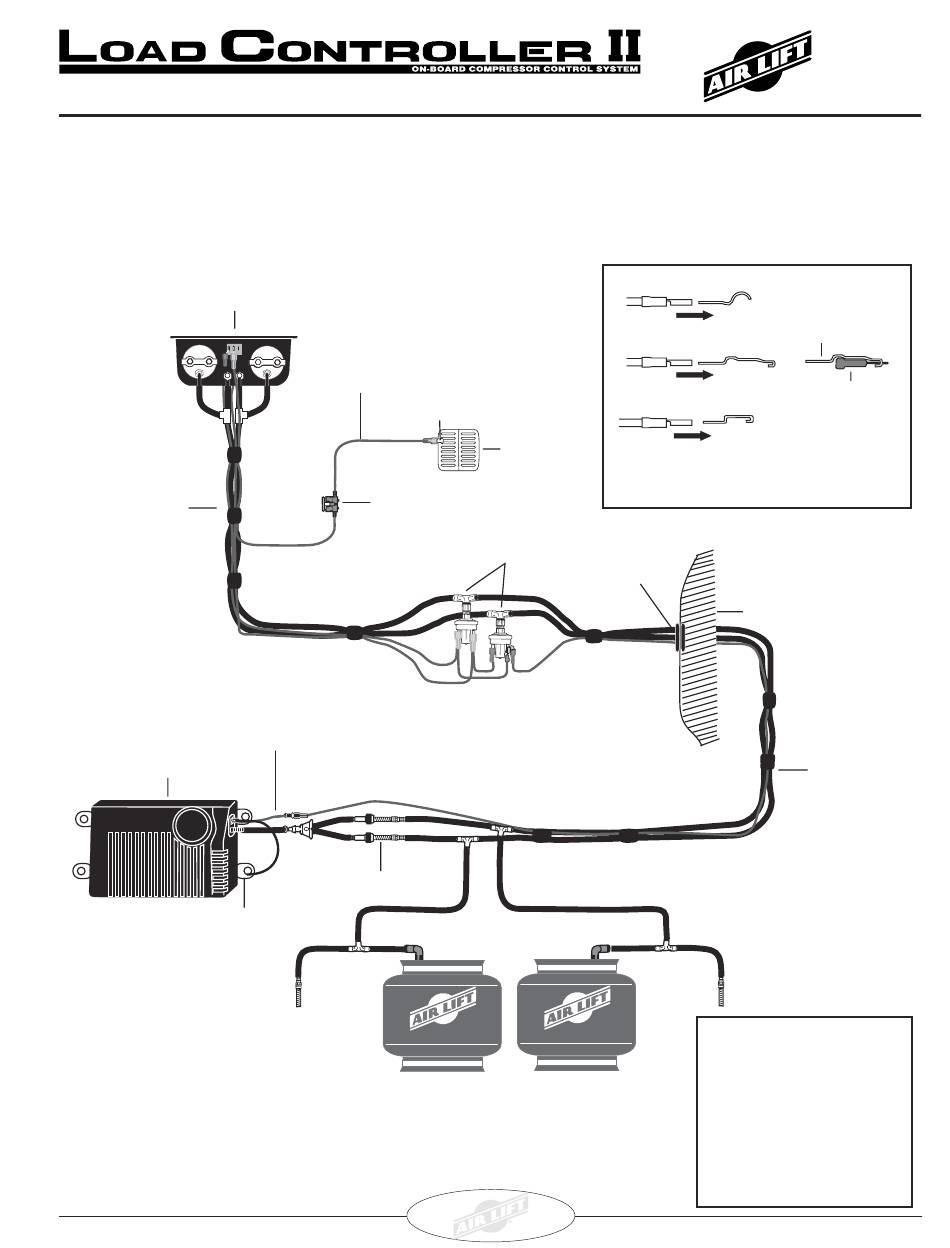

FIGURE 1
Customer Service
1-800-248-0892
Adapter #1
Adapter #2
Adapter #3 *
Fuse Box
* Uses 3/16 (smaller) Female Push On Connector
Grommet
MN-338
by
(04302)
ECN4031
Adapter
Fuse
INSET A
Firewall
Harness #2
All pre-assembled gauge
panels have been 100%
leak and function tested.
Do not attempt to tighten,
loosen, or adjust any
fittings and connections.
This will likely cause a leak
or malfunction and void the
warranty.
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Air Lift Load Controller II
Summary of Contents for Air Lift Load Controller II
- Page 1 MN-338 (04302) ECN4031 With Low Pressure Sensors P/N 25812 This kit is designed to operate between 5 and 100 p.s.i. This installation should be done after the Air Spring kit has been installed. If you have any questions, please call our Technical Service number: 1-800-248-0892. Adapter #1 Panel Assembly Adapter...
- Page 2 STEP BY STEP INSTALLATION (REFER TO PAGE 3 FOR FIGURES 2–4) As an exclusive feature from AIR LIFT you will find a completely preassembled wiring harness (2 coils), dual gauge panel, and the compressor unit. There is no need to cut, solder, crimp, or measure. (Figure 1) All pre-assembled gauge panels have been 100% leak and function tested.
- Page 3 No Tape on Tee No Tape on Air Line Harness #1 White Banded Air Line White Banded Tee Figure 2 No tape air line to no tape tee. Harness #2 Harness #1 White banded air line to white banded Tee. Compressor Side Gauge Side Power (Red) Wires...
- Page 4 Never run compressor longer than 4 minutes continuously. Allow at least 5 minutes for cool down before starting compressor again. Thank you for purchasing Air Lift Products Mailing Address: Street Address:...
