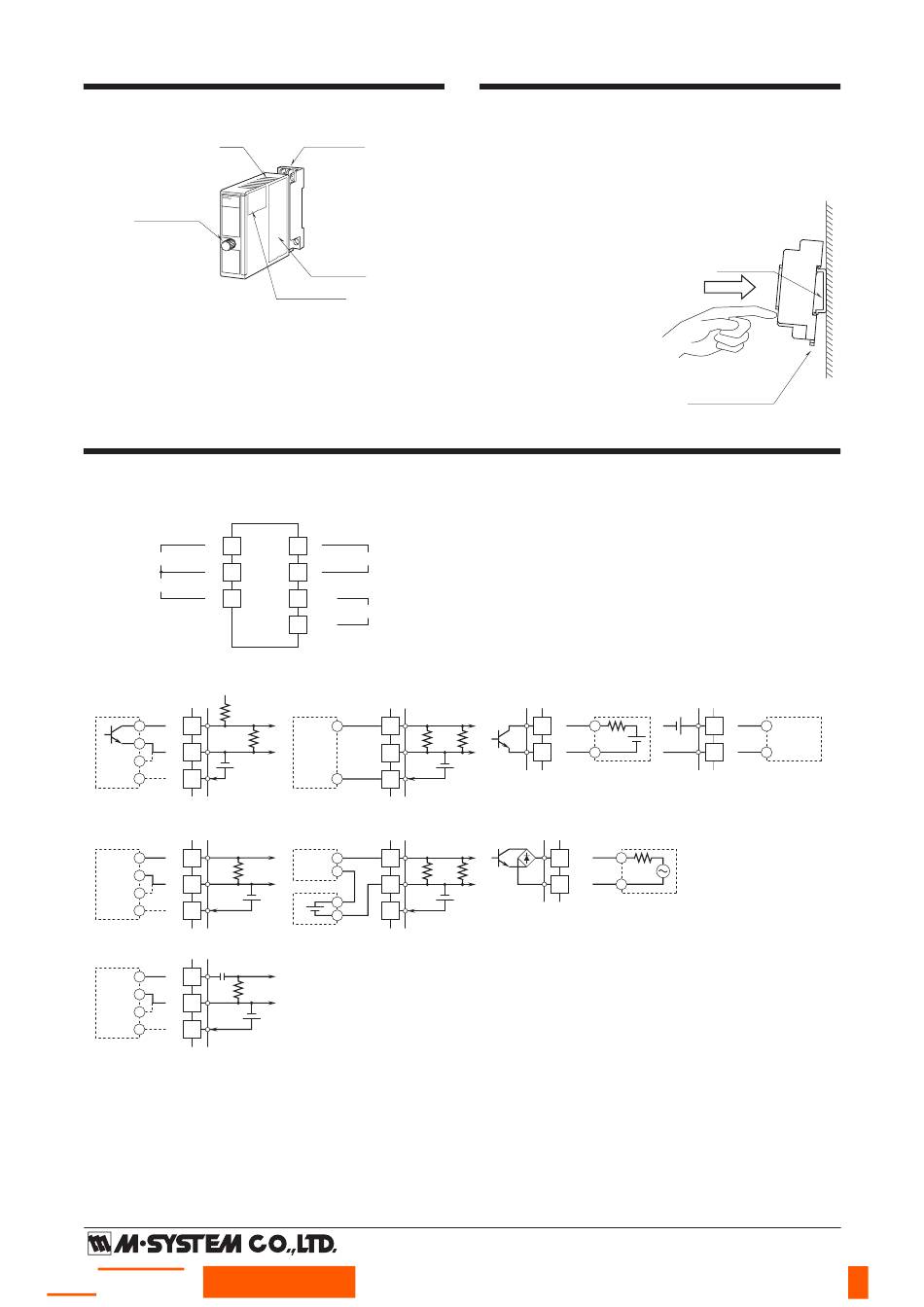

COMPONENT IDENTIFICATION

Body
Fixing Screw

TERMINAL CONNECTIONS

Connect the unit as in the diagram below or refer to the connection diagram on the side of the unit.
+
INPUT
–
SENSOR EXCITATION
+
Input Connection Examples
■ Mechanical Contact
24V
Open Collector
+ +
1
–
–
4
–
PWR
+ + 5
■ Voltage Pulse
• DC Coupled
+ +
1
–
–
4
–
PWR
+ + 5
• Capacitor Coupled
+ +
1
–
–
4
–
PWR
+ + 5
SEN TRONIC
AG
Produkte, Support und Service
Base Socket
Connection
Diagram
Specifications
+
1 9
OUTPUT
–
4 12
5 13
U(+)
POWER
14
V(–)
■ 2-Wire Current Pulse
• Built-in Excitation
12kΩ
–
1
2-WIRE
4
PICK-UP
+
5
• External DC Supply
–
1
2-WIRE
PICK-UP +
4
DC SUPPLY
+
5
–
Rugghölzli 2
CH - 5453 Busslingen
INSTALLATION
Loosen the fixing screw at the front of the unit in order to
separate the body from the base socket.
■ DIN RAIL MOUNTING
Set the base socket so that
its DIN rail adaptor is at
the bottom. Position the
upper hook at the rear side
of base socket on the DIN
rail and push in the lower.
When removing the socket,
push down the DIN rail
adaptor utilizing a minus
screwdriver and pull.
■ WALL MOUNTING
Refer to "EXTERNAL DI-
MENSIONS."
Output Connection Examples
■ Open Collector
200Ω
+
9
–
12
Vsns
■ AC/DC SWITCH
200Ω
(+)
9
(–)
12
Vsns
Tel. +41 (0)56 222 38 18
Fax +41 (0)56 222 10 12
DIN Rail
35mm wide
Spring Loaded
DIN Rail Adaptor
■ Voltage Pulse
+ + +
9
– – –
12
EM-5076 Rev.4
