Page 2: Product Information

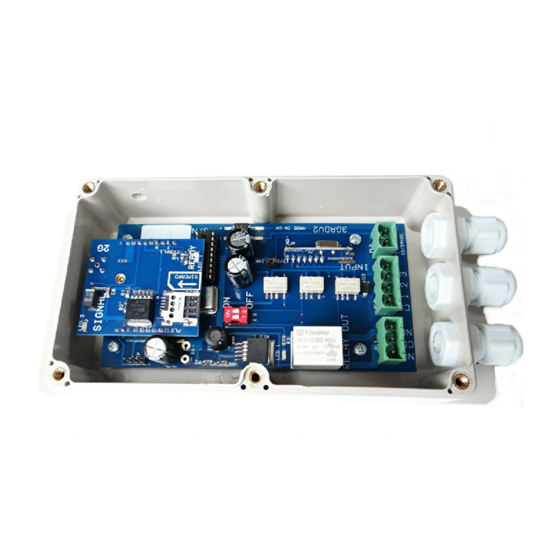

Product Information Our AD-SD Auto Dialler is a versatile unit which can be attached to many of your electronic devices in your home; work, gardens or wherever you may need it. It will alert you using GSM technology by sending a text message or phone call to your mobile phone or landline. - Page 3 Instructions Slide the simcard into the holder ensuring that the clipped corner of the simcard lines up with the clippd corner of the simcard holder (Illustrated above). IMPORTANT - PLEASE READ PLAESE ENSURE THAT YOU DISCONNECT THE POWER WHEN YOU FIT THE SIM CARD THE PLACE THE SIMCARD WITH THE CLIPPED CORNER FACING INWARDS.
- Page 4 How to Programme Contact Numbers After inserting your simcard into your Auto Dialler, turn the unit on and wait to see the GREEN READY LED light come on. This will indicate that you have a mobile signal and the unit is ready for use. You will now need to send a text with the contact number.
- Page 5 How to Programme the SMS You can now change the alarm message for inputs 1 & 2 to your own choosing. To change the message send the text command as follows. NOTE - Your message should read a message of your choosing up to 19 characters long. MESS1=YOUR MESSAGE# The default message is (Input 1)
-
Page 6: Relay On/Off
How to Use the GSM Auto Dialler The Auto Dialler has two inputs. Input 1 = Terminal 1 Connection. (Negatively Triggered) Pulled to Ground Input 2 = Terminal 2 Connection. (Negatively Triggered) Pulled to Ground When the inputs are triggered the GREEN READY LED will flash six times to indicate that a trigger has been received and it will send a text and/or call to the saved user numbers. - Page 7 Quick Reference Wireless Model please refer to page 8 Reset To reset the unit back to factory settings you will need to send a text message #RESET# WARNING This will reset all of your parameters. Only send a reset command when necessary.
- Page 8 Wireless Functions - Model AD-SD-W (wireless) Model AD-SD-W WIRELESS has an RF module which allows connection to various wireless sensors that will then trigger the dialler in the same way as hard wiring into input 1 and input 2. Pairing Wireless Sensors or Door Switch To connect wireless sensors you will need to match the devices to the receiver on the dialler.
-
Page 9: Relay Output
NOTE - Please ensure you supply a 9 - 24 volts DC from the battery terminals via a 2 amp fuse (for alarm panel instructions) INPUT 1+2 As you can see in the circuit diagram above, the input can be activated by pulling the input 1 &...
