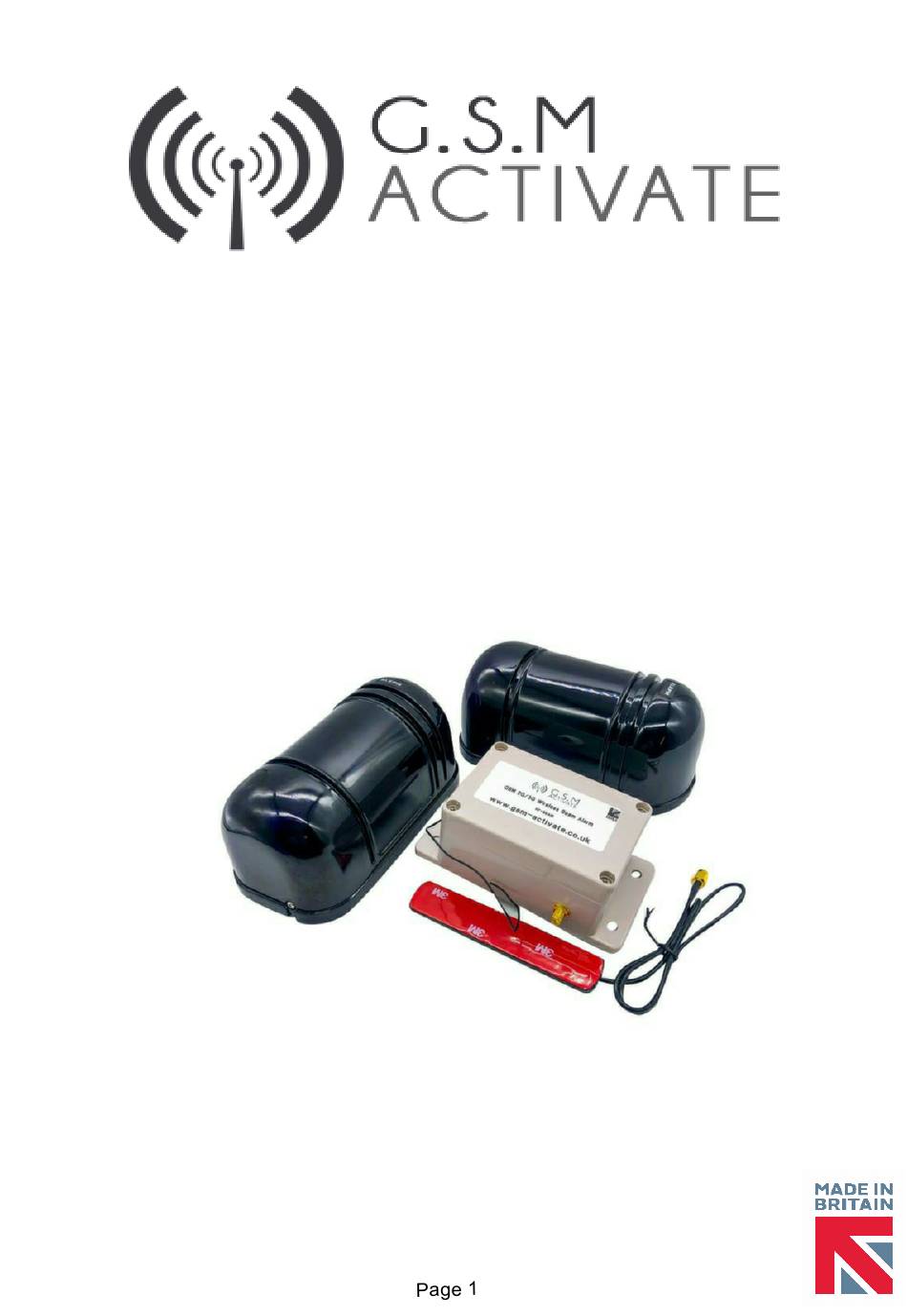

- Page 1 2G & 3G GSM Wireless Beam Alarm www.gsm-activate.co.uk MODEL ECO - BEAM...
-
Page 2: Product Information
Product Information Our 2G/3G GSM Wireless Beam Alarm is a standalone alarm system suitable for indoor and outside use. It will alert you using GSM technology by sending a text message and/or a phone call to your mobile phone or landline when the invisible infrared beams have been broken. The unit is also enclosed in an IP65 rated box which means it is perfectly weathered for outside installation and has also passed testing in high heats and below freezing temperatures. -
Page 3: Signal Strength
Instructions IMPORTANT - PLEASE READ Please make sure you disconnect the power when you fit the simcard the place the simcard with the clipped corner facing inwards. Please see picture above. Signal Strength To help make sure you place the unit in a suitable position you can text the unit to see how much signal strength the detector is receiving by sending the text command #SIGNAL# The detector will perform a test on the signal strength. - Page 4 How to programme contact numbers After inserting your simcard in to the GSM module turn the unit on and wait until you see GREEN LED is on. This will indicate that you have a mobile signal and the unit is ready for use.
- Page 5 How to program the SMS text message You can now change the alarm message from “input detected” to one of your choice. To change the message send the text command as follows #MESS=YOUR MESSAGE# The detector will reply with the text message - “MESSAGE STORED” PLEASE NOTE You can only use a maximum of 19 characters including spaces for your customised Message.
- Page 6 Installation of the Infrared Beams PLEASE NOTE The transmitter and receiver will work from a distance of 100 metres outside and 300 metres inside. Additionally, the receiver beam should be within 20 metres of the GSM detector. 1. Find a suitable location for the transmitter and receiver and ensure the sensors are mounted on a stable structure.
- Page 7 How to use the 2G/3G Beam Alarm Once you have positioned the beams, installed the simcard and programmed the numbers the system is ready to use. The GSM Wireless Beam Alarm has two modes, alarm mode and auto mode. Alarm mode: you have to arm the alarm manually each time when required via a text message command or via the keyfob provided.
- Page 8 Pairing the Wireless Sensors To connect the wireless sensors you will need to go through a process so that the devices are matched to the receiver on the GSM module. 1. Switch ON the GSM module 2. Switch ON the beams and allow them to warm up for 15 seconds. 3.
- Page 9 Quick Reference Factory Reset To reset the unit back to factory settings you will need to send a text message #RESET# GREEN ready LED will flash eight times. WARNING - This will reset all your parameters. Please only send a reset command when Necessary as it will clear all of your programmed numbers.
