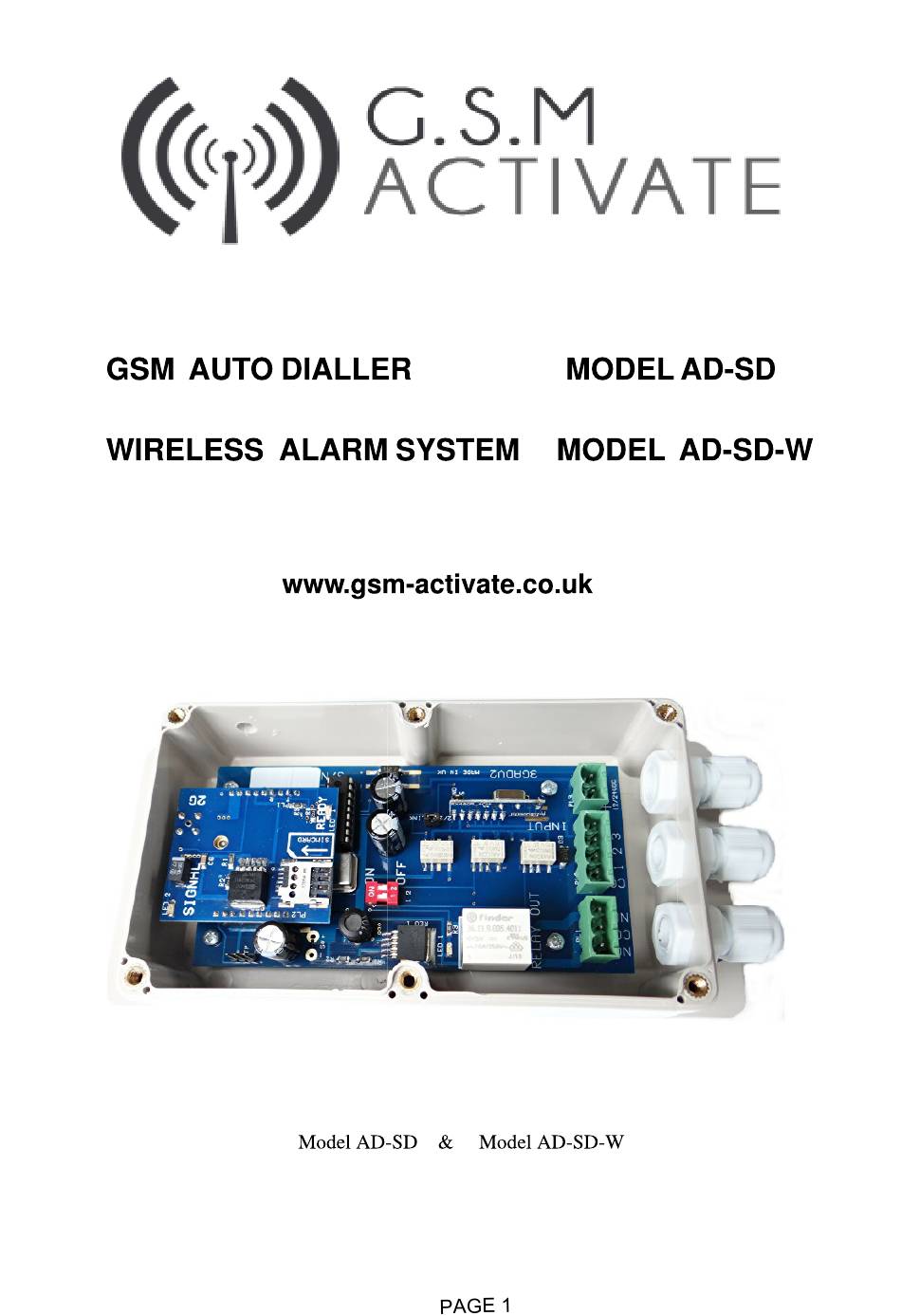

- Page 2 Our AD-SD Auto Dialler is a versatile unit which can be attached to many of your electronic devices in your homes; work, gardens or wherever you may need it. It will alert you using GSM technology by sending you a text message or phone call to your mobile phone or land line.
- Page 3 INSTRUCTIONS Dipswitch 2 ON= Relay Mode on Ref page 6 2 OFF= Relay Mode off Slide the simcard into the holder making sure that the clipped corner of the simcard lines up with the clipped corner of the simcard holder as picture above. To help make sure that you place the unit in a suitable position you can text the unit to see how much signal strength the dialler is receiving by texting the command The dialler will perform a test on the signal strength.
- Page 4 After inserting your simcard into the Auto-Dialer turn the unit on and wait until you see the LED is on. This will indicate that you have a mobile signal and the unit is ready for use. You will now need to send a text with the contact number Note - To avoid confusion we have colour coded the hash (#) and the equals (=) symbols.
- Page 5 You can now change the alarm message for inputs 1 & 2 to your own choosing. To change the message send the text command as follows. The default message is ( The default message is ( This will change the message to The auto dialler can be programmed to send you a telephone call after each text alarm has been sent.
- Page 6 The Auto Dialler has two independent input’s Input 1 = Terminal 1 connection. (Negatively triggered) pulled to ground Input 2 = Terminal 2 connection. (Negatively triggered) pulled to ground When the inputs are triggered the will flash 6 times to indicate that a trigger has been received and it will send a text / call message to the saved user numbers.
-
Page 7: Dip Switch Settings
To reset the unit back to factory settings you will need to send a text message Warning this will reset all of your parameters, only send a reset command when necessary. The green ready led will flash 8x Dipswitch settings Typical Application of Product Dipswitch 1 = ON = 3G Selected... - Page 8 Model AD-SD-W WIRELESS has an RF module which allows connection to various wireless sensors, that will then trigger the dialler in the same way as hard wiring into input 1 and input 2. To connect wireless sensors you will need to go through a process so that the devices are matched to the receiver on the dialler.
- Page 9 Please make sure you supply a 9 - 24 volts DC from the battery terminals via a 2 amp fuse (for alarm panel installations) INPUT 1+2 As you can see in the circuit diagram above the inputs can be activated by pulling the input 1 &...
