- Page 1 GSM AUTO DIALER Remote monitoring & Control using your mobile phone www.gsm-activate.co.uk MODEL NUMBER - ADRV11...

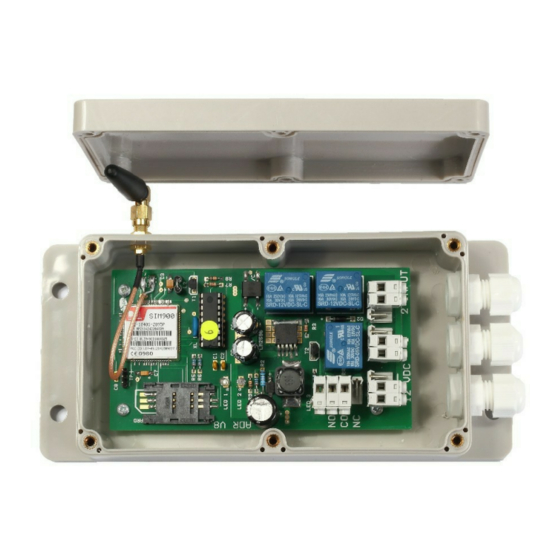

- Page 2 Product Information Our GSM Auto-Dialer is a versatile unit which can be attached to many of your electronic devices in your homes; work, gardens or wherever you may need it. It will alert you using GSM technology and send you a text message or make a call to your mobile phone or land line so you are aware if there is a problem, failure or status change wherever you are in the world.
- Page 3 INSTRUCTIONS 1. Slide back the sim door and lift it up. 2. Slide the simcard into the door making sure that the clipped corner of the simcard lines up with the clipped corner of the simcard holder. 3. Close the sim door. 4.
- Page 4 Ho w to p ro g ra m th e c o n ta c t n u mb e r. After inserting your simcard into the Auto-Dialer turn the unit on and wait until you receive a steady blue light, this will indicate that you have a mobile signal. You will now need to send a text with the contact number Note - To avoid confusion we have colour coded the hash (#) and the equals (=) symbols.
- Page 5 How to program the SMS text message You can now change the alarm message to one of your own choosing. To change the message send the text command as follows. #MESSAGE= YOUR MESSAGE This will change the message to “YOUR MESSAGE” The default message is ALARM NOTE...
- Page 6 RELAY OUTPUT: This unit has a 10 amp relay output which can be used to turn on external equipment such as an alarm bell or lighting. The relay is programmed to come on when the Auto- Dialer has been triggered for a period of 30 seconds. Note Please make sure you have credit on your simcard to receive text messages and acknowledgments.
- Page 7 Quick Reference SEND TEXT OPERATION ACKNOWLEDGEMENT #SIGNAL# Check Signal Strength 0 - 30 #1=number# To Store Number Number Stored #Delete=1# To Delete Number Number Stored #MESSAGE=yourmessage# Change Default Message Message Stored #Reset?# Factory Reset Red Light Flashes X6 Typical Application of Product ●...
- Page 8 NOTE - Please make sure you supply a 9 - 24 volts DC from the battery terminals via a 2 amp fuse (for alarm panel installations) INPUT 1+2 As you can see in the circuit diagram above the inputs are relays and can be activated by supplying 9v to 24v volts across the input terminals for 4 seconds.
