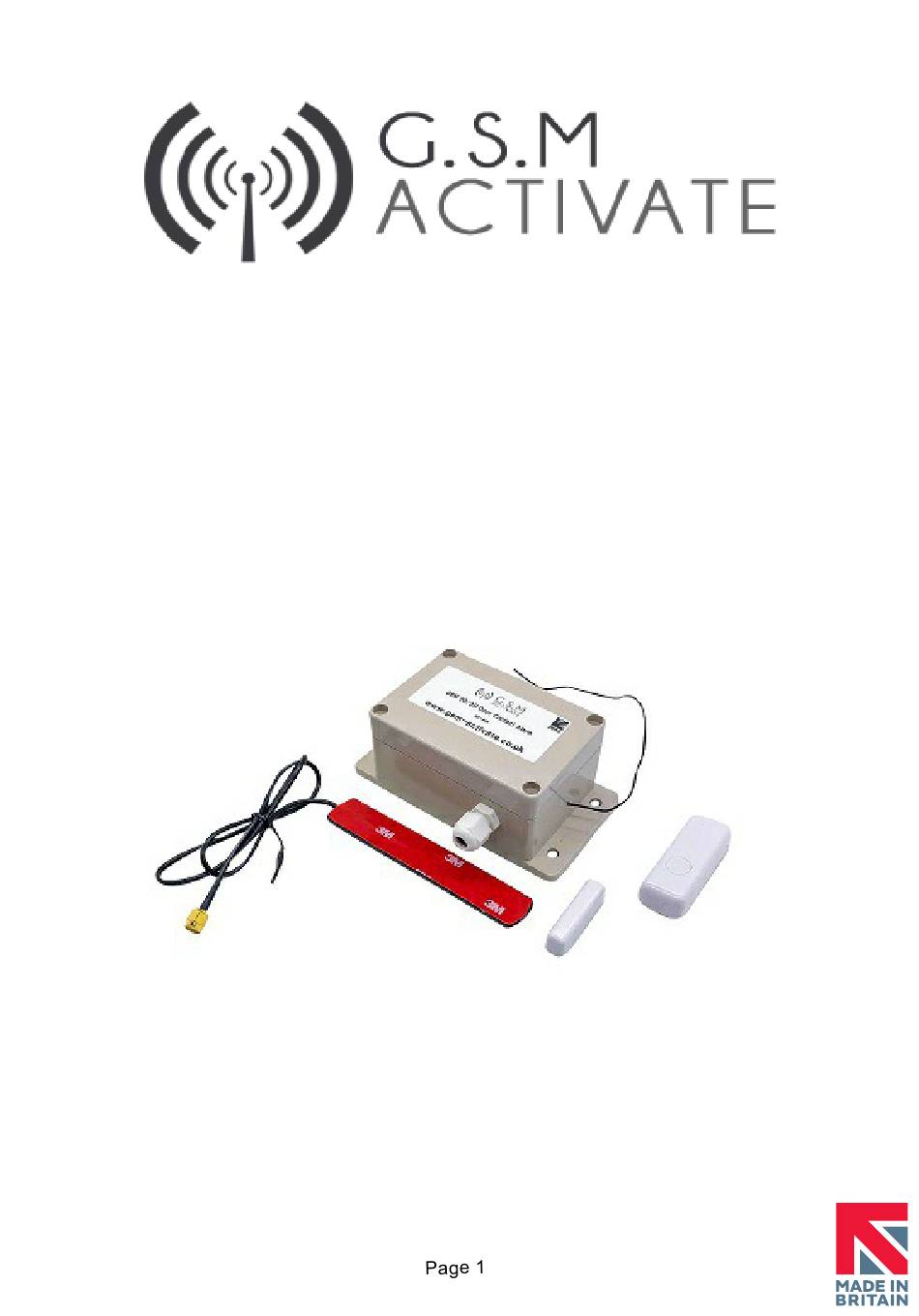

- Page 1 GSM 2G & 3G Door Contact Alarm CO RANGE MODEL ECO DOOR V2...

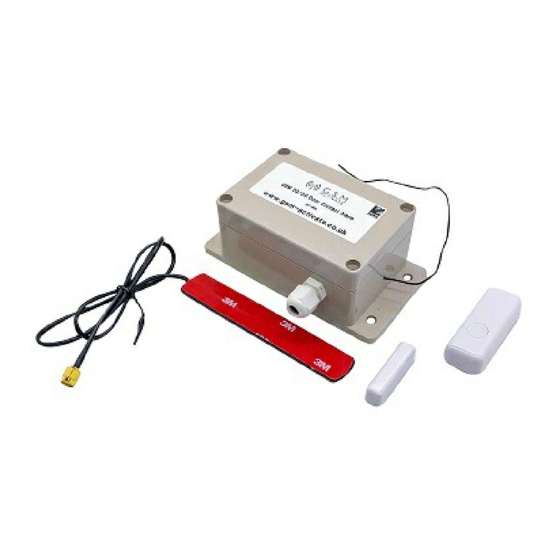

- Page 2 Product Information Our 2G/3G GSM Door Contact Alarm is a standalone alarm system for smaller rooms inside properties. It will alert you using GSM technology by sending you a text message and/or phone call to your mobile phone or landline when the sensor has been broken alerting you to a possible intrusion.
- Page 3 Instructions IMPORTANT- PLEASE READ Please make sure you disconnect the power when you fit the simcard. Then slide the simcard into the holder making sure that the clipped corner of the simcard lines up with the clipped corner of the simcard holder as seen in the image above. Signal Strength To help ensure that you place the unit in a suitable position you can text the unit to see how much signal strength the detector is receiving by texting the command,...
- Page 4 How to Programme Mobile Numbers After inserting the simcard into the GSM module, turn the unit on and wait until you see the GREEN LED is on. This indicates that the module has a signal and the unit is ready for use. Please Note To avoid confusion we have colour coded the hash (#) and the equals (=) symbols.
- Page 5 Telephone Call Alerts The Door Contact Alarm can be programmed to send you a telephone call after each text alarm has been sent. You will receive approximately three ring tones. The unit will then hang up automatically. This is to prevent call charges being incurred. To text call alerts to ON please send the text message #CALL=ON# The unit will reply back with the message - “CALL ON”...
- Page 6 Arm Via Text Message To set the alarm to ON you will need to send the text message #ALARM=ON# This will activate the alarm #ALARM=OFF# This will deactivate the alarm It is important to remember that once the alarm has been triggered you will need to reset the alarm by sending the text command #ALARM=ON# to reactivate the alarm or activate...
- Page 7 Pairing the Wireless Door Sensors To connect wireless door sensors you will need to match the deveices to the receiver on the dialler. 1. Hold down the pairing button on the RF Module for 3 seconds (refer to figure 1) 2.
- Page 8 Quick Reference Factory Reset To set the unit back to factory settings you will need to send a text message #RESET# Please Note - doing this will reset ALL of your parameters. Only send a reset command when necessary. GREEN ready LED will flash eight times.
