2

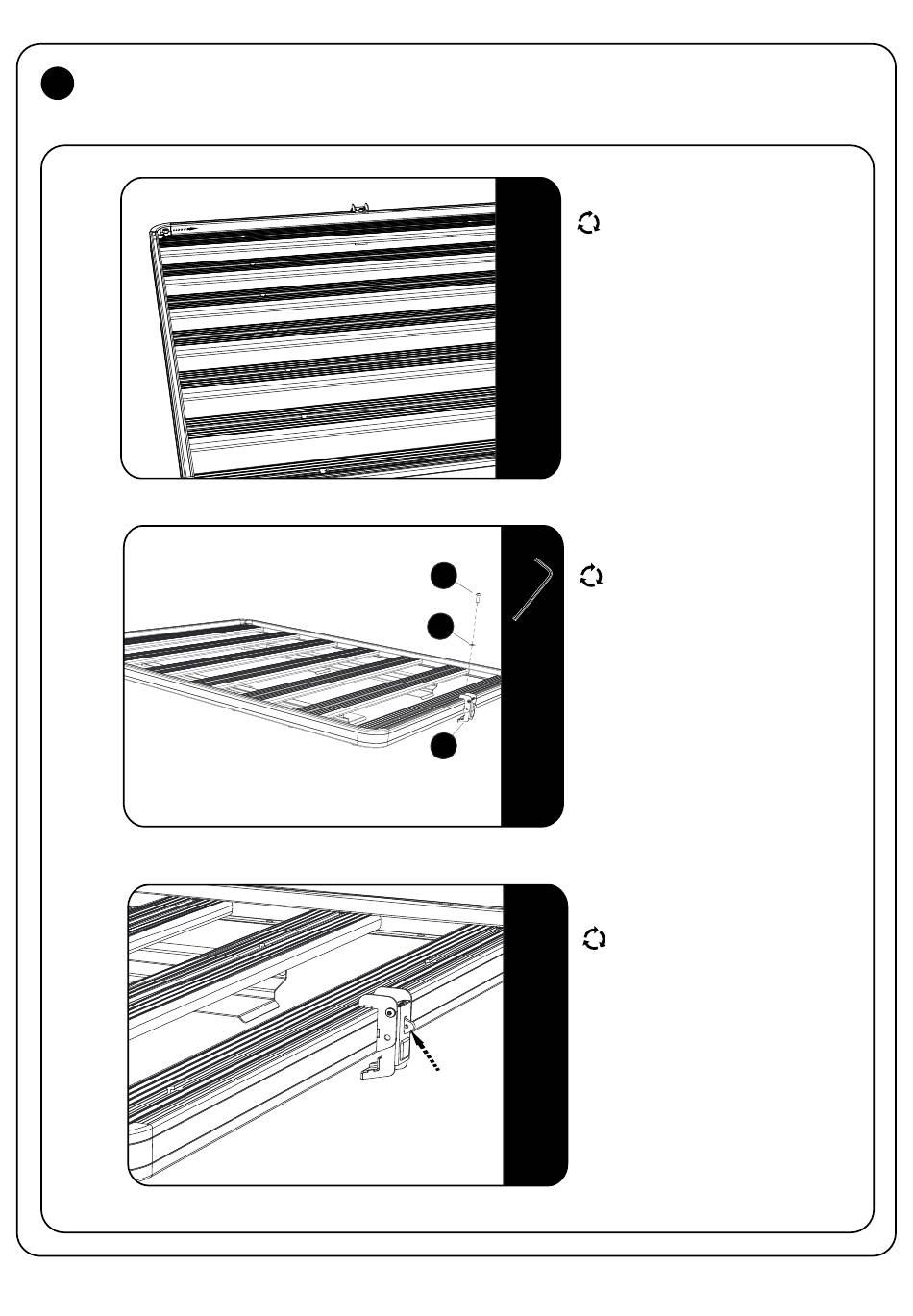

MOUNTING THE TABLE AT THE REAR OF THE RACK
2.1
2.4
2.4
Slide nut down T-Slot
2.5
2.2
2.6
2.3
TBRA016_REV_A00
11
12
5MM
13
Push Up To Open
4
Inserta M8 nyloc nut (item 6) dome side
down into the "U" channel of the rack
through the gap in the corner as shown.
Slide the nyloc nut to the center of the rack.
Place the latch (item 13) onto the rack,
lining up the mounting hole in the latch
with the nyloc nut in diagram 2.4. Secure
the latch in position using the M8x20
button head and M8 flat washer
(item 11 and 12)
Open the latch by pushing on the
latch release and slide the table into
position. Check that the table has no
forward/backward movement when the
latch is closed. If it does, loosen the nyloc
nuts (item 6) from diagram 2.1 and adjust
so that the table has no movment in the
slides when the latch is colsed.
A small padlock can be used through the
hole in the latch release should you wish
to lock the table.
© COPYRIGHT 2016 FRONT RUNNER VEHICLE OUTFITTERS
