CALIBRATION PROCEDURE
NI 9263

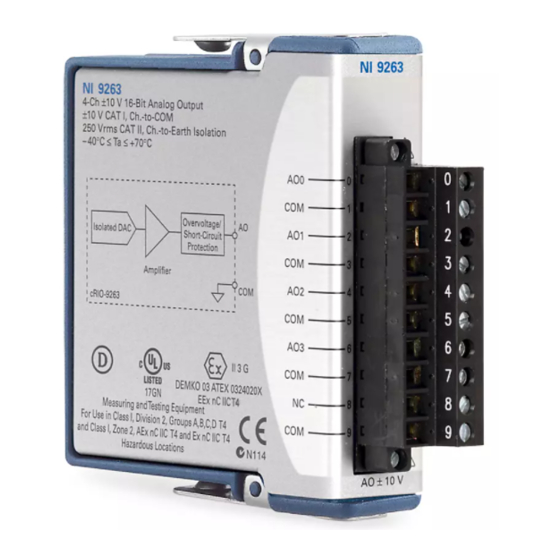

4-Channel, ±10 V, 16-Bit Analog Voltage Output Module
This document contains the verification and adjustment procedures for the National Instruments
9263. For more information on calibration solutions, visit
Contents
Software.................................................................................................................................... 1
Documentation.......................................................................................................................... 2
Test Equipment......................................................................................................................... 3
Test Conditions......................................................................................................................... 3
Initial Setup............................................................................................................................... 3
Verification ............................................................................................................................... 4
Accuracy Verification....................................................................................................... 4
Adjustment................................................................................................................................ 6
Accuracy Adjustment ....................................................................................................... 6
EEPROM Update ..................................................................................................................... 6
Reverification ........................................................................................................................... 7
Accuracy Under Calibration Conditions .................................................................................. 7
Worldwide Support and Services ............................................................................................. 8

Software

Calibrating the NI 9263 requires the installation of NI-DAQmx 9.6 or later on the calibration
system. You can download NI-DAQmx from
LabVIEW, LabWindows
need to install support for the application software that you intend to use.
™
™
/CVI
, ANSI C, and .NET. When you install NI-DAQmx, you only
ni.com/calibration
ni.com/downloads
.
NI-DAQmx supports
