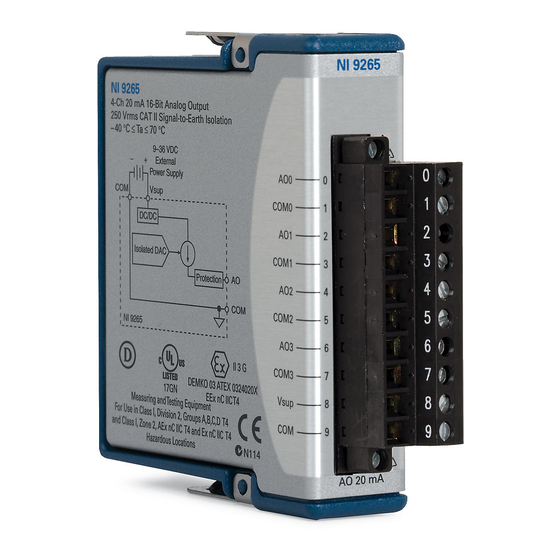

4-channel, 0 ma to 20 ma, 16-bit analog output module
Hide thumbs Also See for NI 9265:

Advertisement

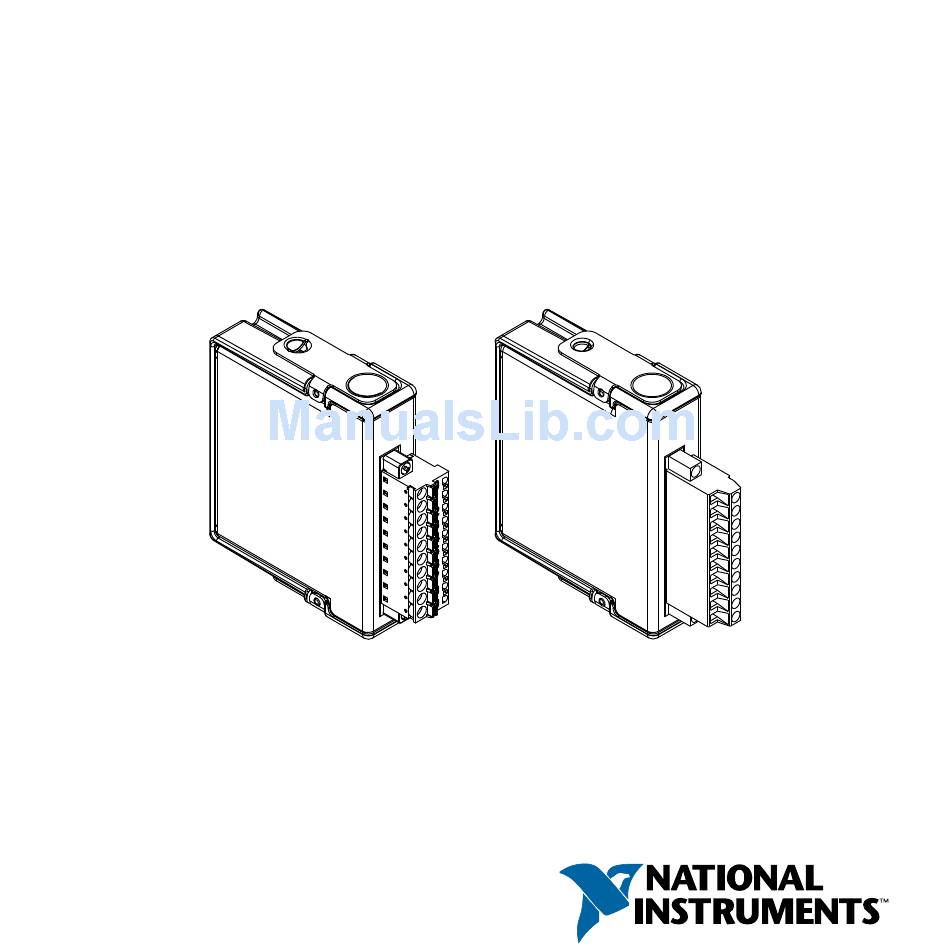

GETTING STARTED GUIDE
NI 9265
4-Channel, 0 mA to 20 mA, 16-Bit Analog
Output Module
This document explains how to connect to the NI 9265.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NI 9265 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for National Instruments NI 9265

  • Page 1 GETTING STARTED GUIDE NI 9265 4-Channel, 0 mA to 20 mA, 16-Bit Analog Output Module This document explains how to connect to the NI 9265.
  • Page 2: Safety Guidelines

    The guidelines in this document are specific to Note the NI 9265. The other components in the system might not meet the same safety ratings. Refer to the documentation for each component in the system to determine the safety and EMC ratings for the entire system.
  • Page 3: Safety Voltages

    5,000 m altitude 60 VDC, Measurement Category I The maximum voltage that can be applied between any channel or Vsup terminal and a COM terminal without damaging the module or other devices. NI 9265 Getting Started Guide | © National Instruments | 3...
  • Page 4 This category refers to local-level electrical distribution, such as that provided by a standard wall outlet, for example, 115 V for U.S. or 230 V for Europe. 4 | ni.com | NI 9265 Getting Started Guide...
  • Page 5: Safety Guidelines For Hazardous Voltages

    Do not connect the NI 9265 to signals or use for Note measurements within Measurement Categories III or Safety Guidelines for Hazardous Voltages If hazardous voltages are connected to the device, take the following precautions. A hazardous voltage is a voltage greater than 42.4 Vpk voltage or 60 VDC to earth ground.
  • Page 6: Safety Guidelines For Hazardous Locations

    Safety Guidelines for Hazardous Locations The NI 9265 is suitable for use in Class I, Division 2, Groups A, B, C, D, T4 hazardous locations; Class I, Zone 2, AEx nA IIC T4 and Ex nA IIC T4 hazardous locations; and nonhazardous locations only.
  • Page 7: Special Conditions For Hazardous Locations Use In Europe And Internationally

    II 3G and is suitable for use in Zone 2 hazardous locations, in ambient temperatures of -40 °C ≤ Ta ≤ 70 °C. If you are using the NI 9265 in Gas Group IIC hazardous locations, you must use the device in an NI chassis that has been evaluated as Ex nC IIC T4, Ex IIC T4, Ex nA IIC T4, or Ex nL IIC T4 equipment.
  • Page 8: Electromagnetic Compatibility Guidelines

    To minimize interference with radio and television reception and prevent unacceptable performance degradation, install and use this product in strict accordance with the instructions in the product documentation. 8 | ni.com | NI 9265 Getting Started Guide...
  • Page 9: Special Conditions For Marine Applications

    In addition, take precautions when designing, selecting, and installing measurement probes and cables to ensure that the desired EMC performance is attained. NI 9265 Getting Started Guide | © National Instruments | 9...
  • Page 10: Preparing The Environment

    Preparing the Environment Ensure that the environment in which you are using the NI 9265 meets the following specifications. Operating temperature -40 °C to 70 °C (IEC 60068-2-1, IEC 60068-2-2) Operating humidity 10% RH to 90% RH, (IEC 60068-2-78) noncondensing...
  • Page 11 Vsup Power Supply COM You must use 2-wire ferrules to create a secure Note connection when connecting more than one wire to a single terminal on the NI 9265. NI 9265 Getting Started Guide | © National Instruments | 11...
  • Page 12: Connecting A Load

    The NI 9265 has four analog output channels, AO. Each channel has a common terminal, COM, that is internally connected to the isolated ground reference of the module. The NI 9265 also has a terminal for an external power supply, Vsup, and an external power supply common terminal, Power Supply COM.
  • Page 13: Connecting An External Power Supply

    Load NI 9265 Connecting an External Power Supply You must connect an external power supply to the NI 9265. This power supply provides the current for the devices you connect to the module. NI 9265 Getting Started Guide | © National Instruments | 13...
  • Page 14: High-Vibration Application Connections

    • Use ferrules to terminate wires to the detachable connector. • Use the NI 9927 backshell kit with the NI 9265 with screw terminal or the NI 9981 backshell kit with the NI 9265 with spring terminal. 14 | ni.com | NI 9265 Getting Started Guide...
  • Page 15: Where To Go Next

    NI 9265 Datasheet NI-RIO Help NI-DAQmx Help LabVIEW FPGA Help LabVIEW Help RELATED INFORMATION C Series Documentation Services & Resources ni.com/services ni.com/info cseriesdoc Located at ni.com/manuals Installs with the software NI 9265 Getting Started Guide | © National Instruments | 15...
  • Page 16: Worldwide Support And Services

    (EMC) and product safety. You can obtain the DoC for your product by visiting ni.com/certification. If your product supports calibration, you can obtain the calibration certificate for your product at ni.com/calibration. 16 | ni.com | NI 9265 Getting Started Guide...
  • Page 17 For telephone support outside the United States, visit the Worldwide Offices section of ni.com/niglobal to access the branch office websites, which provide up-to-date contact information, support phone numbers, email addresses, and current events. NI 9265 Getting Started Guide | © National Instruments | 17...
  • Page 18 Refer to the NI Trademarks and Logo Guidelines at for information on ni.com/trademarks National Instruments trademarks. Other product and company names mentioned herein are trademarks or trade names of their respective companies. For patents covering National Instruments products/technology, refer to the appropriate location: Help»Patents in your software, file on your media, or the National Instruments Patent Notice at patents.txt...
