3 Description

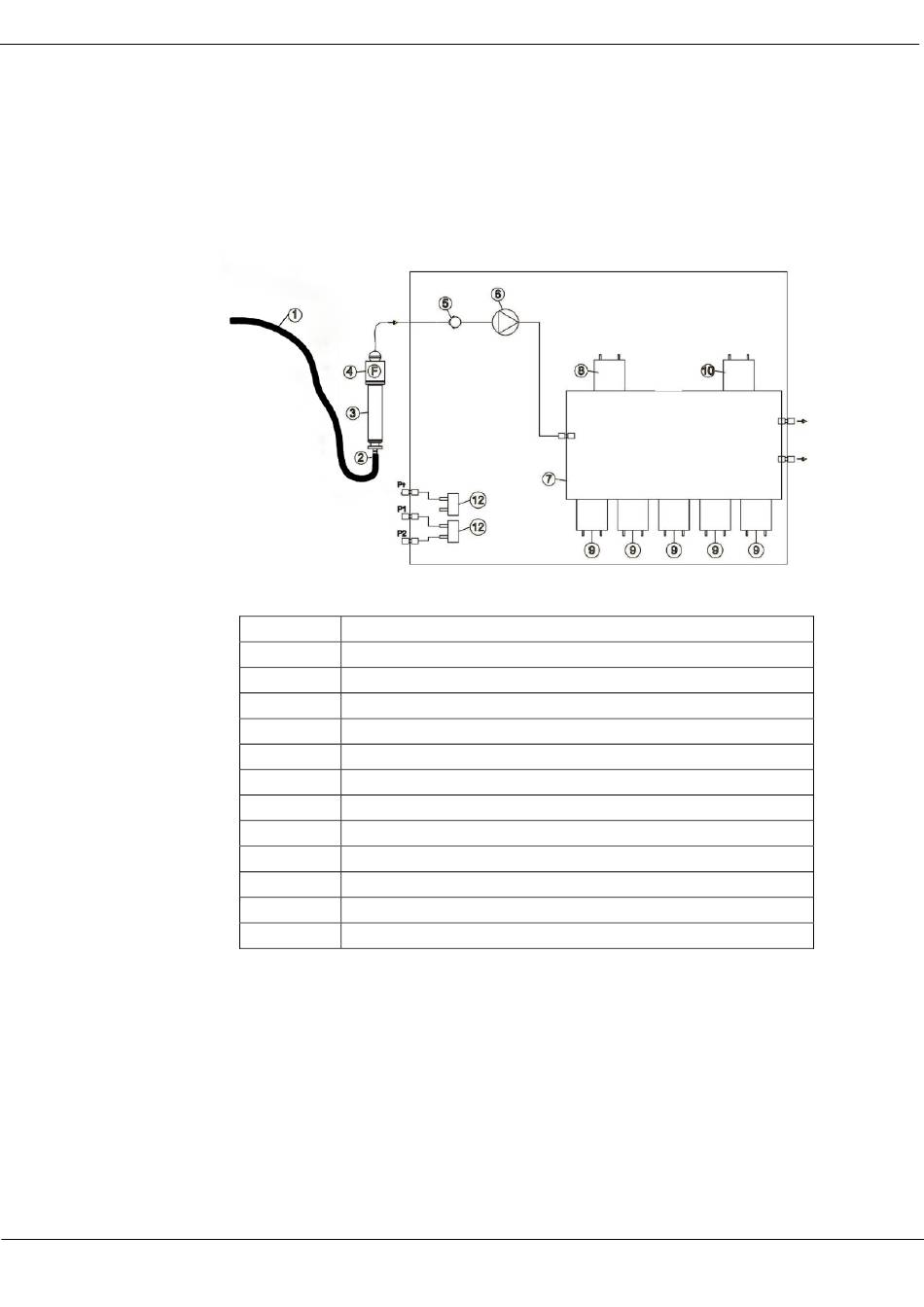

3.1. Gas flow diagram

The analyser extracts a partial volume of the biogas and analyses it for
its components using NDIR and electrochemical sensors.
*optional
MRU GmbH, D-74172 Neckarsulm
USER MANUAL OPTIMA7 Biogas
Position Description
1 Biogas sampling hose
2 Connection to gas outlet
3 Condensate separator
4 Star filter
5 Non return valve
6 Gas pump
7 Sensor chamber
8 O2-Sensor
9 Further electrochemical sensors * (CO, NO
10 CO2/CH4 NDIR Sensor
11 not used
12 Pressure sensor *
, H S)
2 2
14 / 78
