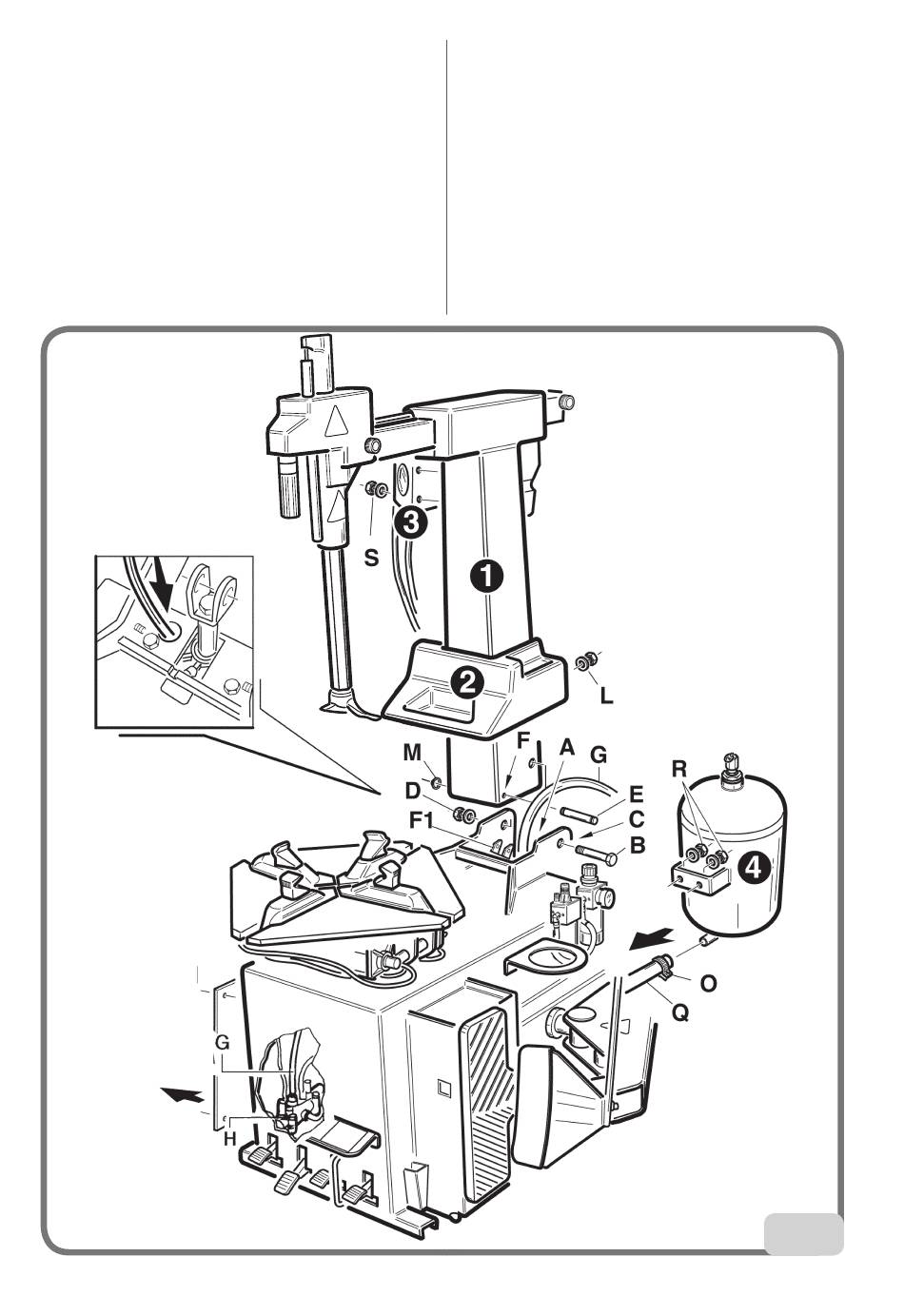

Assemble the different parts of the
machine (Fig. 2):
- Remove the side cover.
- Insert the air pipe G, into hole A behind
the column tilting cylinder.
- Assemble head 1, insert pin B into hole C
and lock it with the screw and washer D.
- Insert pin E into hole F and in the U-bolt
F1 of the column tilting cylinder and lock
it with ring M.
- Connect pipe G to the intermediate union
42
connected to the column lifting valve H.
- Assemble the box with pressure gauge
3 on column 1 and lock it with the screw
and washer S.
- Assemble the column guard 2 and lock
it with the screws and washers L.
- Fit the hose connector of the tank 4 into
hose Q, fasten the tank 4 to the machine
with nuts and washers R, and tighten the
clamp O onto the hose Q (FS version
only).
