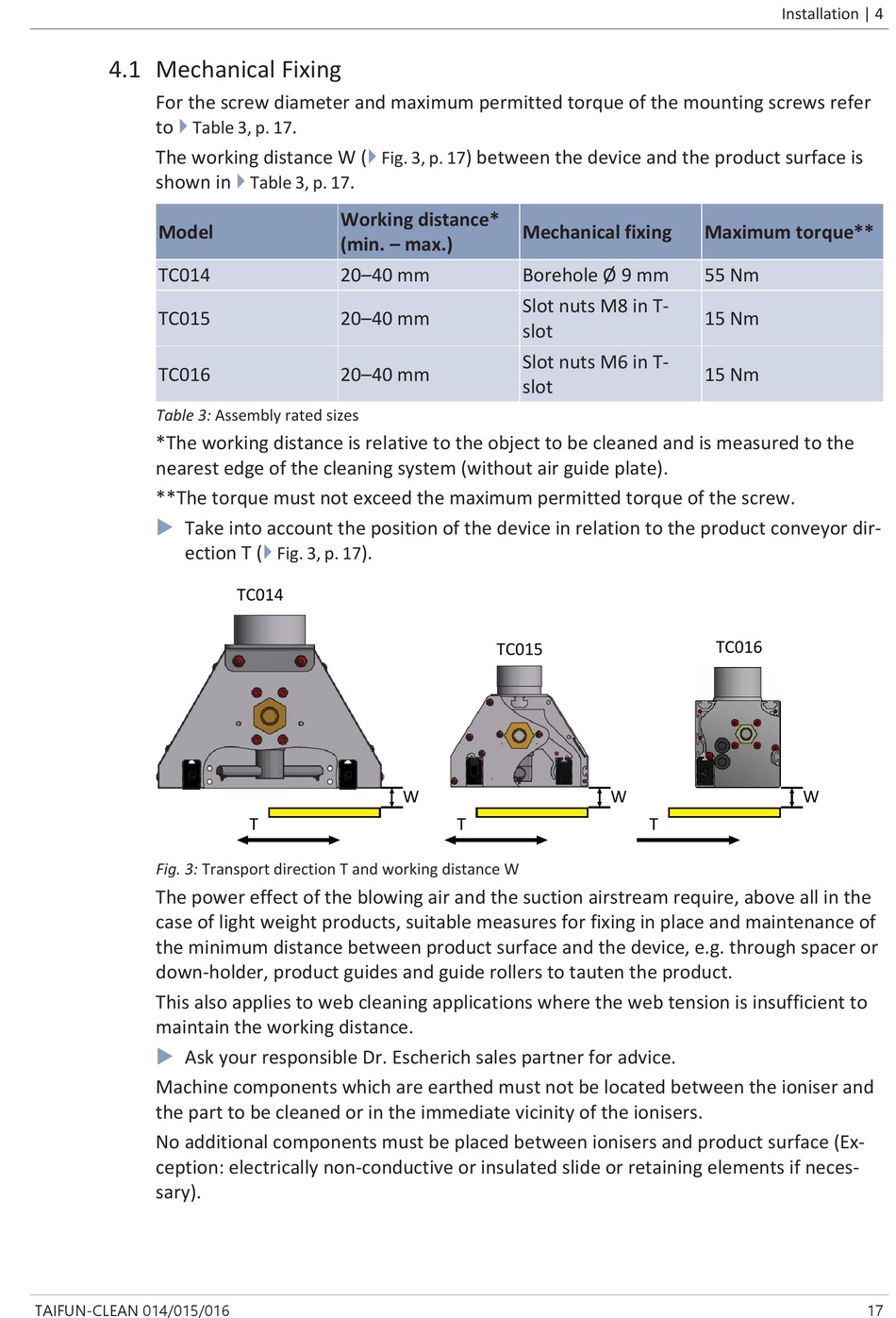

4.1 Mechanical Fixing

For the screw diameter and maximum permitted torque of the mounting screws refer
to }
Table 3, p. 17
The working distance W
shown in
Model
TC014
TC015
TC016
Table 3: Assembly rated sizes
*The working distance is relative to the object to be cleaned and is measured to the
nearest edge of the cleaning system (without air guide plate).
**The torque must not exceed the maximum permitted torque of the screw.
u
Take into account the position of the device in relation to the product conveyor dir-
ection T
Fig. 3: Transport direction T and working distance W
The power effect of the blowing air and the suction airstream require, above all in the
case of light weight products, suitable measures for fixing in place and maintenance of
the minimum distance between product surface and the device, e.g. through spacer or
down-holder, product guides and guide rollers to tauten the product.
This also applies to web cleaning applications where the web tension is insufficient to
maintain the working distance.
u Ask your responsible Dr. Escherich sales partner for advice.
Machine components which are earthed must not be located between the ioniser and
the part to be cleaned or in the immediate vicinity of the ionisers.
No additional components must be placed between ionisers and product surface (Ex-
ception: electrically non-conductive or insulated slide or retaining elements if neces-
sary).
TAIFUN-CLEAN 014/015/016
.
(}
Fig. 3, p. 17
} .
Table 3, p. 17
Working distance*
(min. – max.)
20–40 mm
20–40 mm
20–40 mm
(} ).
Fig. 3, p. 17
TC014
W
T
) between the device and the product surface is
Mechanical fixing
Borehole Ø 9 mm
Slot nuts M8 in T-
slot
Slot nuts M6 in T-
slot
TC015
W
T
Installation | 4
Maximum torque**
55 Nm
15 Nm
15 Nm
TC016
W
T
