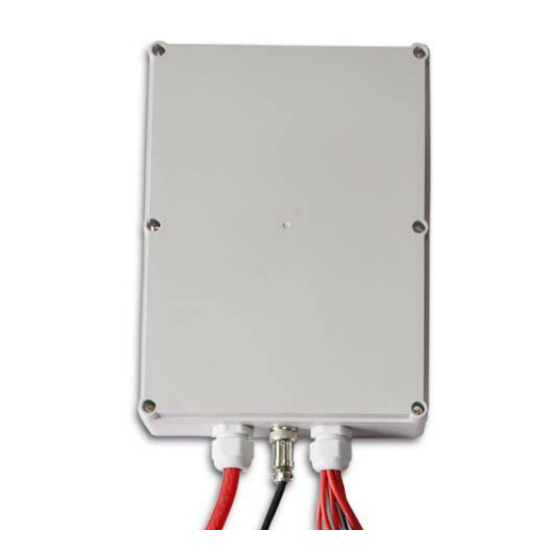

RF Wireless Remote Control Kit (Model 0020694 S8PX-DC12+1CV-8)

Package Include:

1 x Receiver: S8PX-DC12 / S8PX-DC24 (8 Channel / 8 Control Modes)
1 x Transmitter: CV-8
1 x User manual

Feature:

Application: It can be used in industry automation, agriculture automation and home automation, such as factory, house, farm, pasture, vehi c le, ship,
offshore operation, aerial vehi c le, field call, etc. It can remote control equipments on land, w ater and air, such as remote control lights, si r ens, locks,
motors, fans, w inches, blinds, linear actuators, doors, w i n dows, electric solenoid valves, security alarm, business signs and various devi c es.
Wireless control, easy to install.
Waterproof: The receiver has waterproof case and waterproof connector, it can be installed outdoors.
Each output has a fuse
DC Pow er Output: It can control DC equipment w ith voltage 9V / 12V / 24V.
High Pow er: Each channel can work at maximum current 30A, such as 360W/12V, 270W/9V, 720W/24V.
Design w ith low -power and high-speed CMOS technology.
You can turn on/ off the receiver w ith transmitter (remote control) from any place within a reliable distance.
Wireless RF signal can pass through walls, floors, doors or windows.
With reverse power protection and over current protection.
Reliable control: The receiver only works with the transmitter w hi c h use same code.
One/several transmitters can control one/several receivers simultaneously.
You can use two or more units in the same place.
External status LED:
Cable Length: 1m
Correspond w ith the transmitter buttons

Receiver Parameters:

Model No.: S8PX-DC09 / S8PX-DC12 / S8PX-DC24
Pow er Supply (Operating Voltage): DC9V± 1V (S8PX-DC09), DC12V± 1V (S8PX-DC12), DC24V±2V (S8PX-DC24)
Output: DC9V (S8PX- DC09), DC12V (S8PX-DC12), DC24V (S8PX-DC24)
Working Frequency: 315MHz / 433MHz
Channel: 8 CH
Control Modes: Toggle, Momentary, Latched, Toggle + Momentary, Toggle + Latched, Momentary + Latched
Static Current: ≤10mA
Maximum Working Current: 30A / each channel
PCB Size: 230mm x138mm x 18mm
Case Size: 240mm x 175mm x 50mm
Work w ith Fixed code transmitters

Transmitter:

Model No.: CV-8
Channel: 8 CH
Remote Control Distance: 500m / 1500ft (theoretically)
Encode: Fixed code by soldering
Unit size: 110mm x 50mm x 18mm
Pow er Supply: 1 x 23A -12V battery (included, can be used for 12 months)
Matching Transm itters:
The receiver can work with di f ferent transmitters, such as model CP-8/CV-8 (500M), or CB-8 (1000M).

Working Range:

With a transmitter (such as CV-8) to form a complete set, the maximum w orking distance can reach 500M in an open ground.
The maximum w orking distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it w ill
be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this
maximum w orking distance.
If you want to have a further working range, you can install an external antenna to the recei v er, and you also can use a powerful transmitter, such as
CB transmitters.

Usage (with the transmitter CV-8):

The receiver can be used to control 9V / 12V / 24V equipments. If the power suppl y of those equipments is DC 12V, you should choose the receiver
with same DC 12V version; and if the power suppl y of those equipments is DC 24V, you should choose the receiver with same DC 24V version.

Wiring:

If you w ant to control a DC 12V lamp, do as follow ing:
1) Connect the positive pole of DC pow er supply to "INPUT + (the big red line)", and connect the negative pole of DC pow er supply to "INPUT -
(black line)".
2) Connect the positive pole of lamp to "OUTPUT +(small line)", and connect the negative pole of lamp to "INPUT - (black line)".
Setting different control modes：
Setting different control modes (We have set the receiver as Toggle control mode before delivery. If you want to use other control mod es, do as
follow ing operation):
1) Learning Toggle control mode: When the receiver is in the status of LEARNING, press button 1 of the remote control.
Control mode Toggle ( Channel 1~8): Press -> On; Press again -> Off.
Press button 1: Turn on relay 1, terminal 1 output DC pow er.
Press button 1 again: Turn off relay 1, terminal 1 no output.
...
Press button 8: Turn on relay 8, terminal 8 output DC pow er.
