CaryMart S2X-DC06-ANT2 Manual

RF Wireless Remote Control Radio Controller / Transmitter & Receiver

Package Include:

1 x Receiver: S2X-DC06-ANT2 / S2X-DC09-ANT2 / S2X-DC12-ANT2 / S2X-DC24-ANT2 (2 Channel / Four Control Mode)
1 x Transmitter: CB-2
1 x User manual

Feature:

Wireless control, easy to install
Direct power output; control Lights, Motors, Fans, electrically operated Doors / Locks / Windows / Blinds / Cars or Other Appliances.
You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass
through walls, floors and doors.
With characteristics of reverse power protection and over current protection
Audible / visual indication
Use microcontroller model of EM78P156, an 8-bit microprocessor designed and developed with low-power and high-speed CMOS technology.
Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bit code.
One/several transmitters can control one/several receivers simultaneously.
If you use two or more receivers in the same place, you can set them with different codes.
Transmitting Frequency: 315MHz / 433MHz
Working distance of transmitter and receiver with external extend antenna: 2000M / 6000ft (theoretically)
Receiver:
Model No.: S2X-DC06-ANT2 / S2X-DC09-ANT2 / S2X-DC12-ANT2 / S2X-DC24-ANT2
Channel: 2 CH
Control Modes: Toggle, Momentary, Latched, Momentary + Toggle
Coding Type: Fixed code
Coding Setting: By learning
Power Supply (Operating Voltage): DC6V (S2X-DC06-ANT2), DC12V±1V (S2X-DC12-ANT2), DC9V±1V (S2X-DC09-ANT2), DC24V±1V
(S2X-DC24-ANT2)
Output: DC6V (S2X-DC06-ANT2), DC12V (S2X-DC12-ANT2), DC9V (S2X-DC09-ANT2), DC24V (S2X-DC24-ANT2)
PCB Size: 67mm x 50mm x 18mm
Case Size: 75mm x 54mm x 27mm
Static Current: ≤6mA
Maximum Working Current: 10A / each channel
External Extend Antenna:
Frequency Range: 300~450MHz
Impedance: 50Ω
Antenna Length: 15cm
Cable Length: 150cm
Weight: 35g
Anti-interference, waterproof, shielded wire set inside
Magnetic stand design for easy to install

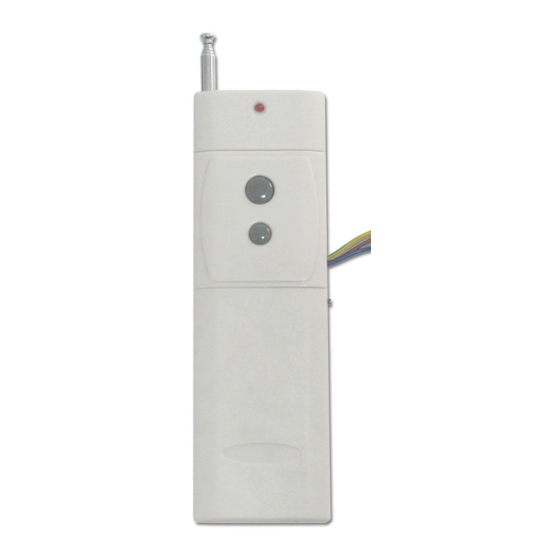

Transmitter:
Model No.: CB-2
Channel: 2 CH
Remote Control Distance: 1000m / 3000ft (theoretically)
Encode: Fixed code by soldering
Unit size: 135mm x 42mm x 25mm
Power Supply: 1 x 6F22-9V battery (included, can be used for 12 months)
Usage:
Setting different control modes (We have set the receiver as Toggle control mode before delivery. If you want to use other control modes, do as
following):
1) Setting control mode Toggle: Only connect Jumper-2.
Press big button: Turn on the relay 1, terminal OUT 1 (A&B) outputs DC power.
Press big button again: Turn off the relay 1, terminal OUT 1 no output.
Press small button: Turn on the relay 2, terminal OUT 2 (A&B) outputs DC power.
Press small button: Turn off the relay 2, terminal OUT 2 no output.
2) Setting control mode Momentary: Only connect Jumper-1.
Press and hold big button: Turn on the relay 1, terminal OUT 1 (A&B) outputs DC power.
Release big button: Turn off the relay 1, terminal OUT 1 no output.
Press and hold small button: Turn on the relay 2, terminal OUT 2 (A&B) outputs DC power.
Release small button: Turn off the relay 2, terminal OUT 2 no output.
SHENZHEN GUIYUAN INDUSTRY DEVELOPMENT CO.,LTD
Http://www.carymart.com E-Mail: sale@carymart.com
