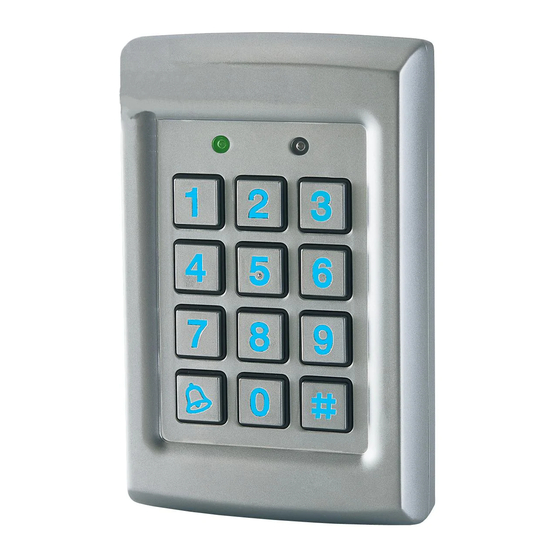

EASYBKA/R
SIMPLIFIED PROGRAMMING

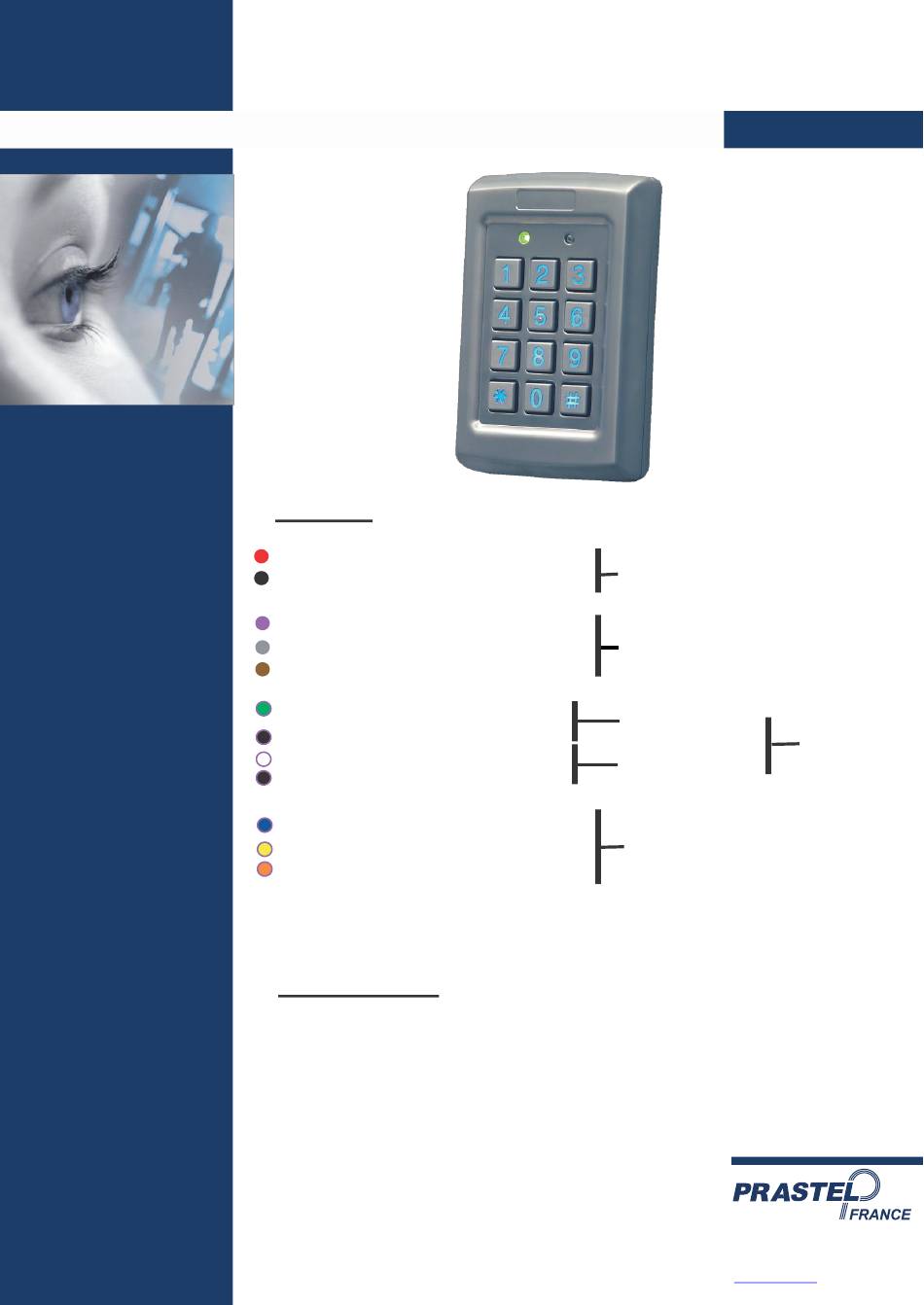

1) Wiring:
EASYBKA / EASYBKR
Red wire / +
= +VDC
Black wire / -
= Ground
Purple wire / COM = COM
Grey wire / NO
= NO Contact
Brown wire / NC
= NC Contact
Green wire / REX1 = Command
Black wire / -
= Ground
White wire / REX2 = Command
Black wire / -
= Ground
Blue wire / COM
= COM
Yellow wire / NO
= NO Contact
Orange wire / NC
= NC Contact
2) Programming:
By default the programmed codes are:
• Programming code = 1234
• Unique User code (Locking relay) = 2580
• Unique User code (Auxiliary relay) = 0852
ISEASYBK_EN_S_07_18.pdf
ACCESS CONTROL
12-24 VAC/DC
Main Relay Contact
Main Relay
Auxiliary Relay
Auxiliary Relay Contact
ZI Athélia, II
225, impasse du Serpolet
13704 La Ciotat Cedex
Tél. +33 04 42 98 06 06
www.prastel.com
Pushbutton
Advertisement
Related Manuals for PRASTEL EASYBKA
Summary of Contents for PRASTEL EASYBKA
- Page 1 EASYBKA/R SIMPLIFIED PROGRAMMING ACCESS CONTROL 1) Wiring: EASYBKA / EASYBKR Red wire / + = +VDC 12-24 VAC/DC Black wire / - = Ground Purple wire / COM = COM Grey wire / NO = NO Contact Main Relay Contact...
- Page 2 EASYBKA/R SIMPLIFIED PROGRAMMING ACCESS CONTROL A) Programming code modification: • Press the # touch twice: “the left indicator turns off and the right indicator turns red”. • Enter the master code: 1 2 3 4: “the right indicator turns green”.
