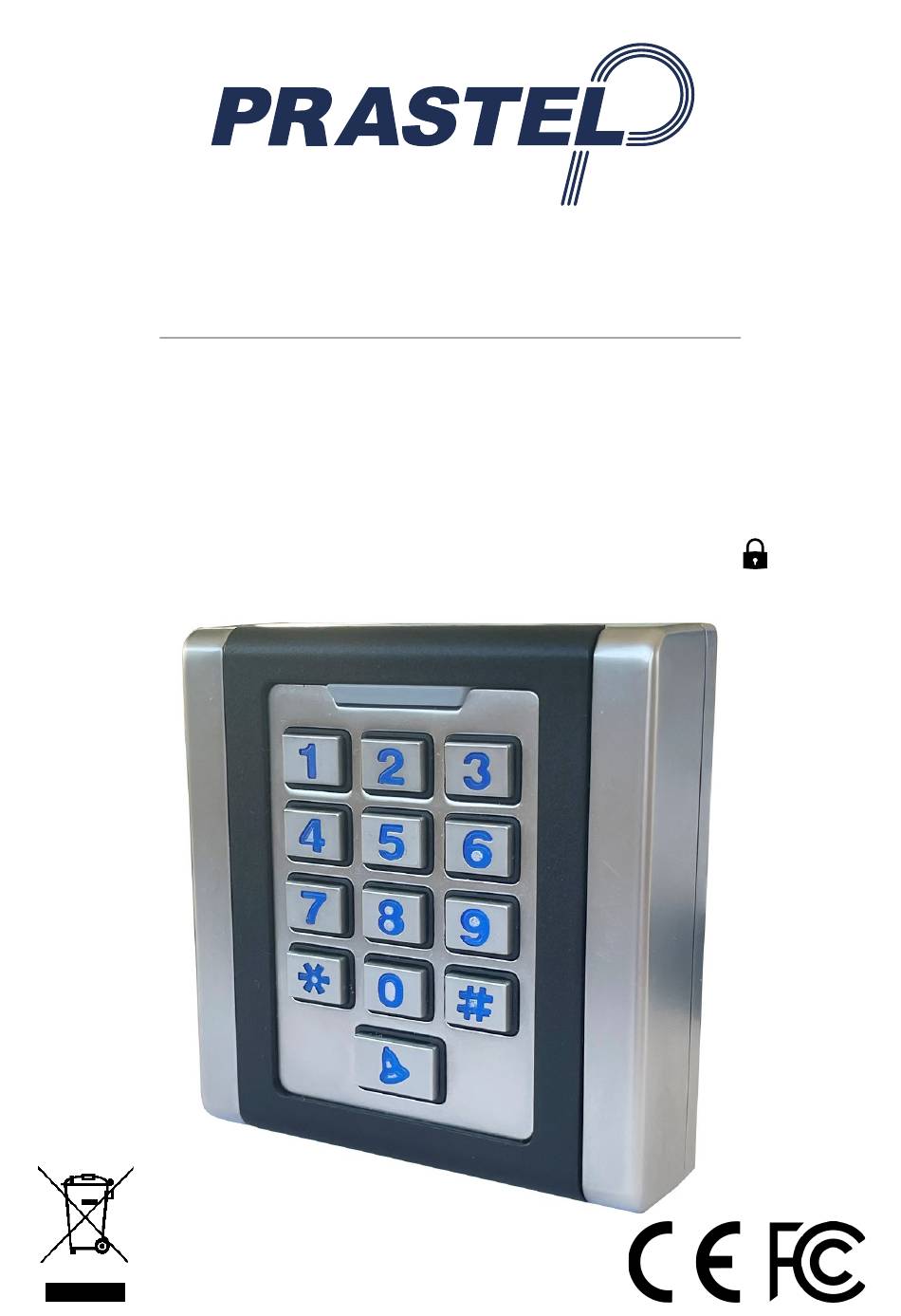

- Page 1 RADIOKEYD+ RADIOKEYDS+ Radio keypad encrypted & vandal proof...
-
Page 2: Technical Data
The RADIOKEYD+ (433MHz) /RADIOKEYDS+ (868MHz) encrypted radio keypad enables 2-channel wireless access control for doors and gates. It can be paired with a Prastel receiver in either encrypted or unencrypted ranges. Thus, this system makes it possible to activate, via a 433MHz/868MHz radio channel, the automatic opening/closing of a gate. - Page 3 Encrypted radio keypad ISRADIOKEYD+_EN_1124 4. CR2450 Battery: To access the battery compartment, unlock the cover using a coin or token (not included): Unlocked Locked 3V CR2450 BATTERY: WARNING: − Do not reverse the polarity of the battery. − Respect the type and reference of the original battery.
- Page 4 RADIOKEYD+/ RADIOKEYDS+ 5. OPERATING MODES MONOCODE (by default) radio transmission encrypted unencrypted + This mode is suitable for RESIDENTIAL sites. In this mode, the access codes are stored in the memory of the keypad (maximum 100 different codes). Each access code can be made up of 2 to 6 digits.
- Page 5 Encrypted radio keypad ISRADIOKEYD+_EN_1124 Scenario for a Monocode installation: Channel 1 Channel 2 Receiver Access 1 Access 2 1) Register the keypad in the receiver memory (see receiver manual). Channel 1 on relay 1 (= access 1) Channel 2 on relay 2 (= access 2) 2) Registration process for access codes and eventual assigned channels on the keypad: a) Enter programming mode.
- Page 6 RADIOKEYD+/ RADIOKEYDS+ MULTICODE only Unencrypted radio transmission This mode is suitable for COLLECTIVE sites with user management. All codes are directly registered in the receiver. Each code will be registered upstream in the receiver and on the defined channel. The memory capacity will depend on the capacity of the receiver. The user will be able to activate the channel of his choice.
- Page 7 Encrypted radio keypad ISRADIOKEYD+_EN_1124 CURTAIN radio transmission encrypted unencrypted + This mode is suitable for sectional doors and metal curtains. In this mode, the access codes are stored in the memory of the keypad (maximum 100 different codes). Each access code can be made up of 2 to 6 digits.
- Page 8 RADIOKEYD+/ RADIOKEYDS+ B. Programming on the TC1000-S control unit. Press 1 time on "RADIO LEARN" push button of the TC1000-S. The control unit buzzer emits long beeps every second. Code 1 (Learning opening The control unit buzzer emits two long beeps and then confirms the procedure with two short beeps. ...
-
Page 9: Keypad Settings
Encrypted radio keypad ISRADIOKEYD+_EN_1124 Keypad settings The keypad configuration can be set in programming mode � � � ENTER PROGRAMMING MODE � � � Press Master code � � � (1234 default) � � � Once in programming mode , follow the procedures below to set up the keypad. -
Page 10: Backlight Off
RADIOKEYD+/ RADIOKEYDS+ DELETE A SINGLE ACCESS CODE IN MONOCODE AND CURTAIN MODES Press Code to delete Deleting the entered code DELETE ALL ACCESS CODES IN MONOCODE AND CURTAIN MODES Press Master code � � � Deleting all saved codes ADDING/DELETE CODE(S) IN MULTICODE MODE In Multicode mode, the addition and deletion of code(s) is carried out directly on the receiver. -
Page 11: Indicator Light
Memory error � � � � � FLASHING 1 BEEP DECLARATION OF CONFORMITY DECLARATION DE CONFORMITE Prastel declares that the following equipment: radio keyepad RADIOKEYD+/RADIOKEYDS+ soussigné, Prastel, déclare l'équipement radioélectrique type clavier radio complies with Directive 2014/53/EU. RADIOKEYD+/RADIOKEYDS+ est conforme à la directive 2014/53/UE. Le texte complet de la The full text of the EU declaration of conformity is available at the following internetaddress: déclaration UE de conformité... -
Page 12: Safety Instructions
In addition, it does not cover parts subject to wear (batteries, etc.). If individual components and of the system as a whole the product has to be returned to PRASTEL for repair, it must be sent postage paid. Prastel will return the repaired product to the sender COD. Under any other...
