EASYBKA - EASYBKR
1. INTRODUCTION

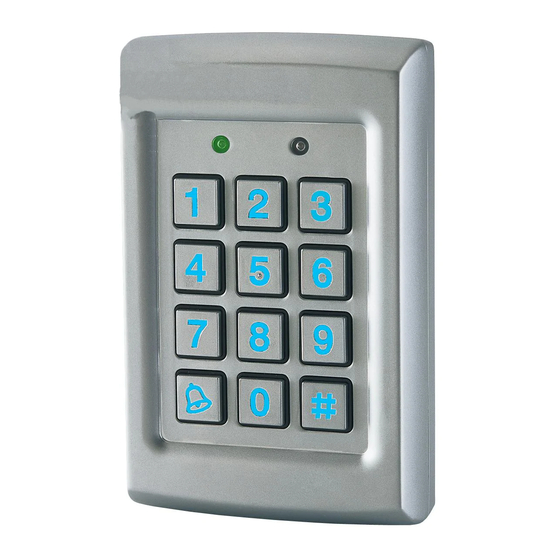

The EASYBKA/R is a vandal resistant keypad access control unit
suitable for external applications. The unit accepts up to 500 users and
provides entry via the use of PIN codes.
Model EASYBKA/R is provided with LED backlight.
2. MAIN TECHNICAL FEATURES
Operating Voltage Range:
Maximum Input Current:
without heating:
with heating, 12Vcc:
with heating, 24Vcc:
Lock Strike Relay:
Auxiliary Relay:
Inputs:
REX
Auxiliary Input (In / Monitor)
Operating Temperature:
Keypad Heater Enabled:
Keypad Heater Disabled:
IP protection degree:
Dimensions:
Weight:
ENGLISH
12-24 VAC/DC
70mA in standby – 130 mA max
550mA in standby – 610 mA max
350mA in standby – 465 mA max
Form C, 2A
Form C, 2A
N.O., Dry Contact
N.C., Dry Contact in Monitor Mode
N.O., Dry Contact in Input Mode
da –20 °C a 60 °C
da 0 °C a 63 °C
IP 65
120mm x 76mm x 22mm
521 g
30
ISEASYBK_08_18.pdf.docx

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EASYBKA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PRASTEL EASYBKA

Summary of Contents for PRASTEL EASYBKA

  • Page 1 ENGLISH EASYBKA - EASYBKR 1. INTRODUCTION The EASYBKA/R is a vandal resistant keypad access control unit suitable for external applications. The unit accepts up to 500 users and provides entry via the use of PIN codes. Model EASYBKA/R is provided with LED backlight.
  • Page 2 Wire the controller according to the wiring instructions on the following page. Screw the EASYBKA/R back cover to its mounting location. Return the front cover of the EASYBKA/R to the mounted back plate. Secure the front cover by using the supplied security screw in the Installation Kit.
  • Page 3 ISEASYBK_08_18.pdf.docx ENGLISH EASYBKA - EASYBKR Terminal Color block Description (EASYBKA) (EASYBKR) Power supply (12-24V) Black Ground REX1/BL Green REX/BL Purple Main relay : COM Brown N.C. Gray N.O. REX2 White IN/Monitor Blue Aux. Relay : COM Orange N.C. Yellow N.O.
  • Page 4 ISEASYBK_08_18.pdf.docx ENGLISH EASYBKA - EASYBKR Wiring the Lock Strike Relay and REX - / Black + / Red REX1/BL / Green NO(1) / Gray COM(1) / Violet ELECTRIC LOCK COMMON STRIKE POWER SUPPLY 12V – 24V AC/DC FAIL SAFE FAIL SECURE...
  • Page 5 ISEASYBK_08_18.pdf.docx ENGLISH EASYBKA - EASYBKR Wiring the Auxiliary Input and Output REX2 / White NO(2) / Yellow NC(2) / Orange COM(2) / Blue - / Black + / Red COMMON POWER SUPPLY 12V – 24V AC/DC Auxiliary Relay N.C. N.O.

  • Page 6: Normal, Secure & Master Users

    A Secure User must have a Primary and Secondary Code programmed, the two codes must not be the same. The Secure User can gain access when the EASYBKA/R is in any of its three Modes of Operation. In Normal Mode the Secure User must use their Primary Code to gain entry.

  • Page 7: Modes Of Operation

    ISEASYBK_08_18.pdf.docx ENGLISH EASYBKA - EASYBKR 5. Modes of Operation The EASYBKA/R has 3 Modes of Operation: Normal Mode Normal Mode is the default mode and the Mode LED is green. In Normal Mode the door is locked until a Primary Code is presented to the controller. Special codes such as "Open Code"...
  • Page 8 Insert the code. Mode LED will flash green. Press the "#" key to confirm the Mode change: the LED will turn green. The EASYBKA/R Auxiliary GREEN Input can also be used to switch the Mode of Operation from Normal to Secure and vice versa.

  • Page 9: Auxiliary Input And Output

    GREEN green. GREEN 6. Auxiliary Input and Output The EASYBKA/R auxiliary input and output can be configured in different combinations, for optimum usability in different applications. (see par.15). 7. Request to Exit (REX) Button The REX button must be located inside the premises to be secured and is used to open the door without the use of a proximity card or PIN code, it is usually located in a convenient location, e.g.
  • Page 10 Programming Menu System (see par.8.1). Some codes and settings are pre-programmed with Default Factory Settings. The table below shows the names of all the EASYBKA/R Menus, default factory codes and settings. The keypad accepts as default a 4-digit sequence and in the same manner, the access code for programming functions is of 4 digits (default 1234).
  • Page 11 ISEASYBK_08_18.pdf.docx ENGLISH EASYBKA - EASYBKR Default After modifying the code length Menu Description du menu Par. 4 digits 5 digits 6 digits 8 digits 2580 25802 258025 25802580 Change Open Code 0852 08520 085208 08520852 Change Auxiliary Code 1234 12341...
  • Page 12 EASYBKA/R has returned to Normal Mode. NOTE  Wrong entries may reset the controller back to Normal Mode.  While in Programming Mode if no key is pressed for 1 minute the EASYBKA/R will exit programming mode and return to Normal Mode.

  • Page 13: Changing The Open Code

    ISEASYBK_08_18.pdf.docx ENGLISH EASYBKA - EASYBKR 9. Changing the backlight and LED behavior Enter Programming Mode Press "6" to enter Menu 6, the Mode LED will flash green. Construct enter code using the following instructions: the first digit is 5, indicating...

  • Page 14: Changing The Auxiliary Code

    GREEN Press "1" to enter Menu 1. The Mode LED will turn red. GREEN Insert the new “Opening Code”. The EASYBKA/R returns to Normal Mode: the Door LED will turn off and the Mode LED will GREEN turn green. NOTE ...

  • Page 15: Changing The Programming Code

    Press "3" to enter Menu 3: the Mode GREEN LED will turn green. Insert the new “Programming Code”. GREEN GREEN The EASYBKA/R returns to Normal Mode: the Door LED will turn off and the Mode LED will turn green. GREEN NOTE ...

  • Page 16: Changing The Normal / Secure Code

    Insert a 4 digit code with 0 as the last digit for the selection of the by- pass mode. To cancel the access code to the by-pass mode, insert 0000. The EASYBKA/R returns to Normal Mode: the Door LED will turn off and the Mode LED will turn green.
  • Page 17 ISEASYBK_08_18.pdf.docx ENGLISH EASYBKA - EASYBKR 15. Defining Auxiliary Inputs/Outputs Enter Programming Mode. GREEN Press "6" to enter Menu 6: the Mode LED will GREEN GREEN flash green. Construct 4-digit code using instructions below Time Settings The system returns to Normal...
  • Page 18 ISEASYBK_08_18.pdf.docx ENGLISH EASYBKA - EASYBKR Auxiliary Auxiliary Ouput Aux. Time Settings Auxiliary Input Mode Activated On Relay (All times and delay are in seconds) 01 to 99 Aux. Relay Release Time REX-2 Valid Code or REX-2 N.O. Aux. Relay Toggles 01 to 99 Aux.
  • Page 19 ISEASYBK_08_18.pdf.docx ENGLISH EASYBKA - EASYBKR 16. Setting Fail Safe/Secure Operation and Lock Strike Release Time Enter Programming Mode Press "6" to enter Menu 6: GREEN the Mode LED will flash green. Construct the 4-digit code GREEN GREEN using instructions below: First Digit: 0 for Fail Secure, 1 for Fail Safe Second Digit: 0.
  • Page 20 ISEASYBK_08_18.pdf.docx ENGLISH EASYBKA - EASYBKR  Secondary Codes can only be enrolled to User Slot that already has a Primary Code enrolled but no Secondary Code.  Secondary Codes do not have to be unique, i.e. multiple users can all hold the same Secondary Code.
  • Page 21 ISEASYBK_08_18.pdf.docx ENGLISH EASYBKA - EASYBKR  If the selected slot has no Primary Code, the Mode will flash green, GREEN ORANGE indicating that the controller is ready to accept a Primary Code.  If the selected slot already has Primary...
  • Page 22 Secondary Code is valid the controller will beep three times and return to Normal Mode. (If the Secondary Code is invalid the controller will make a long beep and then the EASYBKA/R will continue to wait for a valid Secondary code to be entered).

  • Page 23: Deleting Primary And Secondary Codes Using The Standard Method

    If the Programming Code is valid, ORANGE will hear three beeps and the EASYBKA/R will return to Normal Mode (If the Programming Code is invalid, you will hear a long beep and the EASYBKA/R will return to Normal Mode).
  • Page 24 Lock Strike and Auxiliary Relay If the assignment code is valid the Mode LED will stop flashing and the EASYBKA/R is now waiting for another slot number. Press the "#" key to go to the next slot, press the "#" key twice to...

  • Page 25: Enabling Or Disabling The Built-In Keypad Heater

    20. Enabling or Disabling the built-in keypad heater The EASYBKA/R contains a built-in keypad heater. When is enabled the keypad heater will activate when the ambient temperature drops to approx. 3...

  • Page 26: Replacing A Lost Programming Code

    “0” to DISABLE the heater “1” to ENABLE the heater 21. Replacing a lost Programming Code NOTE: The EASYBKA/R must be in Normal Mode otherwise this will not work. Make sure that the Mode LED is green before proceeding Remove power...
  • Page 27 ISEASYBK_08_18.pdf.docx ENGLISH EASYBKA - EASYBKR You now have 15 seconds to use the default Normal/Secure Code 3838 in order to return to normal mode, where you may enter programming mode and enter a new Normal/ Secure Code 23. Return to Factory Default Settings and selection...
