INSTALLATION GUIDE
NI PS-14/15/16/17 Side Mount
Brackets

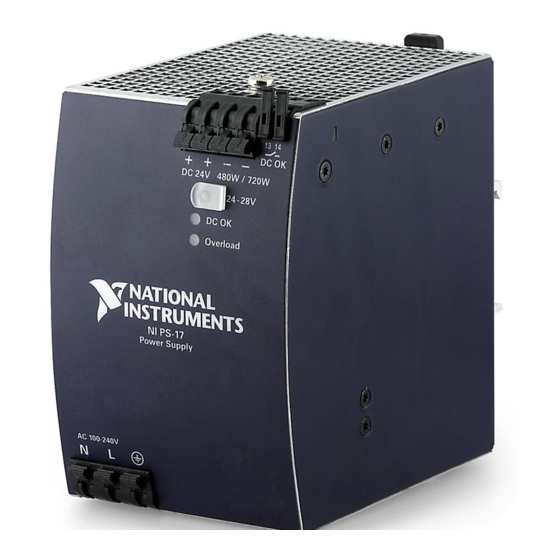

This document provides the installation procedure for the NI PS-14/15/16/17 Side Mount
Brackets. This accessory is used to mount NI PS-14/15/16/17 power supplies sideways to reduce
the installation depth.
Two side mounting options are possible:
• 35 mm DIN-Rail Mount
• Panel Mount

Bracket and Assembly Dimensions

This section provides bracket and assembly dimensions. Table 1 provides a summary of the
dimensions and weight of the overall assembly when a specific bracket set is mounted to a
specific power supply. The Unit column lists the available power supplies. The Bracket Set
column indicates the appropriate brackets to use with the specified power supply. The A column
provides dimensions from the front of the power supply to the rearmost mounting screw for the
assembly of power supply and brackets. The B column provides the total installation depth of
the assembly when mounted. The C column provides the depth of the power supply only. The
Length column provides the total length of the assembly. The Width column provides the width
of the mounting brackets. The Height column provides the height of the brackets only. The
Bracket Set Weight column provides the weight of the bracket set only.
Table 1. Bracket Set and Assembly Dimensions and Weight
Use
Bracket
Units Set
NI PS-14 199429-01
NI PS-15 199429-01
NI PS-16 199430-01
NI PS-17 199431-01
*
If the unit is panel mounted, the B dimension shows the required installation depth. If the unit is DIN-Rail
mounted, the total installation depth is the B dimension plus 6 mm plus the height of the DIN-Rail.
*
A B
89 mm 38 mm 32 mm
104 mm 38 mm 32 mm
104 mm 66 mm 60 mm
124 mm 88 mm 82 mm
C Length Width
145 mm 65 mm
145 mm 65 mm
145 mm 65 mm
145 mm 65 mm
Bracket
Set
Height Weight
37 mm 140 g
37 mm 140 g
63 mm 180 g
84.5 mm 205 g
